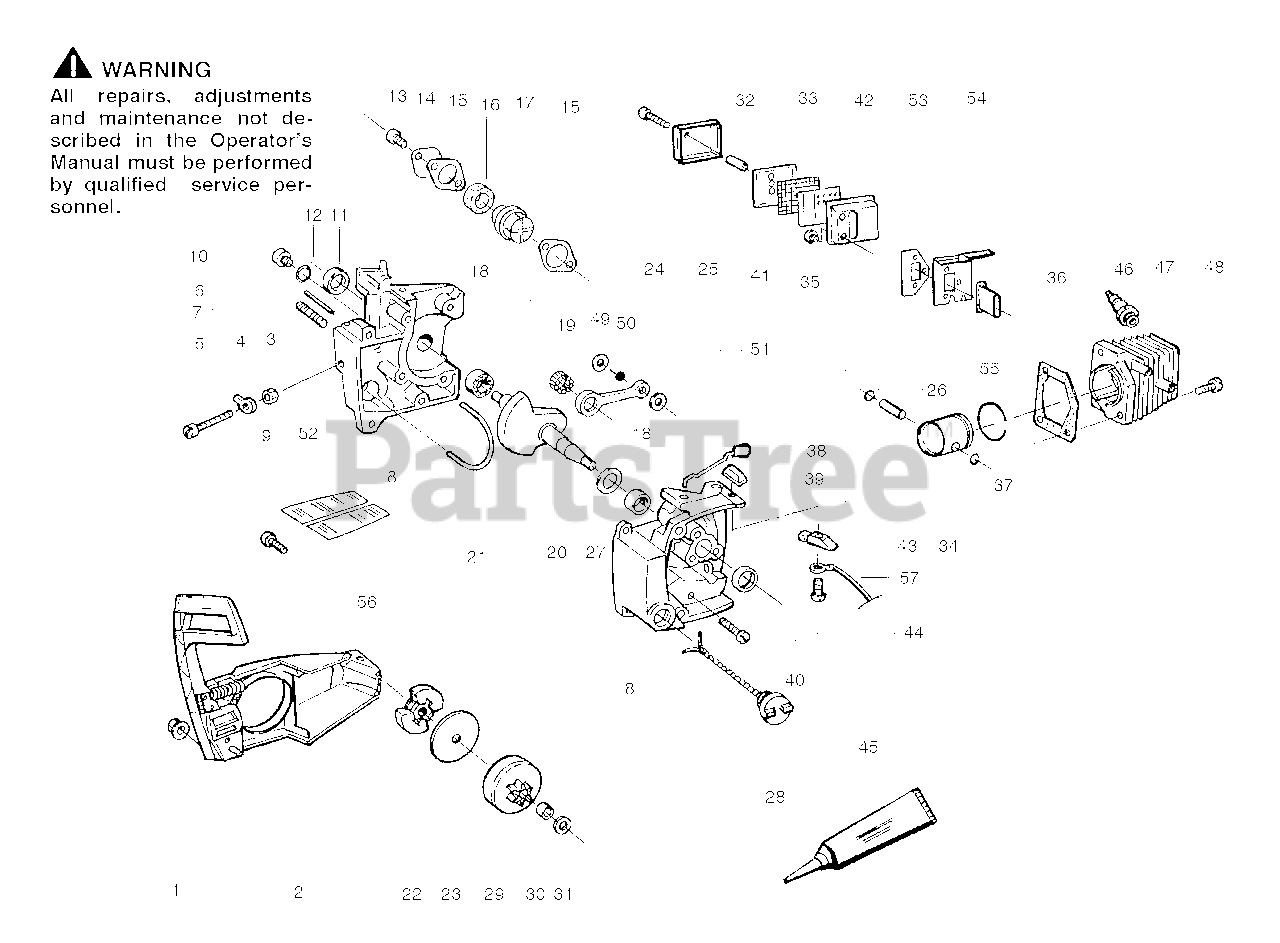

Arbor-Pro Chainsaw

Internal Power Unit Parts Diagram

  • Title

1

Poulan 530016282

Bar Mounting Nut

$

$

Not available

2

Poulan 952069320

Chain Brake Ass'y.

$

$

Not available

3

Poulan 534235901

Locknut
(Superseded to 530403094)

$3.99

$

Usually ships in 3-10 days

0

4

Poulan 530023064

Bar Adjust Pin

$8.99

$

Usually ships in 3-10 days

0

5

Poulan 530016256

Screw

$

$

Not available

6

Poulan 530036450

Oil Tank Vent Pin

$

$

Not available

7

Poulan 530015719

Bar Mounting Stud

$3.99

$

Usually ships in 3-10 days

0

8

Poulan 530069967

Kit-Crankcase Ass'y.

Note: (Incl. 3-7, 10-12, 18, 28 & 40)

$

$

Not available

9

Poulan 530015623

Screw

$3.99

$

Usually ships in 3-10 days

0

10

Poulan 530069142

Check Valve Kit

Note: (Incl. 12)

$

$

Not available

11

Poulan 530019059

Crankshaft Seal

$

$

Not available

12

Poulan 530019089

Check Valve Gasket

$

$

Not available

13

Poulan 530015476

Screw

$2.49

$

Usually ships in 3-10 days

0

14

Poulan 530023802

Oil Pump Cover

$

$

Not available

15

Poulan 530019091

Oil Pump Gasket

$

$

Not available

16

Poulan 530023801

Oil Filter

$

$

Not available

17

Poulan 530010195

Oil Pump Body Ass'y.

$

$

Not available

18

Poulan 530032029

Crankshaft Bearing

$10.99

$

In Stock, only 2 left!

0

19

Poulan 530032065

Roller Bearings

Note: (Incl. 12 bearings)

$

$

Not available

20

Poulan 530022172

Crankshaft

$

$

Not available

21

Poulan 530069216

Oil Discharge Line

$11.99

$

In Stock, Qty 20+

0

22

Poulan 530069193

Clutch Ass'y. Kit

$

$

Not available

23

Poulan 530069197

Clutch Washer Kit

$

$

Not available

24

Poulan 530015169

Screw

$5.99

$

Usually ships in 3-10 days

0

25

Poulan 530023795

Muffler Cover

$

$

Not available

26

Poulan 530023843

Piston Pin Retainer

$

$

Not available

27

Poulan 530023887

Thrust Washer

$

$

Not available

28

Poulan 530010444

Oil Cap Ass'y.

$

$

Not available

29

Poulan 530069166

Clutch Drum & Brg. Kit

$26.99

$

In Stock, only 1 left!

0

30

Poulan 530032079

Clutch Bearing

$

$

Not available

31

Poulan 530023519

Muffler Spacer

$3.99

$

In Stock, only 1 left!

0

32

Poulan 530023535

Spacer

$5.99

$

In Stock, only 1 left!

0

33

Poulan 530023796

Spark Arrestor Screen

$

$

Not available

34

Poulan 530069552

Piston Kit

Note: (Incl. 26, 37, & Pin)

$

$

Not available

35

Poulan 530001666

Screw

$

$

Not available

36

Poulan 530019237

Cylinder Gasket
(Superseded to 530069401)

$

$

Not available

37

Poulan 530037603

Piston Ring

$

$

Not available

38

Poulan 530023788

Knob Switch

$

$

Not available

39

Poulan 530023786

Ramp Switch

$

$

Not available

40

Poulan 530015986

Screw

$

$

Not available

41

Poulan 530023797

Muffler Baffle

$

$

Not available

42

Poulan 530038325

Muffler Body

$6.49

$

Usually ships in 3-10 days

0

43

Poulan 530053688

Switch Clamp Insulator

$2.49

$

Usually ships in 3-10 days

0

44

Poulan 530015235

Screw

$

$

Not available

45

Poulan 530030054

Crankcase Sealant

$

$

Not available

46

Poulan 952030150

Spark Plug (CJ-7Y)

$3.49

$

In Stock, Qty 20+

0

47

Poulan 530012172

Cylinder

$

$

Not available

48

Poulan 530015239

Screw

$2.49

$

Usually ships in 3-10 days

0

49

Poulan 530015486

Washer

$

$

Not available

50

Poulan 530032075

Bearing Rod Top

$

$

Not available

51

Poulan 530010474

Connecting Rod Ass'y. Kit

Note: (Incl. 19, 49 & 50)

$

$

Not available

52

Poulan 530047952

Kickback Decal

$

$

Not available

53

Poulan 530019255

Gasket-Muffler

$3.99

$

Usually ships in 3-10 days

0

54

Poulan 530038643

Muffler-Back Plate

$

$

Not available

55

Poulan 530037652

Port-Insulator

$

$

Not available

56

Poulan 530053689

On/Off Decal Warning

$

$

Not available

57

Poulan 530039116

Switch Lead Wire

$

$

Not available

Poulan 530087483

Operator Manual

Note: Not shown

$

$

Not available

Poulan 530031135

Scrench
(Superseded to 530031163)

Note: Not shown

$9.99

$

In Stock, Qty 12

0
