S 22675 (7800828) - Snapper 22" Walk-Behind Mower, 6.75hp Handles & Controls, Push Parts Diagram

22" Walk-Behind Mower, 6.75hp

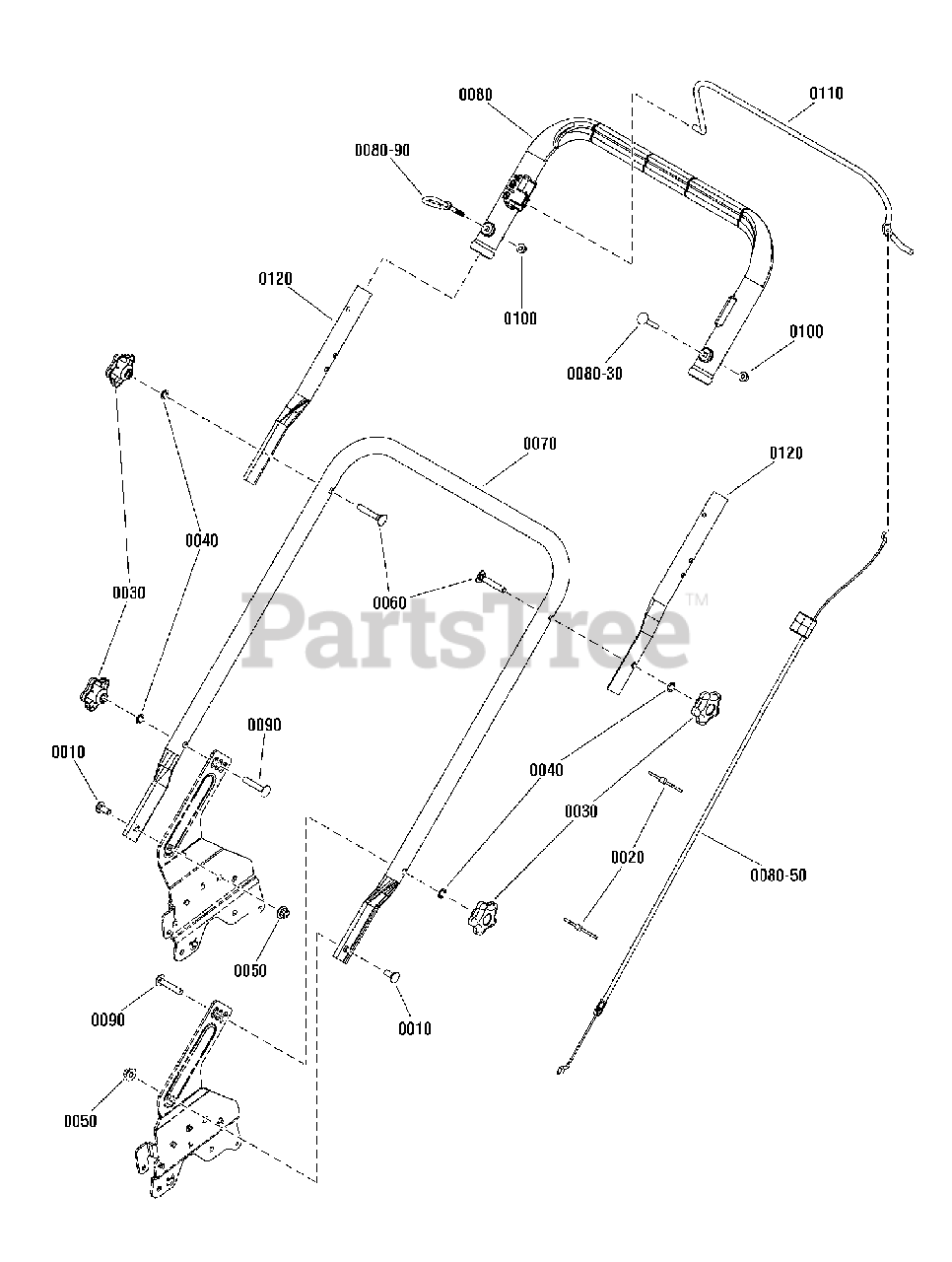

Handles & Controls, Push Parts Diagram

  • Title

0010

Snapper 1931333

BOLT, Carriage 5/16-18X0.750 G5 BLK
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

0020

Snapper 7024649

WIRE TIE, 11"
(Superseded to 7024649YP)

$5.49

$

Usually ships in 2-12 days

0

0030

Snapper 7105085

KNOB, Handle, 5 Prong, 5/16-18
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

0040

Snapper 7090391

WASHER, Internal Tooth Lock, 5/16"
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

0050

Snapper 7090951

NUT, Hex Lock, 5/16C BZ
(Superseded to 704001)

$4.49

$

In Stock, Qty 13

0

0060

Snapper 7091189

BOLT, Carriage, 5/16C X 2 GR2
(Superseded to 703059)

$4.49

$

In Stock, Qty 12

0

0070

Snapper 7301189BH

HANDLE, Lower, 1" Dia., WBM
(Superseded to 7301189BHYP)

$176.99

$

Usually ships in 2-12 days

0

0080

Snapper 7101405

HANDLE, Upper, Plastic, Snapper Push
(Superseded to 7101405YP)

$43.99

$

Usually ships in 2-12 days

0

0080-30

Snapper 7090015

BOLT, Carriage, 1/4C X1-3/4 GR2 YZ
(Superseded to 7090015YP)

$3.99

$

Usually ships in 2-12 days

0

0080-50

Snapper 7101395

CABLE, Bail, 22" WBM, 51.13"
(Superseded to 7101395YP)

$16.99

$

In Stock, only 1 left!

0

0080-90

Snapper 7101410

GUIDE, Rope, 1/4-20 x 1.8"
(Superseded to 7101410YP)

$6.49

$

In Stock, only 1 left!

0

0090

Snapper 1931338

BOLT, Carriage 5/16-18X1.750 G5 FT
(Superseded to 703175)

$3.99

$

In Stock, only 2 left!

0

0100

Snapper 2860694

NUT, Hex Flange, 1/4-20 ESNA YZ
(Superseded to 703463)

$4.49

$

In Stock, Qty 20+

0

0110

Snapper 7101321BH

BAIL, Plastic Handle, WBM
(Superseded to 7101321YP)

$63.99

$

In Stock, only 1 left!

0

0120

Snapper 7300649BH

HANDLE, Connecting, 21" / 22" WBM
(Superseded to 7300649BHYP)

$26.99

$

Usually ships in 2-12 days

0
