S 22675 (7800828) - Snapper 22" Walk-Behind Mower, 6.75hp Engine & Blade Parts Diagram

22" Walk-Behind Mower, 6.75hp

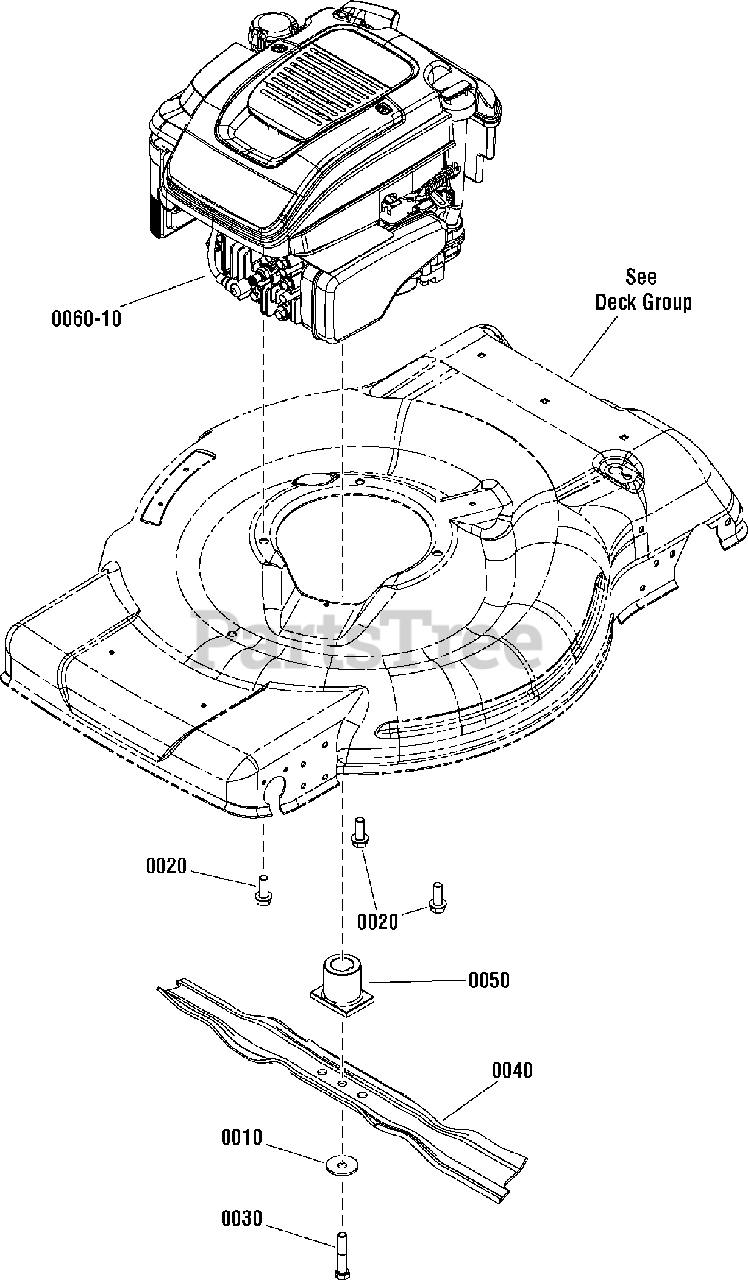

Engine & Blade Parts Diagram

  • Title
0010

Snapper 7012063

WASHER, Cone, .406" ID, 1.40" OD
(Superseded to 703963)

$6.99

$

In Stock, only 2 left!

0

0020

Snapper 7090324

SCREW, Hex Washer Self Tapping, 3/8C X 1 BZ
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0

0030

Snapper 7090167

SCREW, Hex Head, 3/8F X 2 GR5
(Superseded to 7090167SM)

$3.99

$

Usually ships in 2-12 days

0

0040

Snapper 7103288

BLADE, Wave, 22"
(Superseded to 7103288YP)

$29.99

$

In Stock, Qty 8

0

0050

Snapper 7101414

HUB, Blade, 21" WBM, RD, 2 Position
(Superseded to 7101414YP)

$16.99

$

In Stock, only 1 left!

0

0060-10

Snapper 126M02-0675-F3

* ENGINE, B&S, 675 SER, B3, X-Spec, 126M02-0675-F3

$199.99

$

Usually ships in 2-12 days

0
