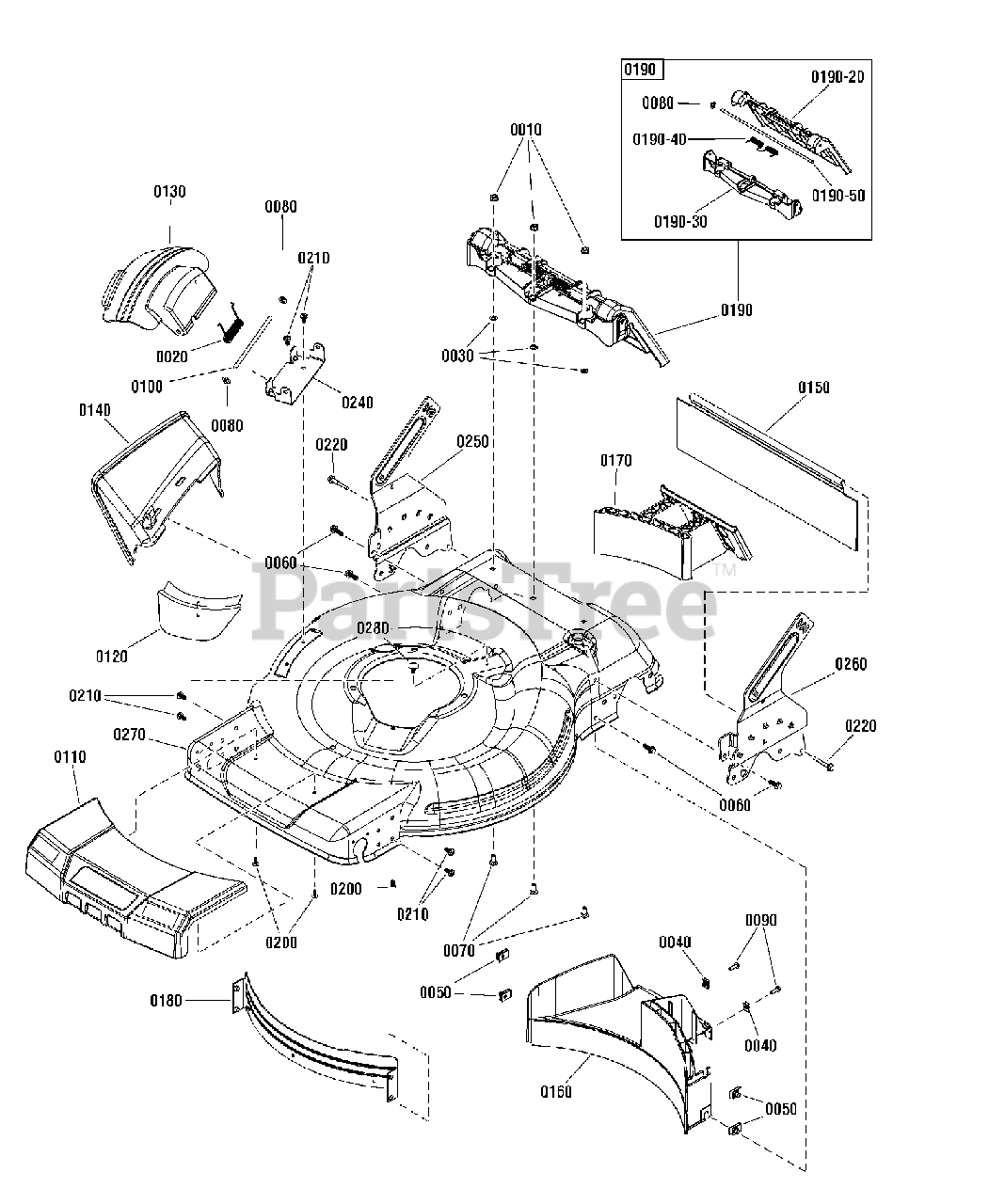

S 22675 (7800828) - Snapper 22" Walk-Behind Mower, 6.75hp Deck Assembly, Push Parts Diagram

22" Walk-Behind Mower, 6.75hp

Deck Assembly, Push Parts Diagram

  • Title

0010

Snapper 722398

NUT, Flange Lock, 1/4-20 YZ GR1
(Superseded to 7001278MA)

$

$

Not available

0020

Snapper 722507

SPRING, Torsion
(Superseded to 166X38MA)

$4.99

$

In Stock, only 2 left!

0

0030

Snapper 1960518

NUT, Push (For .250 DIA Stud)
(Superseded to 703826)

$3.49

$

In Stock, Qty 20+

0

0040

Snapper 1960593

NUT, Retainer, Speed #10-24 W/Extrusion
(Superseded to 1960593SM)

$4.99

$

Usually ships in 2-12 days

0

0050

Snapper 7023295

U-NUT, 1/4C
(Superseded to 705876)

$4.49

$

In Stock, Qty 20+

0

0060

Snapper 7090699

BOLT, Hex Flange Lock, 1/4C X 3/4 GR5 ZP
(Superseded to 1935450SM)

$4.49

$

Usually ships in 2-12 days

0

0070

Snapper 7090803

BOLT, Flat Head Carriage, 1/4C X 5/8 GR5 BZ
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

0080

Snapper 7091020

NUT, Push, 1/4 BZ
(Superseded to 7091020YP)

$4.49

$

In Stock, Qty 20+

0

0090

Snapper 7091075

SCREW, Hex Washer Self Tapping, #10C X 5/8 GR5 BZ
(Superseded to 7091075SM)

$4.49

$

In Stock, Qty 5

0

0100

Snapper 7101067

ROD, Pivot
(Superseded to 7101067YP)

$6.99

$

Usually ships in 2-12 days

0

0110

Snapper 7103295

COVER, Nose
(Superseded to 7600191YP)

$37.99

$

Usually ships in 2-12 days

0

0120

Snapper 7103296

SHIELD, Debris, Front
(Superseded to 7103296YP)

$8.99

$

In Stock, only 2 left!

0

0130

Snapper 7103298

COVER, Mulching
(Superseded to 7103298YP)

$

$

Not available

0140

Snapper 7103299

CHUTE, Side Discharge, WBM, 22"
(Superseded to 7103299YP)

$35.99

$

In Stock, only 1 left!

0

0150

Snapper 7103323

GUARD, Rear, 22"
(Superseded to 7103323YP)

$9.49

$

In Stock, only 1 left!

0

0160

Snapper 7103452

BAFFLE, Rear, Front Wheel Drive, WBM
(Superseded to 7103452YP)

$51.99

$

Usually ships in 2-12 days

0

0170

Snapper 7103453

PLUG, Mulching, 22" Deck
(Superseded to 7103453YP)

$32.99

$

In Stock, only 3 left!

0

0180

Snapper 7301020

BAFFLE, Front, Galv.
(Superseded to 7301020YP)

$50.99

$

In Stock, only 1 left!

0

0190

Snapper 7501541

DOOR ASSEMBLY, 22" WBM
(Superseded to 7501541YP)

$45.99

$

Usually ships in 2-12 days

0

0190-20

DOOR, Rear Discharge (N/A Use 7501541)

$

$

Not available

0190-30

Snapper 7103292

HINGE, Door, Rear Discharge
(Superseded to 7103292YP)

$19.99

$

In Stock, only 1 left!

0

0190-40

Snapper 7103309

SPRING, Torsion, Rear Door
(Superseded to 7103309YP)

$5.49

$

In Stock, only 1 left!

0

0190-50

Snapper 7103322

ROD, Pivot, Rear Door
(Superseded to 7103322YP)

$3.99

$

Usually ships in 2-12 days

0

0200

Snapper 7900018

SCREW, Round Washer Head, Torx, HI-LO 4.81x1.59x13MM
(Superseded to 703834)

$4.49

$

In Stock, only 4 left!

0

0210

Snapper 7900067

SCREW, Pan Head Self Tapping, Torx, 1/4-20 X .550"
(Superseded to 703961)

$4.49

$

In Stock, Qty 20+

0

0220

Snapper 7900073

BOLT, Drag Shield, 1/4-20 X 1.5
(Superseded to 7900073YP)

$3.49

$

Usually ships in 2-12 days

0

0240

Snapper 7300855BM

BRACKET, Chute
(Superseded to 7300855BMYP)

$9.99

$

Usually ships in 2-12 days

0

0250

Snapper 7301088BH

BRACKET, Lower Handle, 22" WBM, RH

$

$

Currently unavailable

0260

Snapper 7301089BH

BRACKET, Lower Handle, 22" WBM, LH

$

$

Currently unavailable

0270

Snapper 7301254D

DECK, 22", RWD

$

$

Currently unavailable

0280

Snapper 720182

PLUG, Panel, .25 X .61L, BLACK
(Superseded to 0193X1MA)

$3.99

$

In Stock, only 1 left!

0
