S 21E (UT-30042-A) - Homelite 21" Superbagger Walk-Behind Mower Mower Parts Diagram

21" Superbagger Walk-Behind Mower

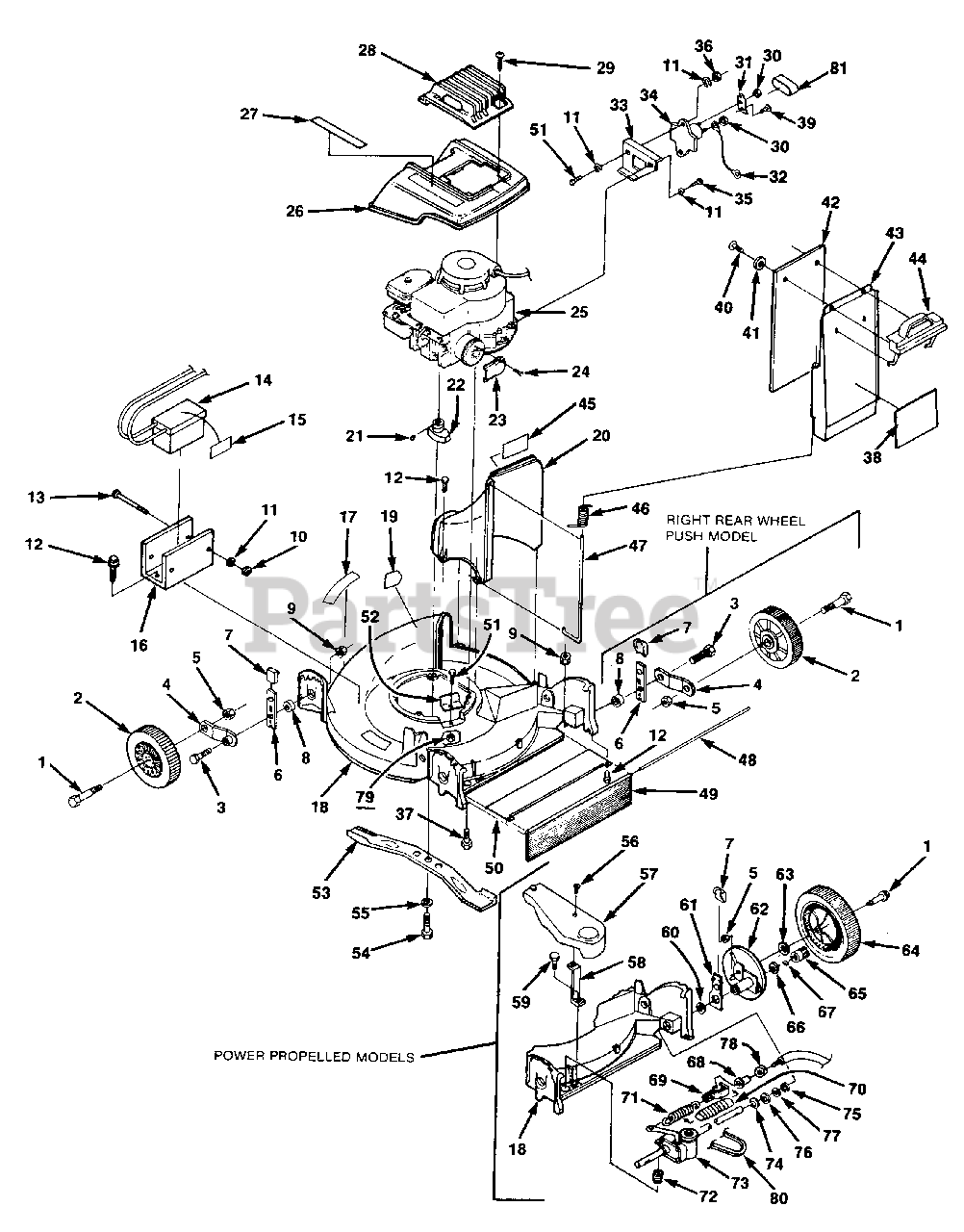

Mower Parts Diagram

  • Title

1

Homelite JA359181

BOLT- Axle

$7.49

$

Usually ships in 3-7 days

0

2

Homelite JA121956

WHEEL & TIRE ASSY.
(Superseded to UP06670)

$

$

Not available

3

Homelite JA359180

BOLT

$

$

Not available

4

Homelite JA336314

WHEEL- Adjuster arm
(Superseded to GP031455)

$

$

Currently unavailable

5

Homelite JA445776

NUT

$

$

Currently unavailable

6

Homelite JA990087

SPRING
(Superseded to GP586051)

$38.99

$

Usually ships in 3-7 days

0

7

Homelite JA336623

KNOB
(Superseded to UP06697)

$

$

Not available

8

Homelite JA358362

SPACER

$

$

Not available

9

Homelite JA445775

NUT- Flange
(Superseded to UP06674)

$

$

Not available

10

Homelite JA443102

NUT
(Superseded to JA993730)

Note: (S21E & S21P4E)

$

$

Not available

11

Homelite JA446130

WASHER

Note: (S21E & S21P4E)

$

$

Not available

12

Homelite JA408878

SCREW

Note: (S21 & S21P & S21P4)

$

$

Not available

Homelite JA408878

SCREW

Note: (S21E & S21P4E)

$

$

Not available

13

Homelite JA400128

BOLT

Note: (S21E & S21P4E)

$

$

Currently unavailable

14

Homelite JA991450

BATTERY- 6 Volt

Note: (S21E & S21P4E)

$

$

Currently unavailable

15

Homelite JA994330

DECAL- Battery

Note: (S21 & S21P4E)

$

$

Currently unavailable

16

Homelite JA992520

HOLDER- Battery

Note: (S21E & S21P4E)

$

$

Currently unavailable

17

Homelite JA994190

DECAL- Product ID

Note: (S21)

$

$

Currently unavailable

Homelite JA994170

DECAL- Product ID

Note: (S21E)

$

$

Currently unavailable

18

Homelite JA990175

DECK ASSEMBLY

Note: (Includes decals)

$

$

Currently unavailable

19

Homelite JA339460

DECAL- Warning

$

$

Not available

20

Homelite JA395075

CHUTE
(Superseded to JA991283)

$

$

Currently unavailable

21

Homelite JA463107

KEY

$

$

Not available

22

Homelite JA241708

ADAPTER- Blade

$

$

Currently unavailable

23

Homelite JA359256

DEFLECTOR

$

$

Not available

24

Homelite JA408880

SCREW

$

$

Currently unavailable

25

Homelite JA995890

ENGINE- 3.5

Note: (S21, S21P & S21P4)

$

$

Currently unavailable

Homelite JA990661

ENGINE- 3.5 HP

Note: (S21E)

$

$

Currently unavailable

26

Homelite JA993150

COWLING- Engine

$

$

Currently unavailable

27

Homelite JA339570

DECAL- Engine

$

$

Currently unavailable

28

Homelite JA993140

GRILLE

$

$

Not available

29

Homelite JA409035

SCREW

$

$

Currently unavailable

30

Homelite JA443802

NUT-

Note: (S21E & S21P4E)

$

$

Currently unavailable

31

Homelite JA990614

TERMINAL- Adaptor

Note: (S21E & S21P4E)

$

$

Currently unavailable

32

Homelite JA990615

LEAD- Electrical

Note: (S21E & S21P4E)

$

$

Currently unavailable

33

Homelite JA990613

BRACKET

Note: (S21E & S21P4E)

$

$

Currently unavailable

34

Homelite JA990617

RELAY

Note: (S21E & S21P4E)

$

$

Currently unavailable

35

Homelite JA409908

SCREW

Note: (S21E & S21P4E)

$3.99

$

Usually ships in 3-7 days

0

36

Homelite JA443102

NUT- 1/4-20 hex
(Superseded to JA993730)

$

$

Not available

37

Homelite JA408876

BOLT- Engine Mounting

$

$

Not available

38

Homelite JA339335

DECAL- Door

$

$

Currently unavailable

39

Homelite JA409704

SCREW #10-16 x 1/2

Note: (S21E & S21P4E)

$

$

Not available

40

Homelite JA408881

SCREW

$

$

Not available

41

Homelite JA453023

WASHER
(Superseded to 678013001)

$1.99

$

Usually ships in 3-7 days

0

42

Homelite JA359283

DAMP- Flap

$

$

Not available

43

Homelite JA130693

DOOR- Chute

$

$

Currently unavailable

44

Homelite JA390154

HANDLE

$8.49

$

Usually ships in 3-7 days

0

45

Homelite JA990148

DECAL- 4 HP

Note: (S21P4) & (S21P4E) Not used on this product

$

$

Currently unavailable

46

Homelite JA359258

SPRING
(Superseded to JA992947)

$

$

Not available

47

Homelite JA359167

PIN

$

$

Not available

48

Homelite JA359170

ROD- Drag flap

$

$

Currently unavailable

49

Homelite JA359257

FLAP- Drag

$

$

Currently unavailable

50

Homelite JA336619

COVER
(Superseded to JA991284)

$

$

Currently unavailable

51

Homelite JA400104

SCREW
(Superseded to UP03379)

$

$

Not available

52

Homelite JA375450

COVER- Belt opening

$

$

Currently unavailable

53

Homelite JA390162

BAR- 21

$

$

Currently unavailable

54

Homelite JA401188

SCREW

$

$

Not available

55

Homelite JA446148

WASHER

$

$

Not available

56

Homelite JA408879

SCREW

Note: Not used on this product

$

$

Currently unavailable

57

Homelite JA392514

COVER- Drive

Note: Not used on this product

$

$

Currently unavailable

58

Homelite JA359260

SUPPORT

Note: Not used on this product

$

$

Currently unavailable

59

Homelite JA409252

SCREW

Note: Not used on this product

$

$

Currently unavailable

60

Homelite JA359141

SPACER

Note: Not used on this product

$

$

Not available

61

Homelite JA162044

SPRING

Note: Not used on this product

$

$

Currently unavailable

62

Homelite JA990074

DRIVE WHEEL SUPPORT ASSY.
(Superseded to GP095304)

Note: Not used on this product

$

$

Not available

63

Homelite JA359500

WASHER

Note: Not used on this product

$

$

Not available

64

Homelite JA501396

WHEEL & TIRE
(Superseded to JA993975)

Note: Not used on this product

$

$

Not available

65

Homelite JA204244

PINION (R.H.)

Note: Not used on this product

$

$

Not available

Homelite JA204245

PINION (L.H.)

Note: Not used on this product

$

$

Currently unavailable

66

Homelite JA351077

WASHER

Note: Not used on this product

$

$

Not available

67

Homelite JA313659

PAWL- Pinion

Note: Not used on this product

$

$

Not available

68

Homelite JA990142

CONNECTOR

Note: Not used on this product

$

$

Currently unavailable

69

Homelite JA995530

CLEVIS

Note: Not used on this product

$

$

Not available

70

Homelite JA359270

COVER- Spring

Note: Not used on this product

$

$

Currently unavailable

71

Homelite JA375748

SPRING- Extension

Note: Not used on this product

$

$

Not available

72

Homelite JA359266

SPRING- Compression

Note: Not used on this product

$

$

Not available

73

Homelite JA990545

GEAR REDUCER ASSY.

Note: Not used on this product

$

$

Currently unavailable

74

Homelite JA458451

RING- Eaton

Note: Not used on this product

$2.99

$

Usually ships in 3-7 days

0

75

Homelite JA454037

WASHER

Note: Not used on this product

$

$

Not available

76

Homelite JA353406

WASHER

Note: Not used on this product

$

$

Not available

77

Homelite JA328147

WASHER

$

$

Not available

78

Homelite JA444310

NUT
(Superseded to 81092)

Note: Not used on this product

$

$

Not available

79

Homelite JA444708

NUT

$

$

Currently unavailable

80

Homelite JA390164

BELT

Note: Not used on this product

$

$

Not available

81

UNKNOWN

$

$

Not available
