S 211 (7800166) - Snapper 21" Walk-Behind Mower, 6.5hp REAR WHEELS (Push) Parts Diagram

21" Walk-Behind Mower, 6.5hp

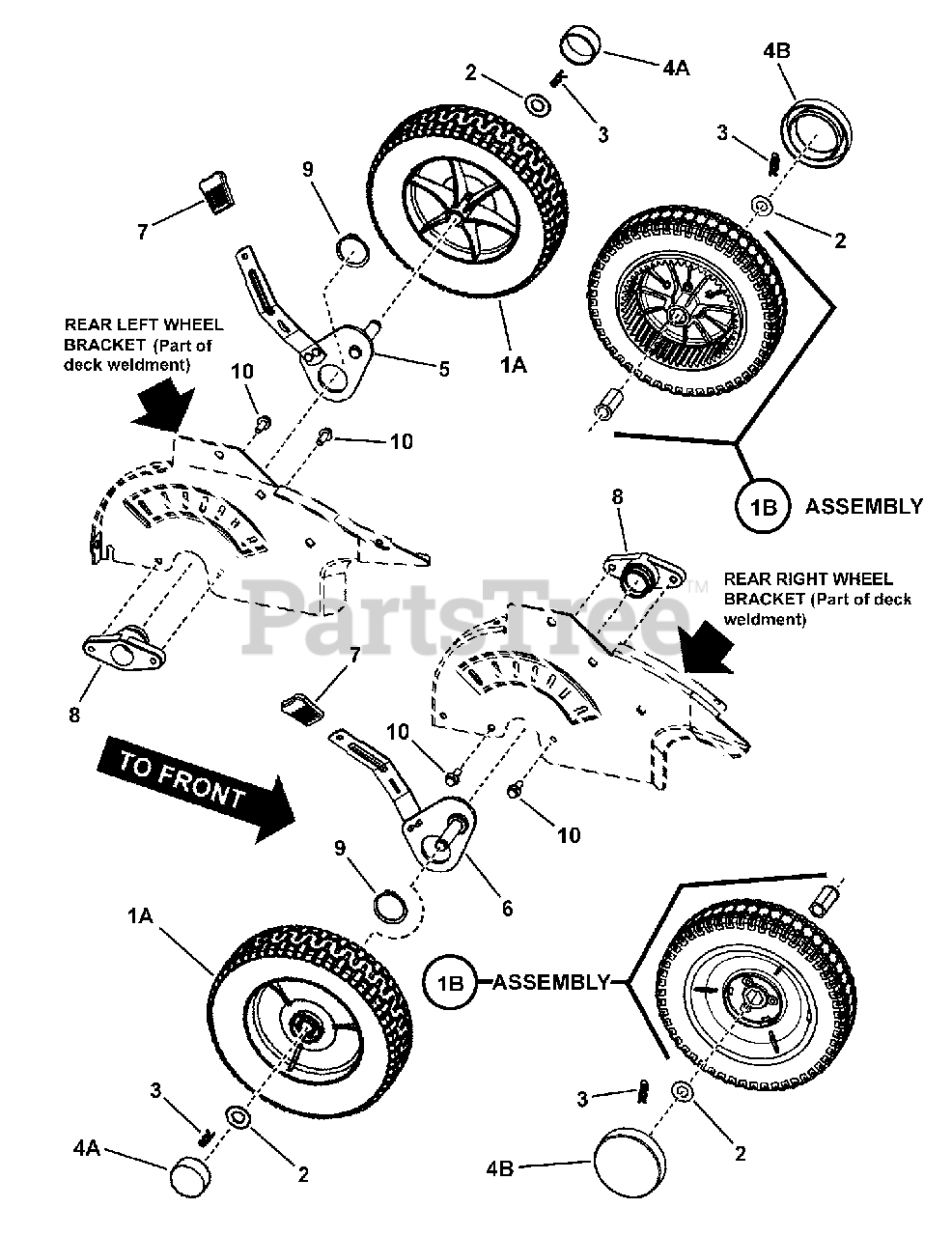

REAR WHEELS (Push) Parts Diagram

  • Title

1A

Snapper 7100071

WHEEL, 9" x 2", LS Tread, w/1-5/8" Hub, Gray
(Superseded to 7104781YP)

$40.99

$

In Stock, only 1 left!

0

1B

Snapper 7101104

ASSY., 9" x 2" Gear Wheel, Double Bar II Tread & Nylon Bushing
(Superseded to 7104781YP)

Note: includes nylon bushing (p/n 7024541)

$40.99

$

In Stock, only 1 left!

0

2

Snapper 7091192

WASHER, 1/2" Flat
(Superseded to 7091192SM)

$3.99

$

Usually ships in 2-12 days

0

3

Snapper 7091193

COTTER, Hairpin
(Superseded to 7091193YP)

$5.99

$

Usually ships in 2-12 days

0

4A

Snapper 7100088

HUB CAP, 1-3/8" Diameter (black)
(Superseded to 020107MA)

Note: used with wheel 1A

$4.49

$

Usually ships in 2-12 days

0

4B

Snapper 7100114

HUB CAP, 3-1/4" Diameter (black)
(Superseded to 7100114YP)

Note: used with wheel 1B

$3.49

$

Usually ships in 2-12 days

0

5

Snapper 7078235

ASSEMBLY, Axle Arm, Left Rear
(Superseded to 7078235YP)

$84.99

$

Usually ships in 2-12 days

0

6

Snapper 7078236

ASSEMBLY, Axle Arm, Right Rear
(Superseded to 7078236YP)

$65.99

$

In Stock, only 1 left!

0

7

Snapper 7100633

GRIP, Height Latch
(Superseded to 7103793YP)

Note: replaces 7027702 (voided)

$4.49

$

In Stock, Qty 9

0

8

Snapper 7078214

HOUSING, Axle Bearing
(Superseded to 7078214YP)

$

$

Not available

9

Snapper 7900010

SNAP RING, 1-3/8"
(Superseded to 7900010YP)

Note: Truarc 5100-137

$4.49

$

Usually ships in 2-12 days

0

10

Snapper 7090699

BOLT, 1/4-20 x 3/4" Hex Flange Lock
(Superseded to 1935450SM)

$4.49

$

Usually ships in 2-12 days

0
