S 21 ZSM - Lawn-Boy Walk-Behind Mower (SN: K00000001 - K99999999) (1991) HANDLE GROUP MODELS S21ZSM & S21ZSR Parts Diagram

Walk-Behind Mower

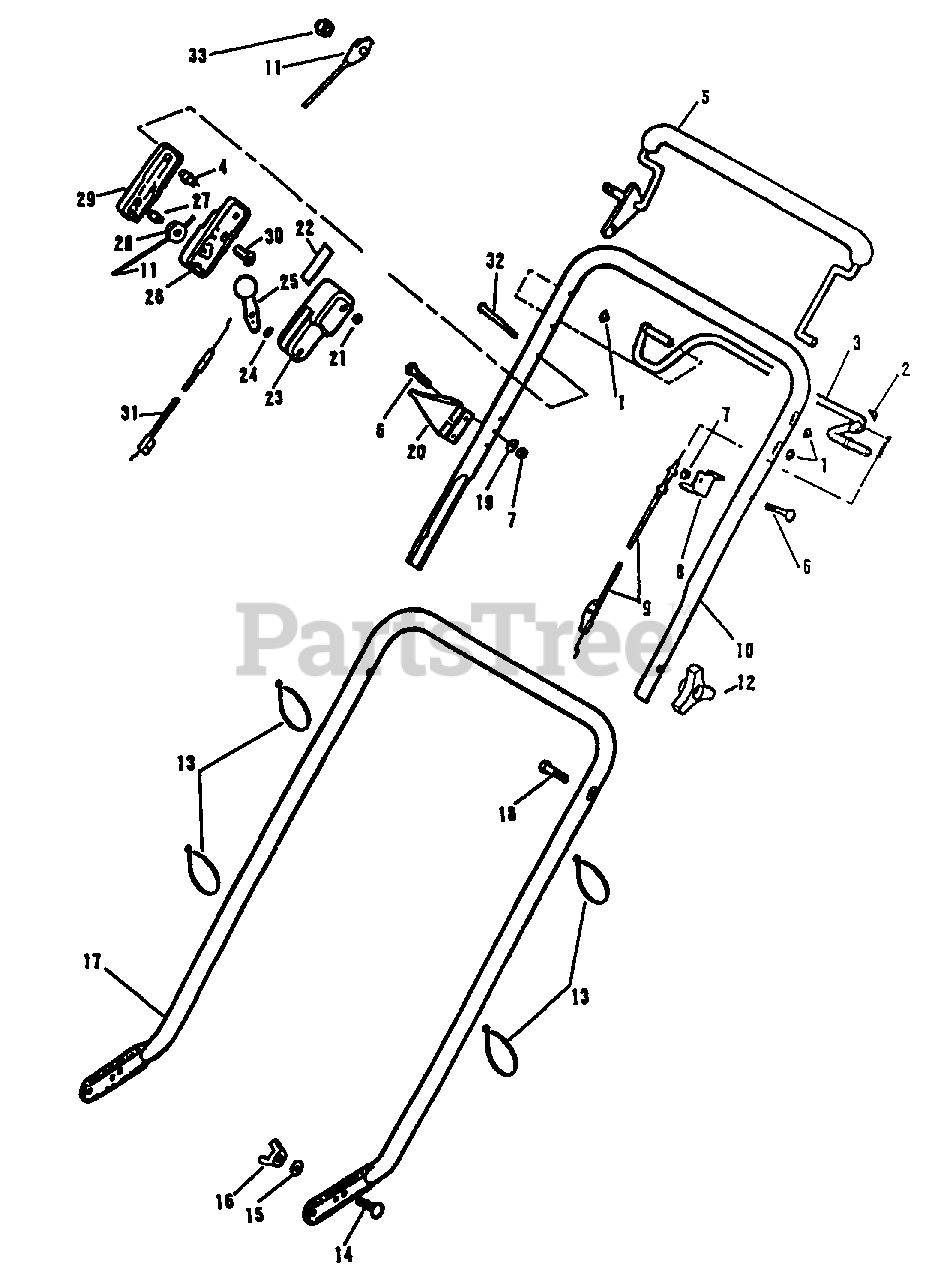

HANDLE GROUP MODELS S21ZSM & S21ZSR Parts Diagram

  • Title

1

Lawn-Boy 605546

Palnut
(Superseded to 32112-11)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 6

0

2

Lawn-Boy 609975

Palnut

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

3

Lawn-Boy 684556

Self Propel Bail

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

4

Lawn-Boy 611541

Column

Note: Important Note: Replacement parts may not always be available in matching colors.

$12.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 683478

Control Lever Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$138.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 611233

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

7

Lawn-Boy 602315

Nut

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

8

Lawn-Boy 146084

Conduit Anchor

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

9

Lawn-Boy 153730

Control Cable Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

10

Lawn-Boy 614242

Handle Section-Top
(Superseded to 614516)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

11

Lawn-Boy 683943

Engine Control Cable

Note: Important Note: Replacement parts may not always be available in matching colors.

$106.99

$

In Stock, only 2 left!

0

12

Lawn-Boy 614243

Handle Knob
(Superseded to 98-7134)

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 16

0

13

Lawn-Boy 614249

Tie Strap

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 6

0

14

Lawn-Boy 800358

Bolt-Handle to Handle Bracket
(Superseded to 3230-22)

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, only 2 left!

0

15

Lawn-Boy 146258

Washer
(Superseded to 3253-4)

Note: Important Note: Replacement parts may not always be available in matching colors.

$0.99

$

In Stock, Qty 20+

0

16

Lawn-Boy 145577

Wing Nut

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 614241

Handle Section-Lower

Note: Important Note: Replacement parts may not always be available in matching colors.

$166.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 145498

Screw
(Superseded to 614697)

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, Qty 13

0

19

Lawn-Boy 602945

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

20

Lawn-Boy 153254

Rope Guide Assembly
(Superseded to 682684)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

21

Lawn-Boy 611258

Nut

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

22

Lawn-Boy 612698

Decal-Throttle Control

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

23

Lawn-Boy 612634

Throttle Case-Inner

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

24

Lawn-Boy 612586

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, only 4 left!

0

25

Lawn-Boy 683663

Lever and Knob Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

26

Lawn-Boy 612633

Throttle Case-Center

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

27

Lawn-Boy 611542

Pin

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

28

Lawn-Boy 612564

Pulley

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.49

$

Usually ships in 3-6 days

0

29

Lawn-Boy 611777

Control Case-Outer

Note: Important Note: Replacement parts may not always be available in matching colors.

$27.99

$

In Stock, only 1 left!

0

30

Lawn-Boy 611543

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, Qty 6

0

31

Lawn-Boy 612567

Throttle Cable

Note: Important Note: Replacement parts may not always be available in matching colors.

$83.99

$

In Stock, only 2 left!

0

32

Lawn-Boy 611799

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.99

$

Usually ships in 3-6 days

0

33

Lawn-Boy 612168

Acorn Nut

Note: Important Note: Replacement parts may not always be available in matching colors.

$17.99

$

Usually ships in 3-6 days

0
