S 21 ZPM - Lawn-Boy Walk-Behind Mower (SN: K00000001 - K99999999) (1991) HOUSING AND SHROUD GROUP MODELS S21ZPM & S21ZPR Parts Diagram

Walk-Behind Mower

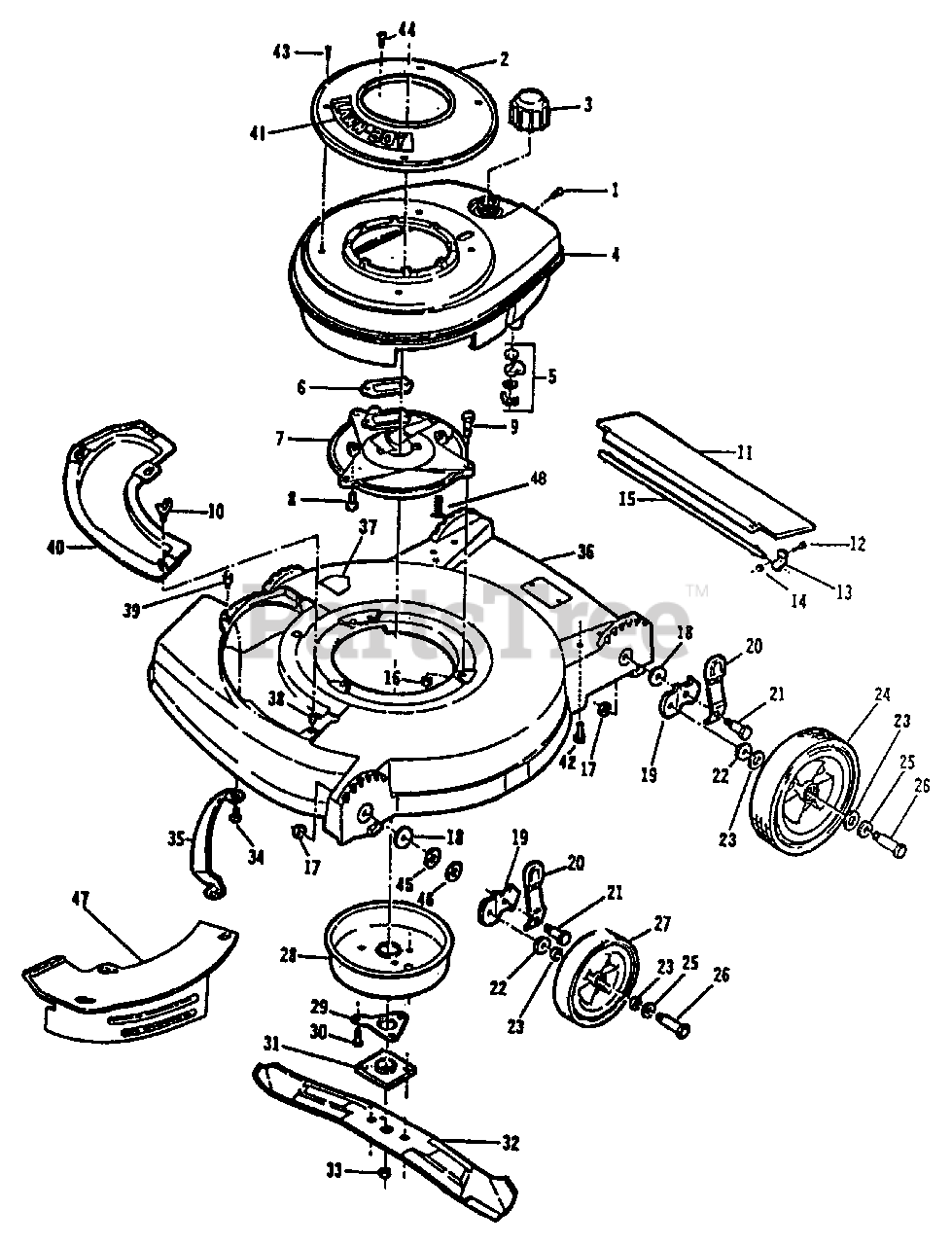

HOUSING AND SHROUD GROUP MODELS S21ZPM & S21ZPR Parts Diagram

  • Title

1

Lawn-Boy 608997

Screw

Note: Important Note: Replacement Parts may not always be available in matching colors.

$1.99

$

In Stock, only 2 left!

0

2

Lawn-Boy 684570

Starter Base and Nut Assembly

Note: Important Note: Replacement Parts may not always be available in matching colors.

$

$

Not available

3

Lawn-Boy 682755

Fuel Cap

Note: Important Note: Replacement Parts may not always be available in matching colors.

$21.99

$

Usually ships in 3-6 days

0

Lawn-Boy 607213

Gasket

Note: Important Note: Replacement Parts may not always be available in matching colors. NOTE: Parts shown with bullet included with assembly above.

$1.99

$

In Stock, Qty 20+

0

Lawn-Boy 609150

Baffle

Note: Important Note: Replacement Parts may not always be available in matching colors. NOTE: Parts shown with bullet included with assembly above.

$5.49

$

In Stock, Qty 11

0

4

Lawn-Boy 683916

Shroud-Engine
(Superseded to 16-5539)

Note: Important Note: Replacement Parts may not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 681818

Fuel Shut-Off Assembly

Note: Important Note: Replacement Parts may not always be available in matching colors. NOTE: Parts shown with bullet included with assembly above.

$

$

Not available

6

Lawn-Boy 609420

Gasket-Exhaust
(Superseded to 93-1233)

Note: Important Note: Replacement Parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 5

0

7

Lawn-Boy 611802

Plate-Muffler

Note: Important Note: Replacement Parts may not always be available in matching colors.

$243.99

$

In Stock, only 1 left!

0

8

Lawn-Boy 607601

Screw-Muffler Plate to Block

Note: Important Note: Replacement Parts may not always be available in matching colors.

$3.99

$

In Stock, only 2 left!

0

9

Lawn-Boy 611774

Screw-Muffler Plate to Housing

Note: Important Note: Replacement Parts may not always be available in matching colors.

$3.99

$

In Stock, only 2 left!

0

10

Lawn-Boy 606733

Wing Screw

Note: Important Note: Replacement Parts may not always be available in matching colors.

$8.99

$

In Stock, Qty 6

0

11

Lawn-Boy 611015

Shield-Trailing

Note: Important Note: Replacement Parts may not always be available in matching colors.

$

$

Not available

12

Lawn-Boy 609891

Screw
(Superseded to 700138)

Note: Important Note: Replacement Parts may not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 608161

Clamp

Note: Important Note: Replacement Parts may not always be available in matching colors.

$10.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 602315

Nut

Note: Important Note: Replacement Parts may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

15

Lawn-Boy 608174

Rod-Trailing Shield

Note: Important Note: Replacement Parts may not always be available in matching colors.

$

$

Not available

16

Lawn-Boy 608311

Nut-Muffler Plate to Housing

Note: Important Note: Replacement Parts may not always be available in matching colors.

$2.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 603773

Nut-Wheel Height Adjust

Note: Important Note: Replacement Parts may not always be available in matching colors.

$2.99

$

In Stock, only 2 left!

0

18

Lawn-Boy 608834

Washer-Wheel Height Adjust

Note: Important Note: Replacement Parts may not always be available in matching colors.

$15.99

$

In Stock, only 2 left!

0

19

Lawn-Boy 608833

Bracket-Wheel Height Adjust
(Superseded to 608833-03)

Note: Important Note: Replacement Parts may not always be available in matching colors.

$22.99

$

In Stock, only 2 left!

0

20

Lawn-Boy 153444

Knob and Spring Assembly

Note: Important Note: Replacement Parts may not always be available in matching colors.

$

$

Not available

21

Lawn-Boy 610646

Bolt-Shoulder

Note: Important Note: Replacement Parts may not always be available in matching colors.

$6.49

$

Usually ships in 3-6 days

0

22

Lawn-Boy 603620

Washer

Note: Important Note: Replacement Parts may not always be available in matching colors.

$5.49

$

In Stock, Qty 20+

0

23

Lawn-Boy 605255

Washer-Felt

Note: Important Note: Replacement Parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

24

Lawn-Boy 684481

Wheel-Rear

Note: Important Note: Replacement Parts may not always be available in matching colors.

$

$

Not available

25

Lawn-Boy 605256

Washer-Wheel Bolt

Note: Important Note: Replacement Parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

26

Lawn-Boy 603441

Bolt-Wheel

Note: Important Note: Replacement Parts may not always be available in matching colors.

$7.99

$

In Stock, Qty 20+

0

27

Lawn-Boy 679514

Wheel-Front
(Superseded to 678636)

Note: Important Note: Replacement Parts may not always be available in matching colors.

$25.99

$

In Stock, only 1 left!

0

28

Lawn-Boy 682876

Muffler Cover Assembly

Note: Important Note: Replacement Parts may not always be available in matching colors.

$143.99

$

Usually ships in 3-6 days

0

29

Lawn-Boy 609786

Support-Crankshaft

Note: Important Note: Replacement Parts may not always be available in matching colors.

$20.99

$

In Stock, only 2 left!

0

30

Lawn-Boy 609471

Screw-Muffler to Muffler Plate

Note: Important Note: Replacement Parts may not always be available in matching colors.

$4.99

$

In Stock, Qty 14

0

31

Lawn-Boy 677525

Collar and Plate Assembly

Note: Important Note: Replacement Parts may not always be available in matching colors.

$23.99

$

In Stock, only 1 left!

0

32

Lawn-Boy 683682

Blade-21"
(Superseded to 612543-03)

Note: Important Note: Replacement Parts may not always be available in matching colors.

$29.99

$

In Stock, only 3 left!

0

33

Lawn-Boy 603164

Nut
(Superseded to 121-3611)

Note: Important Note: Replacement Parts may not always be available in matching colors.

$5.99

$

Usually ships in 3-6 days

0

34

Lawn-Boy 608418

Screw
(Superseded to 46-6811)

Note: Important Note: Replacement Parts may not always be available in matching colors.

$3.49

$

In Stock, only 3 left!

0

35

Lawn-Boy 608175

Toe Bar

Note: Important Note: Replacement Parts may not always be available in matching colors.

$75.99

$

Usually ships in 3-6 days

0

36

Lawn-Boy 684522

Housing Assembly

Note: Important Note: Replacement Parts may not always be available in matching colors.

$618.99

$

In Stock, only 1 left!

0

37

Lawn-Boy 610640

Decal-Blade Contact Warning
(Superseded to 43-8480)

Note: Important Note: Replacement Parts may not always be available in matching colors. NOTE: Parts shown with bullet included with assembly above.

$6.49

$

In Stock, Qty 6

0

38

Lawn-Boy 604604

Grommet
(Superseded to 94-1610)

Note: Important Note: Replacement Parts may not always be available in matching colors. NOTE: Parts shown with bullet included with assembly above.

$0.99

$

In Stock, Qty 13

0

39

Lawn-Boy 607809

Screw-Plate Mounting
(Superseded to 614677)

Note: Important Note: Replacement Parts may not always be available in matching colors.

$3.99

$

In Stock, Qty 16

0

40

Lawn-Boy 607560

Cover Plate
(Superseded to 95-7052)

Note: Important Note: Replacement Parts may not always be available in matching colors.

$30.99

$

In Stock, only 1 left!

0

41

Lawn-Boy 614265

Applique-Starter Base

Note: Important Note: Replacement Parts may not always be available in matching colors.

$

$

Not available

42

Lawn-Boy 607188

Screw-Handle Bracket to Hsg.

Note: Important Note: Replacement Parts may not always be available in matching colors.

$3.49

$

In Stock, only 3 left!

0

43

Lawn-Boy 611395

Screw-Shroud
(Superseded to 611543)

Note: Important Note: Replacement Parts may not always be available in matching colors.

$3.99

$

In Stock, Qty 6

0

44

Lawn-Boy 612428

Screw-Starter Mounting

Note: Important Note: Replacement Parts may not always be available in matching colors.

$2.49

$

In Stock, only 4 left!

0

45

Lawn-Boy 146014

Washer-Shim

Note: Important Note: Replacement Parts may not always be available in matching colors.

$

$

Not available

46

Lawn-Boy 146015

Washer-Shim

Note: Important Note: Replacement Parts may not always be available in matching colors.

$3.49

$

In Stock, only 1 left!

0

47

Lawn-Boy 681906

Mulcher Plate Kit w/ Decal
(Superseded to 92-8630)

Note: Important Note: Replacement Parts may not always be available in matching colors. For Model S21ZPM Only.

$

$

Not available

Lawn-Boy 614334

Decal-Mulcher Plate

Note: Important Note: Replacement Parts may not always be available in matching colors. NOTE: Parts shown with bullet included with assembly above.

$

$

Currently unavailable

48

Lawn-Boy 613500

Screw-Muffler Plate To Block

Note: Important Note: Replacement Parts may not always be available in matching colors.

$8.49

$

Usually ships in 3-6 days

0
