S 21 BSN A - Lawn-Boy Walk-Behind Mower (SN: J00000001 - J99999999) (1990) Housing And Shroud Group Model: S21esna Parts Diagram

Walk-Behind Mower

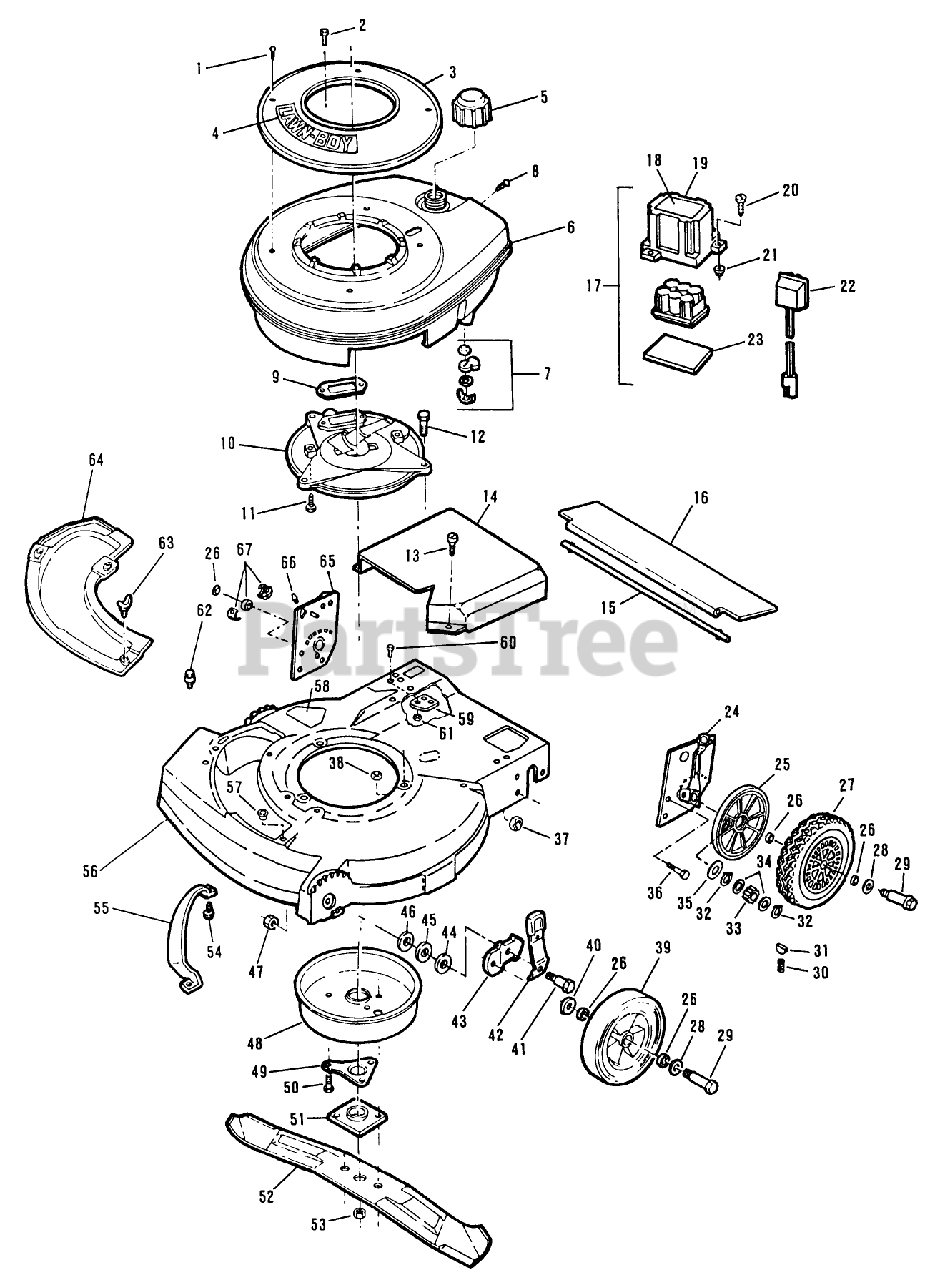

Housing And Shroud Group Model: S21esna Parts Diagram

  • Title

1

Lawn-Boy 611395

SCREW - SELF TAPPING
(Superseded to 611543)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 3 left!

0

2

Lawn-Boy 612428

SCREW SEMS SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, only 4 left!

0

3

Lawn-Boy 684301

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

4

Lawn-Boy 613092

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 682755

FUEL CAP & INSERT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$22.99

$

In Stock, Qty 8

0

Lawn-Boy 607213

GASKET S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 20+

0

Lawn-Boy 609150

BAFFLE - FOAM SM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$6.99

$

In Stock, Qty 20+

0

Lawn-Boy 683916

See Supercession: 16-5539
(Superseded to 16-5539)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

6

Lawn-Boy 683915

See Supercession: 16-5539
(Superseded to 16-5539)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

7

Lawn-Boy 681818

SHUT OFF VALVE KIT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

8

Lawn-Boy 608997

SCREW S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, only 2 left!

0

9

Lawn-Boy 609420

See Supercession: 93-1233
(Superseded to 93-1233)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, Qty 20+

0

10

Lawn-Boy 612301

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

11

Lawn-Boy 607601

SCREW V

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 3 left!

0

12

Lawn-Boy 611774

SCREW-HH

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

13

Lawn-Boy 606452

SCREW SEMS TRM HEX HD

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

14

Lawn-Boy 613060

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 613013

DISCONTINUED
(Superseded to 614314)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

16

Lawn-Boy 613044

See Supercession: 614315
(Superseded to 614315)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$43.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 683637

See Supercession: 55-7520
(Superseded to 55-7520)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$176.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 612518

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

19

Lawn-Boy 612690

See Supercession: 95-3017
(Superseded to 95-3017)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$36.99

$

Usually ships in 3-6 days

0

20

Lawn-Boy 611395

SCREW - SELF TAPPING
(Superseded to 611543)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 3 left!

0

21

Lawn-Boy 605120

NUT-CLIP

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, Qty 5

0

22

Lawn-Boy 681369

See Supercession: 131-0848
(Superseded to 131-0848)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$69.99

$

Usually ships in 3-6 days

0

23

Lawn-Boy 612510

PAD-BATTERY

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$8.99

$

In Stock, only 1 left!

0

24

Lawn-Boy 683931

See Supercession: 684588
(Superseded to 684588)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 683195

REAR AXLE BEARING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 603165

1200 18 LB MOWER O/

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.23

$

Usually ships in 3-6 days

0

25

Lawn-Boy 613512

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

26

Lawn-Boy 605255

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 20+

0

27

Lawn-Boy 683626

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 603615

**FITTING LINCOLN

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

28

Lawn-Boy 605256

SPACER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

29

Lawn-Boy 603441

BOLT WHEEL

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$8.49

$

In Stock, Qty 16

0

30

Lawn-Boy 612067

SPRING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$10.99

$

In Stock, only 1 left!

0

31

Lawn-Boy 612066

KEY

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, Qty 20+

0

32

Lawn-Boy 607676

RET RING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$6.49

$

In Stock, Qty 6

0

33

Lawn-Boy 612064

PINION BROCKWAY

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$31.99

$

Usually ships in 3-6 days

0

34

Lawn-Boy 612068

SPACER/GR ALGHNY

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$18.99

$

Usually ships in 3-6 days

0

35

Lawn-Boy 611838

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

36

Lawn-Boy 610404

See Supercession: 146209
(Superseded to 146209)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

Usually ships in 3-6 days

0

37

Lawn-Boy 608311

NUT-LOCK F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, only 3 left!

0

38

Lawn-Boy 608311

NUT-LOCK F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, only 3 left!

0

39

Lawn-Boy 684135

See Supercession: 105-8618
(Superseded to 105-8618)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$54.99

$

Usually ships in 3-6 days

0

40

Lawn-Boy 603620

WASHER WROUGHT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$6.49

$

In Stock, Qty 20+

0

41

Lawn-Boy 610646

BOLT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$7.99

$

Usually ships in 3-6 days

0

42

Lawn-Boy 153444

SPRING ARM ASM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

43

Lawn-Boy 608833

See Supercession: 608833-03
(Superseded to 608833-03)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$23.99

$

In Stock, only 4 left!

0

44

Lawn-Boy 146015

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, only 1 left!

0

45

Lawn-Boy 146014

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

46

Lawn-Boy 608834

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$14.99

$

In Stock, only 2 left!

0

47

Lawn-Boy 603773

LOCKNUT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

48

Lawn-Boy 682876

MUFFLER COVER F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$173.99

$

Usually ships in 3-6 days

0

49

Lawn-Boy 609786

SUPPORT F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$24.99

$

In Stock, only 2 left!

0

50

Lawn-Boy 609471

SCREW

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, Qty 10

0

51

Lawn-Boy 677525

PLATE AND COLLAR ASM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$45.99

$

In Stock, Qty 7

0

52

Lawn-Boy 683682

See Supercession: 612543-03
(Superseded to 612543-03)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$29.99

$

In Stock, Qty 20+

0

53

Lawn-Boy 603164

NUT-BLADE
(Superseded to 121-3611)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.99

$

In Stock, Qty 9

0

54

Lawn-Boy 608418

See Supercession: 46-6811
(Superseded to 46-6811)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, only 3 left!

0

55

Lawn-Boy 608175

BAR-TOE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$81.99

$

Usually ships in 3-6 days

0

56

Lawn-Boy 684056

See Supercession: 684691
(Superseded to 684691)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1087.99

$

Usually ships in 3-6 days

0

57

Lawn-Boy 604604

See Supercession: 94-1610
(Superseded to 94-1610)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

58

Lawn-Boy 610640

See Supercession: 43-8480
(Superseded to 43-8480)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$6.99

$

In Stock, Qty 6

0

59

Lawn-Boy 613042

BOLSTER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

60

Lawn-Boy 609891

See Supercession: 700138
(Superseded to 700138)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

61

Lawn-Boy 602315

LOCKNUT E

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, only 2 left!

0

62

Lawn-Boy 607809

See Supercession: 614677
(Superseded to 614677)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, Qty 12

0

63

Lawn-Boy 606733

WING SCREW LAWRE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$10.99

$

In Stock, Qty 6

0

64

Lawn-Boy 607560

See Supercession: 95-7052
(Superseded to 95-7052)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$38.99

$

In Stock, Qty 9

0

65

Lawn-Boy 683933

See Supercession: 684587
(Superseded to 684587)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

66

Lawn-Boy 603615

**FITTING LINCOLN

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

67

Lawn-Boy 683195

REAR AXLE BEARING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available
