S 20700 (107195001) - Scotts Cultivator, 20 Volt General Assembly Parts Diagram

Cultivator, 20 Volt

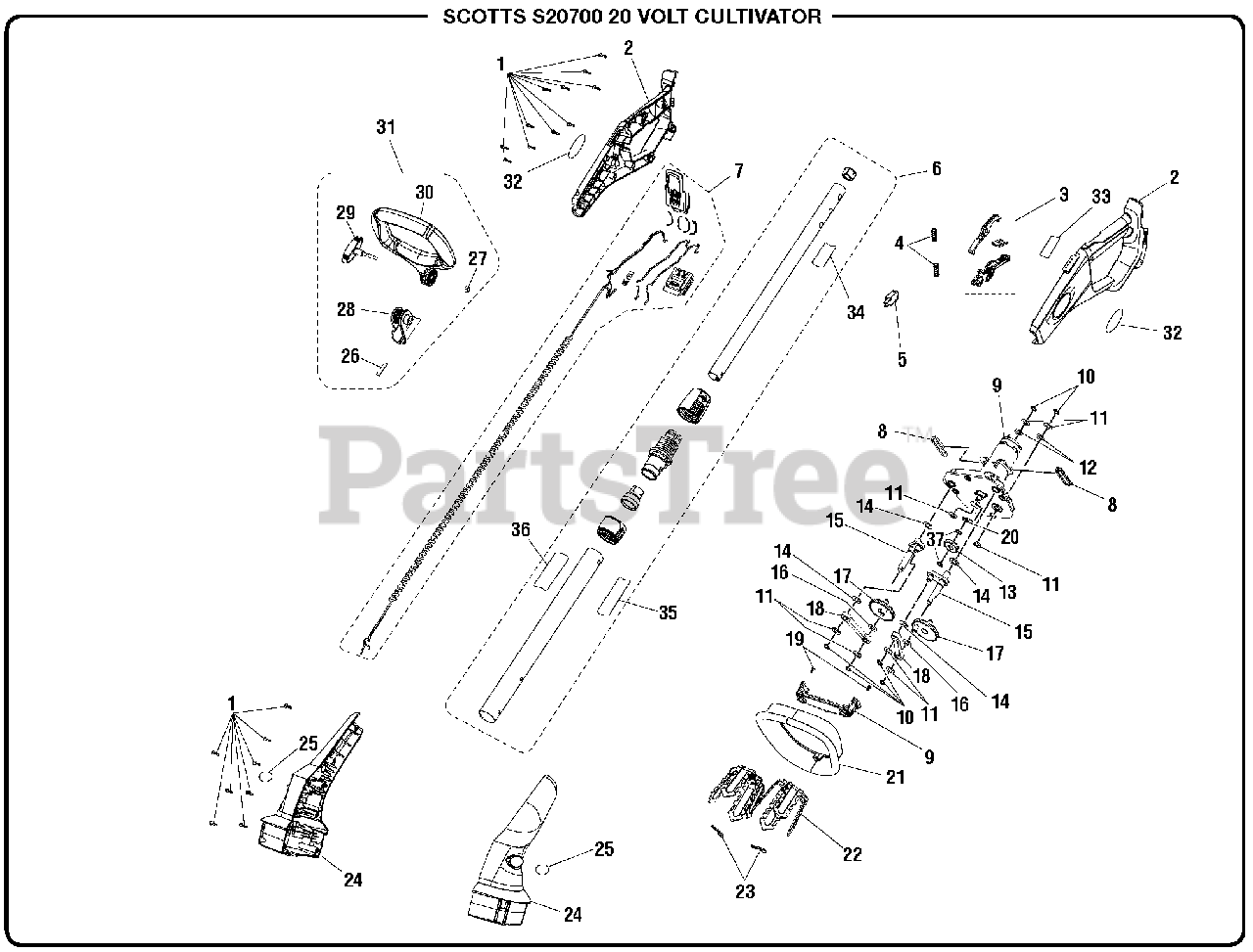

General Assembly Parts Diagram

  • Title

1

Homelite 661817001

Screw (M4 x 14 mm,T15 Torx Pan Hd.)

$1.99

$

In Stock, only 1 left!

0

2

Homelite 307916001

Handle Assembly

Note: (Inc. Key Nos. 32-33)

$

$

Not available

3

Homelite 307949001

Switch Trigger and Lock-Out Lever Assembly

$

$

Not available

4

Homelite 679002002

Compression Spring

$1.99

$

Usually ships in 3-7 days

0

5

Homelite 760279003

Switch

$

$

Currently unavailable

6

Homelite 203806001

Pole Assembly

Note: (Inc. Key Nos. 34-36)

$

$

Not available

7

Homelite 312030001

Wiring Harness

$

$

Not available

8

Homelite 563412001

Rubber Isolator

$1.49

$

Usually ships in 3-7 days

0

9

Homelite 203804001

Motor and Clutch Assembly

$

$

Not available

10

Homelite 693108002

Retaining Ring

$1.49

$

Usually ships in 3-7 days

0

11

Homelite 639231001

Washer (ID8 x OD14 x 0.5t)

$1.49

$

Usually ships in 3-7 days

0

12

Homelite 638049001

Wavy Washer (ID8.5 x OD12.5 x 2t)

$

$

Not available

13

Homelite 642232001

Clutch Gear

$1.99

$

Usually ships in 3-7 days

0

14

Homelite 639220001

Washer (ID10 x OD17.5 x 0.5t)

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 202995001

Pivot Arm Assembly

$10.99

$

Usually ships in 3-7 days

0

16

Homelite 639219001

Washer (ID8 x OD16 x 1t)

$

$

Not available

17

Homelite 202994001

Drive Gear Assmebly

$8.99

$

Usually ships in 3-7 days

0

18

Homelite 642230001

Connect Rod

$3.49

$

Usually ships in 3-7 days

0

19

Homelite 660203001

Screw (M3 x 8 mm, Pan Hd.)

$1.99

$

In Stock, only 4 left!

0

20

Homelite 670147001

C-Ring (Retaining Ring)

$

$

Currently unavailable

21

Homelite 528794001

Guard

$

$

Not available

22

Homelite 306694001

Tine

$14.99

$

Usually ships in 3-7 days

0

23

Homelite 639223001

Hitch Pin

$1.99

$

Usually ships in 3-7 days

0

24

Homelite 203805001

Housing Assembly

Note: (Inc. Key No. 25)

$

$

Not available

25

Homelite 941112020

Motor Housing Label

$

$

Not available

26

Homelite 570112002

Rubber Plate

$1.99

$

Usually ships in 3-7 days

0

27

Homelite 680196006

Hex Nut (M6)

$1.99

$

Usually ships in 3-7 days

0

28

Homelite 310921002

Handle Bracket Assembly

Note: (Inc. Key No. 26)

$8.49

$

Usually ships in 3-7 days

0

29

Homelite 527539001

Auxillary Hanlde Knob

$

$

Not available

30

Homelite 526990001

Front Handle

$

$

Not available

31

Homelite 311228001

Auxillary Handle Assembly

Note: (Inc. Key Nos. 26-30)

$8.99

$

Usually ships in 3-7 days

0

32

Homelite 941112018

Handle Label

$

$

Not available

33

Homelite 941836001

Fuel Gauge Label

$

$

Not available

34

Homelite 941588080

Data Label

$

$

Not available

35

Homelite 940657135

Warning Icon Label

$

$

Not available

36

Homelite 941107012

Warning Transition Label

$1.49

$

Usually ships in 3-7 days

0

37

Homelite 695107001

Retaining Ring

$

$

Currently unavailable

Homelite 991000492

Operator's Manual

Note: NOT SHOWN

$

$

Currently unavailable
