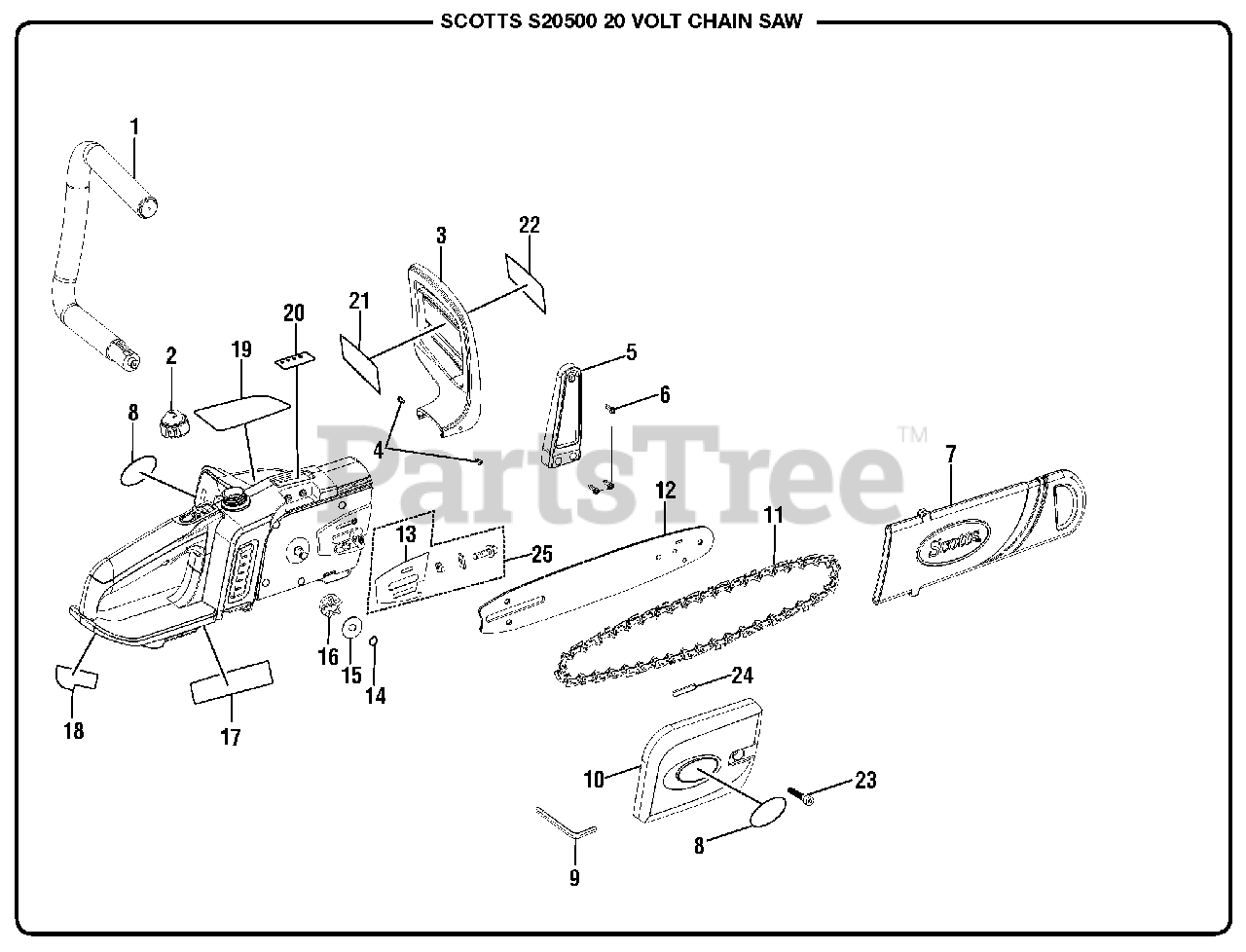

S 20500 - Scotts Chainsaw, 20 Volt General Assembly Parts Diagram

Chainsaw, 20 Volt

General Assembly Parts Diagram

  • Title

1

Homelite 527974001

Left Front Handle

$

$

Not available

2

Homelite 307059001

Oil Cap Assembly

$2.99

$

Usually ships in 3-7 days

0

3

Homelite 307056001

Guard w/Labels

$

$

Not available

4

Homelite 660203001

Screw (M3 x 8 mm)

$1.99

$

In Stock, only 4 left!

0

5

Homelite 527975001

Right Front Handle

$

$

Not available

6

Homelite 661817001

Screw (M4 x 14 mm)

$1.99

$

In Stock, only 1 left!

0

7

Homelite 527978001

Scabbard

$5.99

$

Usually ships in 3-7 days

0

8

Homelite 941131001

Logo Label

$

$

Not available

9

Homelite 681885001

Hex Key (5mm x 4mm)

$

$

Not available

10

Homelite 350956001

Bar Cover w/Level

Note: (Inc. Key Nos. 8 & 24)

$

$

Currently unavailable

11

Homelite 693814001

Chain

$22.99

$

In Stock, only 1 left!

0

12

Homelite 671256009

Bar Assembly

$16.99

$

Usually ships in 3-7 days

0

13

Homelite 563352001

Rubber Gasket

$

$

Not available

14

Homelite 670608002

Retaining Ring

$1.99

$

In Stock, Qty 6

0

15

Homelite 690733001

Cover Plate

$1.99

$

In Stock, Qty 7

0

16

Homelite 610323001

Sprocket

$2.49

$

Usually ships in 3-7 days

0

17

Homelite 941132002

Warning (Fr/Sp)

$

$

Not available

18

Homelite 941588055

Data Label

$

$

Not available

19

Homelite 941320002

Warning Label

$

$

Not available

20

Homelite 941836001

Fuel Indicator

$

$

Not available

21

Homelite 941132001

Warning Icon Label

$

$

Not available

22

Homelite 941836003

Lithium Ion Label

$

$

Not available

23

Homelite 660116002

Screw

$

$

Not available

24

Homelite 563443001

Rubber Plate

$1.99

$

In Stock, only 1 left!

0

25

Homelite 307281001

Chain Adjustment Assmebly

Note: (Inc. Key No. 13)

$2.49

$

Usually ships in 3-7 days

0

Homelite 990000824

Operator's Manual

Note: NOT SHOWN

$

$

Not available
