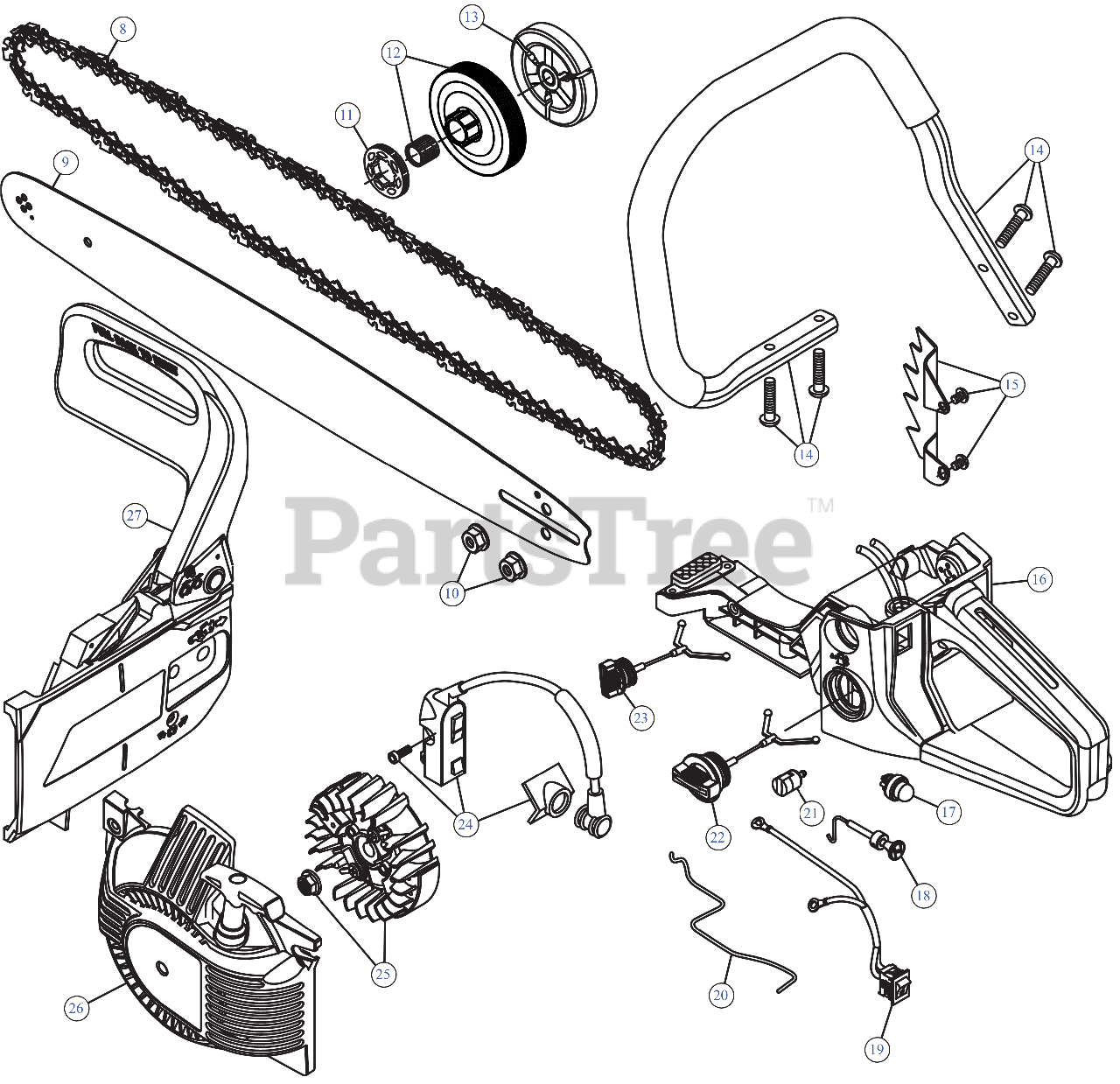

S 205 (CMXGSAMY462S) (41AY462S793) - Craftsman Chainsaw General Assembly Parts Diagram

Chainsaw

General Assembly Parts Diagram

  • Title

8

MTD 913-05044

20" CHAINSAW CHAIN

$47.99

$

In Stock, Qty 12

0

9

MTD 795-00462

CHAINSAW BAR 20" (OREGON)

$

$

Not available

10

MTD 953-08105

BAR NUT M8

$3.49

$

In Stock, Qty 20+

0

11

MTD 953-08219

SPROCKET

$7.49

$

In Stock, only 4 left!

0

12

MTD 953-08220

CLUTCH DRUM ASSEMBLY

$20.99

$

In Stock, Qty 20+

0

13

MTD 953-08145

CLUTCH ASSEMBLY

$15.99

$

In Stock, Qty 20+

0

14

MTD 953-08130

HANDLE ASSEMBLY

Note: (with Screws (4))

$18.99

$

Usually ships in 3-6 days

0

15

MTD 953-08128

SPIKE PLATE W/HDW

Note: (with Screws (2))

$5.49

$

Usually ships in 3-6 days

0

16

MTD 953-08142

FUEL HOUSING ASSEMBLY

$40.99

$

In Stock, only 2 left!

0

17

MTD 953-08127

PRIMER BULB YD2500-18410

$5.99

$

In Stock, Qty 20+

0

18

MTD 953-08271

CHOKE LEVER ASSEMBLY

$3.99

$

Usually ships in 3-6 days

0

19

MTD 953-08223

SWITCH ASSEMBLY

$3.49

$

In Stock, Qty 16

0

20

MTD 953-08132

THROTTLE ROD

$3.49

$

In Stock, only 1 left!

0

21

MTD 953-08123

FUEL FILTER YD4600-18034

$11.99

$

Usually ships in 3-6 days

0

22

MTD 953-08268

FUEL CAP ASSEMBLY SRS

$5.49

$

In Stock, Qty 7

0

23

MTD 953-08222

OIL CAP ASSEMBLY

$5.49

$

In Stock, only 3 left!

0

24

MTD 953-08138

MODULE

Note: (with Screws (2))

$26.99

$

Usually ships in 3-6 days

0

25

MTD 953-08131

FLYWHEEL

$20.99

$

In Stock, only 2 left!

0

26

MTD 753-09386

RECOIL ASSEMBLY (SBD4620YD4620.8CM-25313)

$27.99

$

Usually ships in 3-6 days

0

27

MTD 753-09389

BRAKE ASSEMBLY (SBD4620 YD4620.8CM-27724)

$30.99

$

In Stock, Qty 17

0
