S 20300 (107176001) - Scotts Edger, 20 Volt General Assembly Parts Diagram

Edger, 20 Volt

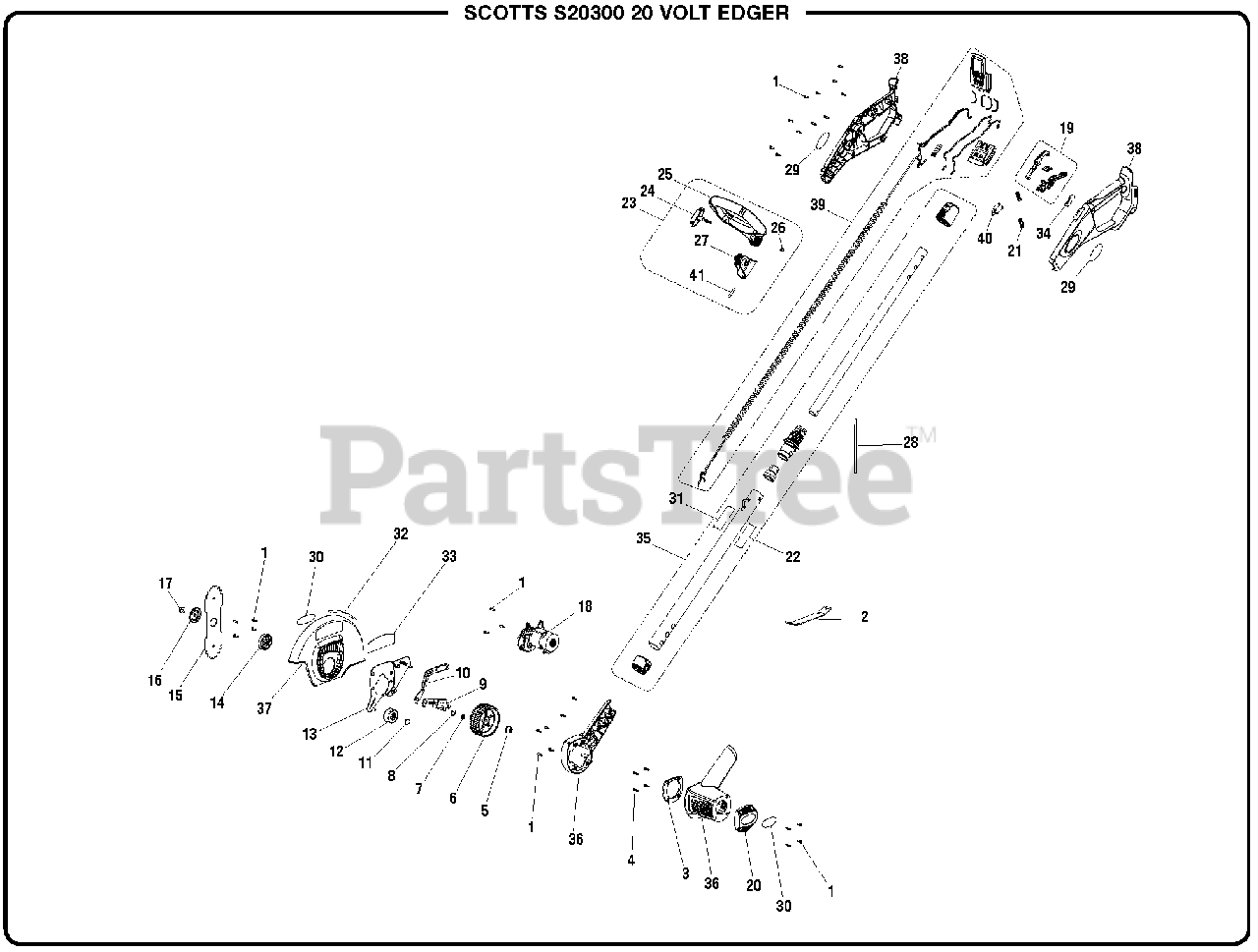

General Assembly Parts Diagram

  • Title

1

Homelite 661817001

Screw (M4 x 14 mm)

$1.99

$

In Stock, only 1 left!

0

2

Homelite 638015001

Wrench

$

$

Not available

3

Homelite 528548001

Baffle Plate

$

$

Not available

4

Homelite 660206055

Screw (M3.5 x 14 mm, Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

5

Homelite 308483002

Push Nut

$1.49

$

Usually ships in 3-7 days

0

6

Homelite 525397001

Wheel

$2.49

$

In Stock, only 4 left!

0

7

Homelite 679995001

C-Ring (OD10.59 x ID8.94)

$1.99

$

In Stock, only 1 left!

0

8

Homelite 639142001

Washer

$1.99

$

In Stock, only 4 left!

0

9

Homelite 307401001

Pivot Bracket

$8.49

$

Usually ships in 3-7 days

0

10

Homelite 307400001

Depth Adjustment Lever

$

$

Not available

11

Homelite 311153001

Push Cap

$1.99

$

In Stock, only 4 left!

0

12

Homelite 525802001

Edger Depth Restrictor Wheel

$1.99

$

In Stock, only 3 left!

0

13

Homelite 311151001

Skidplate Bracket Assembly

$19.99

$

Usually ships in 3-7 days

0

14

Homelite 678011001

Flanged Washer
(Superseded to 099078001005)

$10.99

$

Usually ships in 3-7 days

0

15

Homelite 638006008

Edger Blade

$

$

Not available

16

Homelite 638017001

Cupped Washer
(Superseded to 04409)

$3.99

$

In Stock, only 1 left!

0

17

Homelite 678128002

Lock Nut (M8)

$1.99

$

In Stock, only 1 left!

0

18

Homelite 220364001

Motor & Gear Box Assembly

$

$

Not available

19

Homelite 307949001

Switch Trigger and Lock-Out Lever Assembly

$

$

Not available

20

Homelite 307919001

Motor Cap

Note: (Inc. Key No. 30)

$

$

Not available

21

Homelite 679002002

Compression Spring

$1.99

$

Usually ships in 3-7 days

0

22

Homelite 941112032

Warning Label (French/Spanish)

$

$

Not available

23

Homelite 311228001

Auxilary Handle Assembly

Note: (Inc. Key Nos. 24-27)

$8.99

$

Usually ships in 3-7 days

0

24

Homelite 527539001

Knob

$

$

Not available

25

Homelite 526990001

Handle

$

$

Not available

26

Homelite 680196006

Hex Nut (M6)

$1.99

$

Usually ships in 3-7 days

0

27

Homelite 310921002

Handle Bracket

Note: (Inc. Key No. 41)

$8.49

$

Usually ships in 3-7 days

0

28

Homelite 678020001

Holding Pin Tool
(Superseded to 099078001040)

$2.49

$

In Stock, only 4 left!

0

29

Homelite 941112018

Logo Label

$

$

Not available

30

Homelite 941112035

Logo Label (Guard)

$

$

Not available

31

Homelite 940657079

Warning Icon Label (Boom)

$

$

Not available

32

Homelite 941972001

Warning Icon Label (Guard)

$

$

Not available

33

Homelite 941588068

Data Label

$

$

Not available

34

Homelite 941836001

Fuel Gauge Label

$

$

Not available

35

Homelite 307918001

Pole Assembly

Note: (Inc. Key Nos. 22 and 31)

$

$

Not available

36

Homelite 307921001

Motor Housing Assembly

$

$

Not available

37

Homelite 307917001

Blade Guard

Note: (Inc. Key Nos. 30 and 32-33)

$

$

Not available

38

Homelite 307916001

Handle Assembly

Note: (Inc. Key Nos. 29 and 34)

$

$

Not available

39

Homelite 307920001

Wiring Harness

$

$

Not available

40

Homelite 760034012

Switch

$5.99

$

Usually ships in 3-7 days

0

41

Homelite 570112002

Rubber Plate

$1.99

$

Usually ships in 3-7 days

0

Homelite 991000306

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
