S 200XT (5901667) - Snapper Pro S200XT Series 72" Zero-Turn Mower, 37hp Briggs & Stratton 72" Mower Deck Group - Pusher Bars S/N: 2017978508 & Below Parts Diagram

S200XT Series 72" Zero-Turn Mower, 37hp Briggs & Stratton

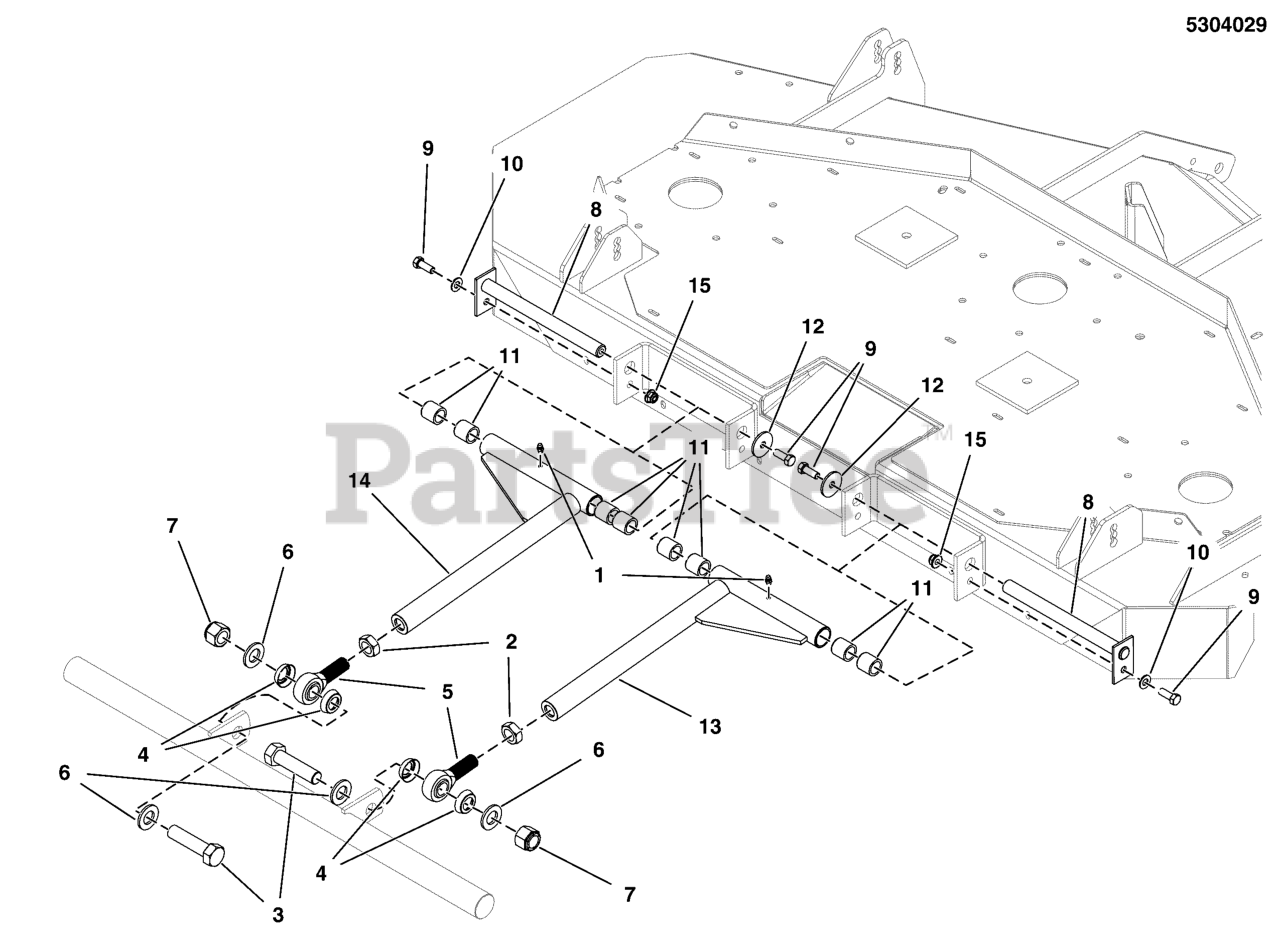

72" Mower Deck Group - Pusher Bars S/N: 2017978508 & Below Parts Diagram

  • Title

1

Snapper Pro 5020095

GREASE FITTING, 1/4-28 STRAIGHT
(Superseded to 5020095SM)

$3.99

$

In Stock, only 2 left!

0

2

Snapper Pro 5025093

NUT, 3/4-16 HEX JAM
(Superseded to 5025093SM)

$4.49

$

In Stock, only 1 left!

0

3

Snapper Pro 5025265X24

BOLT-3/4-16 X 3 GD8 CZ
(Superseded to 5025265X24SM)

$13.99

$

In Stock, only 2 left!

0

4

Snapper Pro 5022111

SEAL, 3/4 ROD END
(Superseded to 5022111SM)

$15.99

$

In Stock, Qty 8

0

5

Snapper Pro 5022039

BALL JOINT, 3/4-16, MALE
(Superseded to 5022039SM)

$37.99

$

In Stock, Qty 13

0

6

Snapper Pro 5025160

WASHER, 3/4 SAE
(Superseded to 5025160SM)

$3.99

$

In Stock, Qty 7

0

7

Snapper Pro 5025284

NUT, 3/4-16 HEX NYLON LOCK
(Superseded to 5025284SM)

$3.49

$

In Stock, only 3 left!

0

8

Snapper Pro 5045037A

NLA - WELD, DECK MOUNT SHAFT - BLK
(Superseded to 5045037AA)

$39.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

10

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

11

Snapper Pro 5023344

BUSHING, .75 X 1.00 X 1.00, PLASTIC
(Superseded to 5023344SM)

$9.49

$

Usually ships in 2-12 days

0

12

Snapper Pro 5100548

WASHER, .390 X 1.50 X .109, CZ
(Superseded to 5100548SM)

$4.49

$

Usually ships in 2-12 days

0

13

WELD, PUSHER BAR, IS3200Z, RH - BLK

Note: (Refer to Note: *)

$

$

Not available

14

WELD, PUSHER BAR, IS3200Z, LH - BLK

Note: (Refer to Note: *)

$

$

Not available

15

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0
