S 200XT (5901667) - Snapper Pro S200XT Series 72" Zero-Turn Mower, 37hp Briggs & Stratton 72" Mower Deck Group - Housing, Covers, Spindles & Blades (2 Belt System) Parts Diagram

S200XT Series 72" Zero-Turn Mower, 37hp Briggs & Stratton

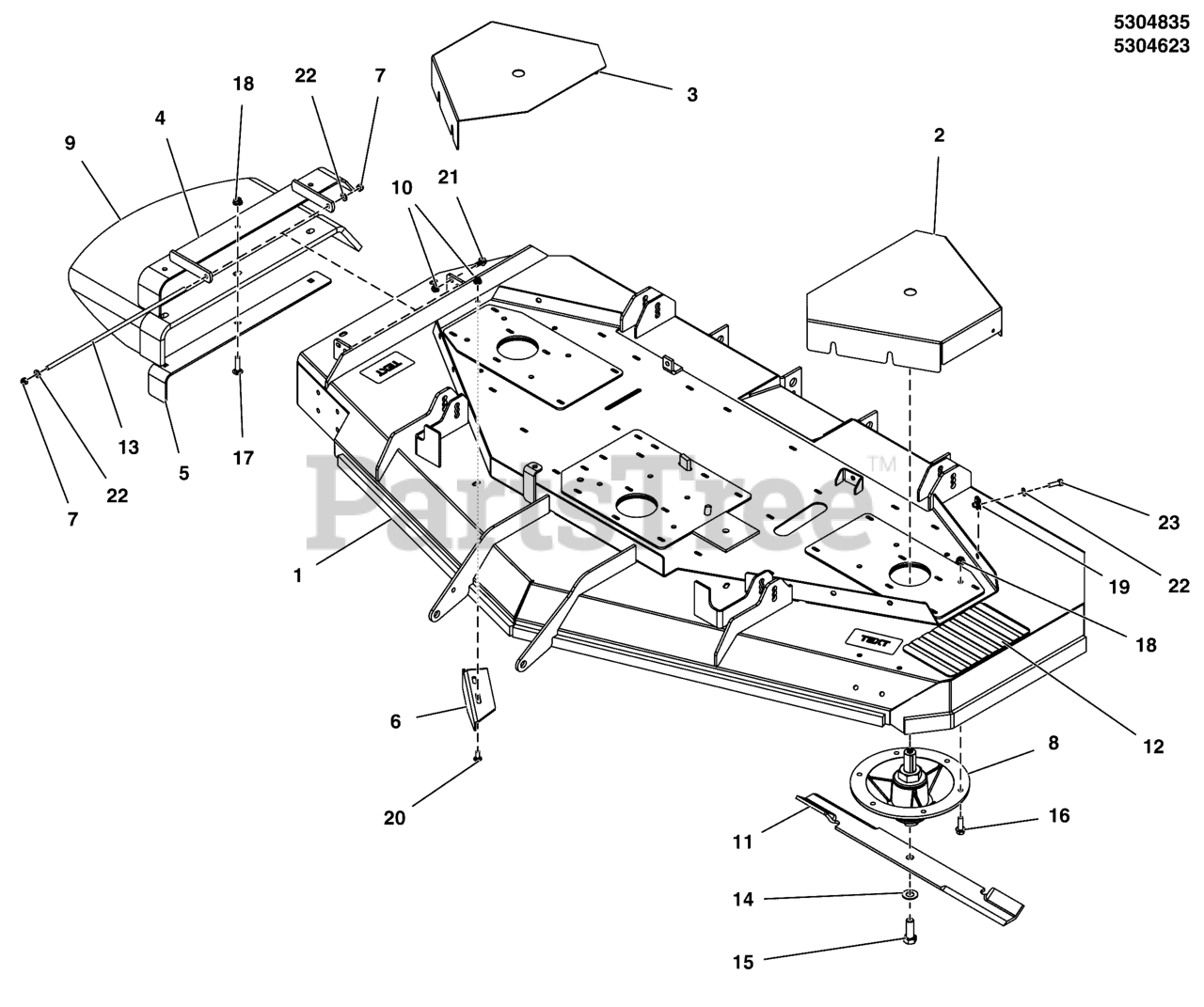

72" Mower Deck Group - Housing, Covers, Spindles & Blades (2 Belt System) Parts Diagram

  • Title

1

Snapper Pro 5600978

DECK SHELL W/DECALS, 72, 200XT (5415368D)

Note: (S/N: 2017954955 & Below)

$

$

Currently unavailable

1

Snapper Pro 5601088

DECK SHELL W/DECALS,72,S200XT(5417032D)

Note: (S/N: 2017954956 & Above)(Refer to Note: *)

$

$

Currently unavailable

2

Snapper Pro 5415582D

GUARD, MOWER DECK, IS3200-72, LH - RED
(Superseded to 5415582DFS)

$23.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5415581D

GUARD, MOWER DECK, IS3200-72, RH - RED
(Superseded to 5415581DFS)

$19.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 84008171

MOUNT

$136.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 5413385A

SUPPORT, DISCHARGE CHUTE - BLK
(Superseded to 84003245)

$28.99

$

In Stock, Qty 5

0

6

Snapper Pro 5407876A

PLATE, DEFLECTOR, 72 - BLK
(Superseded to 5407876AA)

$22.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 11

0

8

Snapper Pro 84007984

SPINDLE ASSEMBLY

Note: (S/N: 2017458254 and below)

$296.99

$

In Stock, only 1 left!

0

8

Snapper Pro 84003242

SPINDLE ASSEMBLY

Note: (S/N: 2017458255 and above)

$351.99

$

In Stock, Qty 5

0

9

Snapper Pro 5413499

CHUTE, RUBBER DISCHARGE (5104442)

$160.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

11

Snapper Pro 5102227S

BLADE, 25 X 25 X 2.50, HIGH LIFT (SET OF 3)

Note: (SET OF THREE BLADES)

$110.99

$

In Stock, only 2 left!

0

12

Snapper Pro 5101005

SAFETY WALK, 9.75 X 6.00
(Superseded to 5101005SM)

$15.99

$

In Stock, only 1 left!

0

13

Snapper Pro 5061300

ROD, MOUNT, CHUTE, 61, CZ
(Superseded to 5061300FS)

$11.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5025477

WASHER, BLADE BOLT, 9/16" F436, CZ
(Superseded to 5025477SM)

$3.99

$

In Stock, only 4 left!

0

15

Snapper Pro 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

$3.49

$

Usually ships in 2-12 days

0

16

Snapper Pro 5025390X10

BOLT, 3/8-16 X 1-1/4, FLANGE, GD 5, CZ
(Superseded to 5025390X10FS)

$2.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 5025146X12

BOLT, 3/8-16 X 1-1/2, CARRIAGE, GD5, CZ
(Superseded to 5025146X12YP)

$3.99

$

Usually ships in 2-12 days

0

18

Snapper Pro 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

19

Snapper Pro 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

20

Snapper Pro 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0

21

Snapper Pro 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

22

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

23

Snapper Pro 5025011X10

BOLT, 5/16-18 X 1-1/4" GD5 YZ
(Superseded to 5025055X10YP)

$3.49

$

In Stock, only 2 left!

0
