S 200XT (5901664) - Snapper Pro S200XT Series 61" Zero-Turn Mower, 26hp Kawasaki Fuel Supply Hose & Tank Replacement Parts Group Parts Diagram

S200XT Series 61" Zero-Turn Mower, 26hp Kawasaki

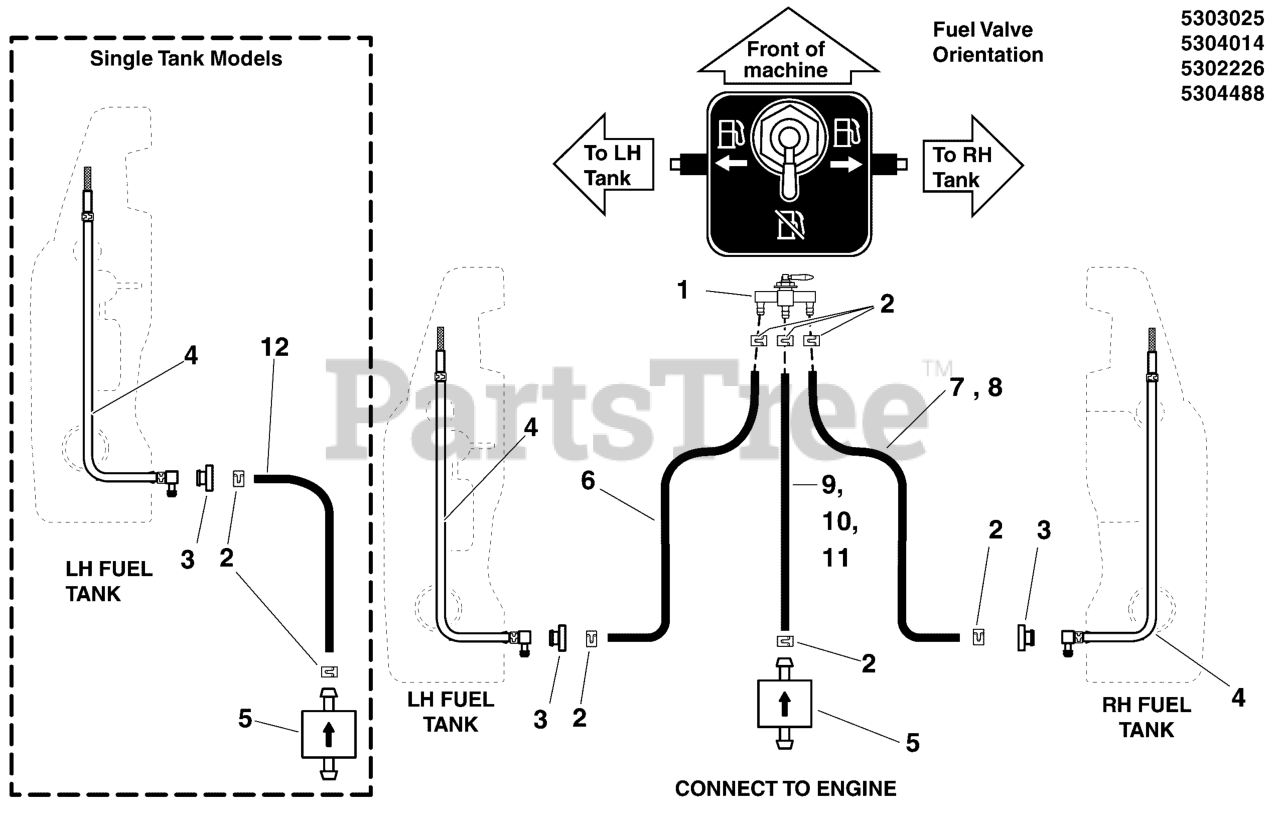

Fuel Supply Hose & Tank Replacement Parts Group Parts Diagram

  • Title

1

Snapper Pro 5023358

VALVE, FUEL STRAIGHT, OUTLET
(Superseded to 5023358SM)

$48.99

$

In Stock, only 1 left!

0

2

Snapper Pro 93807

CLAMP, Hose
(Superseded to 691038)

Note: Qty: 2 - Single Tank Models)

$3.99

$

In Stock, Qty 20+

0

3

Snapper Pro 1726400

BUSHING-FUEL TANK RED RUBBER
(Superseded to 1726400FS)

$11.99

$

In Stock, only 4 left!

0

4

Snapper Pro 5101144

PICKUP TUBE ASSEMBLY, FUEL LINE (SV)

$33.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 5021178X3

FUEL FILTER (SV)
(Superseded to 5021178X3FS)

$12.99

$

In Stock, only 3 left!

0

6

Snapper Pro 5050831X22

1/4" Fuel Line, 22" Long
(Superseded to 5050831X22FS)

Note: (S/N: 4000303835 and below)

$11.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5050831X34

HOSE, 1/4" FUEL, 34.00"
(Superseded to 5050831X34FS)

Note: (S/N: 4000303836 and above)

$18.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 5050831X58

1/4" Fuel Line, 58" Long
(Superseded to 5050831X58FS)

Note: (Kawasaki Models)

$17.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 5050831X58

1/4" Fuel Line, 58" Long
(Superseded to 5050831X58FS)

Note: (Briggs & Stratton Models)

$17.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 5050831X34

HOSE, 1/4" FUEL, 34.00"
(Superseded to 5050831X34FS)

Note: (Briggs & Stratton 49E877 EFI Models)

$18.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5050831X25

Fuel Line, 25" Long (tank to filter)
(Superseded to 5050831X25SM)

Note: (Kawasaki Models)

$19.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5050831X11

1/4" Fuel Line, 11" Long
(Superseded to 5050831X11FS)

Note: (Briggs & Stratton 61E877 EFI Models)

$6.49

$

Usually ships in 2-12 days

0

12

Snapper Pro 5050831X37

1/4" Fuel Line, 37" Long
(Superseded to 5050831X37FS)

Note: (Single Tank Models)

$17.99

$

Usually ships in 2-12 days

0
