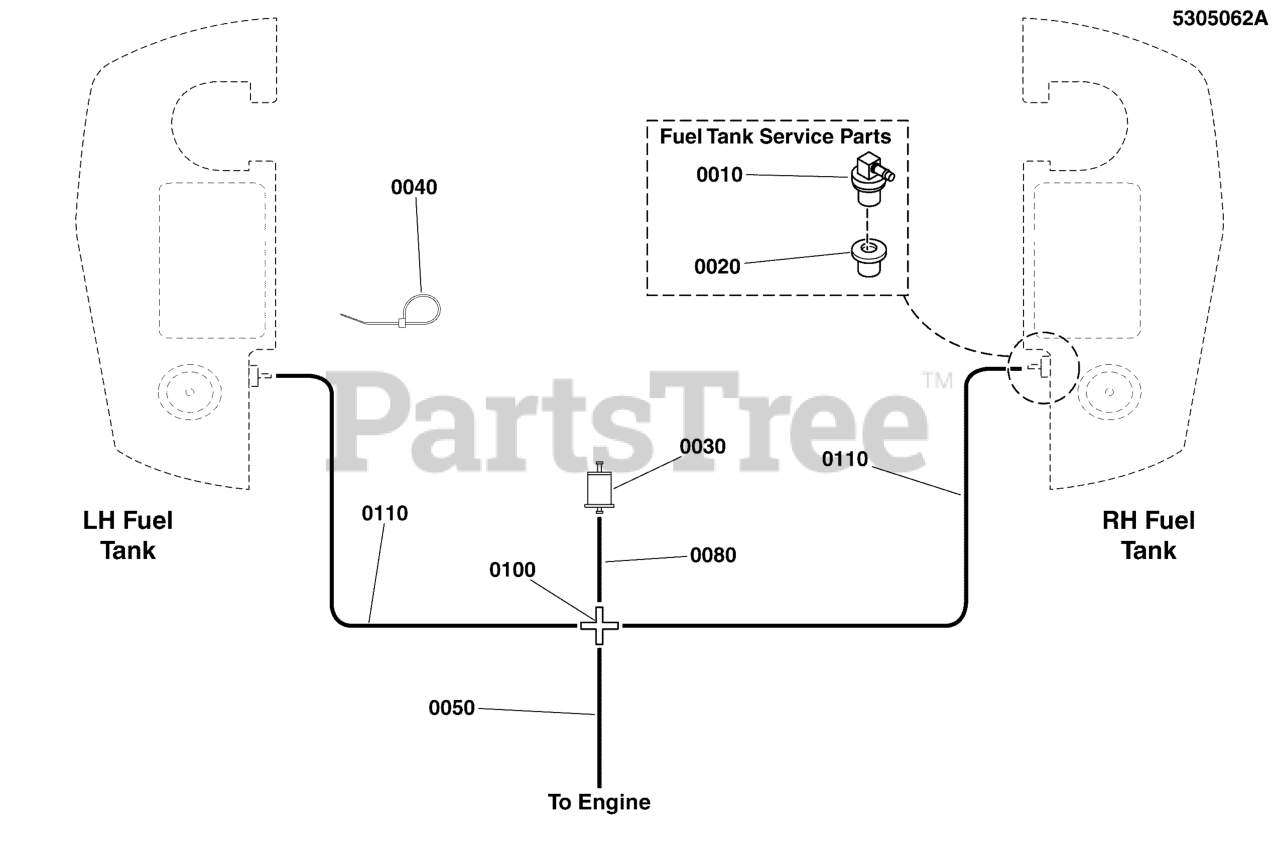

S 200XT (5901664) - Snapper Pro S200XT Series 61" Zero-Turn Mower, 26hp Kawasaki Evap Group - S/N: 2017791382 & Above Parts Diagram

S200XT Series 61" Zero-Turn Mower, 26hp Kawasaki

Evap Group - S/N: 2017791382 & Above Parts Diagram

  • Title
0010

Snapper Pro 770046

REMOTE VENT ASSEMBLY

Note: (One per fuel tank)

$16.99

$

In Stock, only 1 left!

0

0020

Snapper Pro 209043

GROMMET (SV)
(Superseded to 799624)

Note: (One per fuel tank)

$8.99

$

In Stock, Qty 15

0

0030

Snapper Pro 80025019

FILTER, FUEL
(Superseded to 84001895)

$7.99

$

In Stock, Qty 20+

0

0040

Snapper Pro 5021030

TIE, SELF-LOCKING, 6"
(Superseded to 5021030SM)

$2.99

$

In Stock, only 3 left!

0

0050

Snapper Pro 7700552X37

HOSE, VAPOR, 5MM ID, 37.00 LG
(Superseded to 7700552X37FS)

$8.99

$

Usually ships in 2-12 days

0

0080

Snapper Pro 7700552X2

HOSE, VAPOR, 5MM ID, 2.00 LG
(Superseded to 7700552X2YP)

$4.49

$

Usually ships in 2-12 days

0

0100

Snapper Pro 5105394

FITTING, BARBED CROSS, 3/16" BLK NYLON
(Superseded to 5105394YP)

$9.99

$

Usually ships in 2-12 days

0

0110

Snapper Pro 7700552X40P5

HOSE, VAPOR, 5MM ID, 40.50 LG

$

$

Currently unavailable
