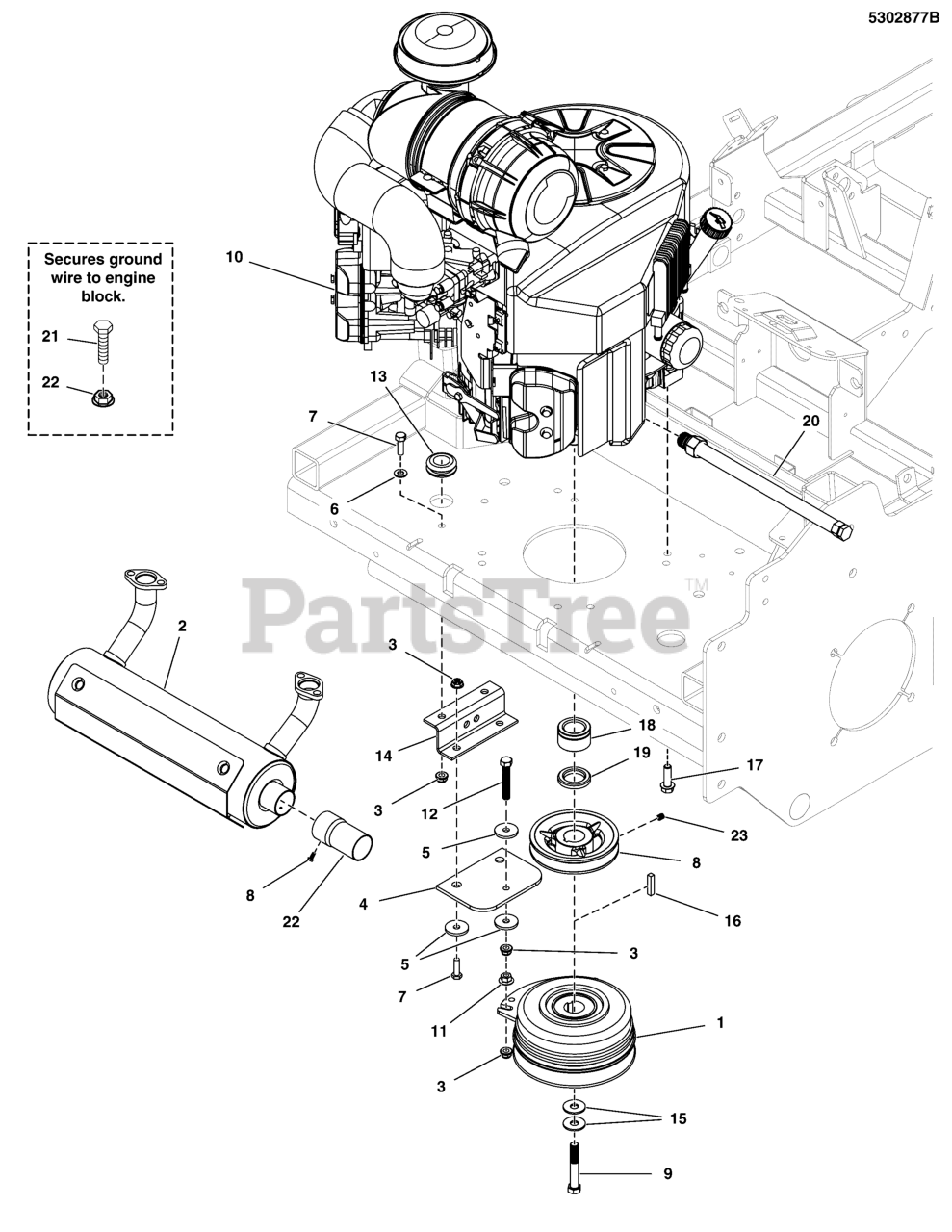

S 200XT (5901664) - Snapper Pro S200XT Series 61" Zero-Turn Mower, 26hp Kawasaki Engine & PTO Group - Kawasaki Parts Diagram

S200XT Series 61" Zero-Turn Mower, 26hp Kawasaki

Engine & PTO Group - Kawasaki Parts Diagram

  • Title

1

Snapper Pro 5105090

CLUTCH, WARNER, 200 ft lbs - 1.13"
(Superseded to 5105090YP)

$456.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5105069

MUFFLER, 27HP KAWASAKI, 5" CAN
(Superseded to 5105069YP)

$287.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

4

Snapper Pro 5043636

CLUTCH ANCHOR PAD
(Superseded to 5043636SM)

$11.99

$

In Stock, only 2 left!

0

5

Snapper Pro 5044617

WASHER, .34 X 1.25 X 10 GA
(Superseded to 5044617SM)

$8.49

$

In Stock, only 2 left!

0

6

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

7

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1 GD5 CZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 19

0

8

Snapper Pro 5021682

PULLEY, 4.75 OD X 1-1/8 BORE, BC-48
(Superseded to 5021682YP)

$48.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 5102865

BOLT, CRANKSHAFT,7/16-20X2-3/4, GD8
(Superseded to 5102865YP)

Note: (Torque crankshaft bolt to 65 ft. lbs. (88 Nm))

$5.49

$

In Stock, only 1 left!

0

10

Snapper Pro FX801V-ES00-S

ENGINE, 26HP KAWA, FX801V

$

$

Currently unavailable

11

Snapper Pro 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

Usually ships in 2-12 days

0

12

Snapper Pro 5025055X18

BOLT, 5/16-18 X 2-1/4 TFL, GD5 YZ
(Superseded to 5025055X18YP)

$3.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 5103944

GROMMET, 7/8"ID, 1/4" THICK STK
(Superseded to 5103944YP)

$2.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5414825A

ANCHOR, CLUTCH - BLK

$

$

Not available

15

Snapper Pro 5025585

BELLEVILLE WASHER 1.1875 X .442 X .089
(Superseded to 5025585YP)

$4.49

$

In Stock, only 2 left!

0

16

Snapper Pro 5050407X10

KEY, 1/4 SQ X 1-1/4
(Superseded to 5050407X10YP)

$3.99

$

In Stock, Qty 12

0

17

Snapper Pro 5025532

BOLT, 3/8-16 X 1-1/4, SF, PLT W/PATCH
(Superseded to 84003591)

$3.49

$

In Stock, only 4 left!

0

18

Snapper Pro 5047033

SPACER, 1.13 X 1.75 X 1.03, CZ
(Superseded to 5047033SM)

$13.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 5046904

SPACER, 1.13 X 1.75 X .25
(Superseded to 5046904YP)

$17.99

$

In Stock, only 1 left!

0

20

Snapper Pro 5102629

HOSE, OIL DRAIN, M20 X 2.5
(Superseded to 5102629FS)

$52.99

$

Usually ships in 2-12 days

0

21

Snapper Pro 5025249

BOLT, M8-1.25 X 20MM GD8.8
(Superseded to 5025249YP)

$2.99

$

Usually ships in 2-12 days

0

22

Snapper Pro 5025355

NUT, M8-1.25 SERR. FLANGE, CZ
(Superseded to 5025355SM)

$3.49

$

Usually ships in 2-12 days

0

23

Snapper Pro 5025531

SET SCREW, 5/16-18 X 3/8, KNURL, W/PATCH
(Superseded to 5025531YP)

Note: (SV)

$3.49

$

In Stock, only 2 left!

0
