S 200XT (5901664) - Snapper Pro S200XT Series 61" Zero-Turn Mower, 26hp Kawasaki Electrical Group S/N: 2017954956 & Above Parts Diagram

S200XT Series 61" Zero-Turn Mower, 26hp Kawasaki

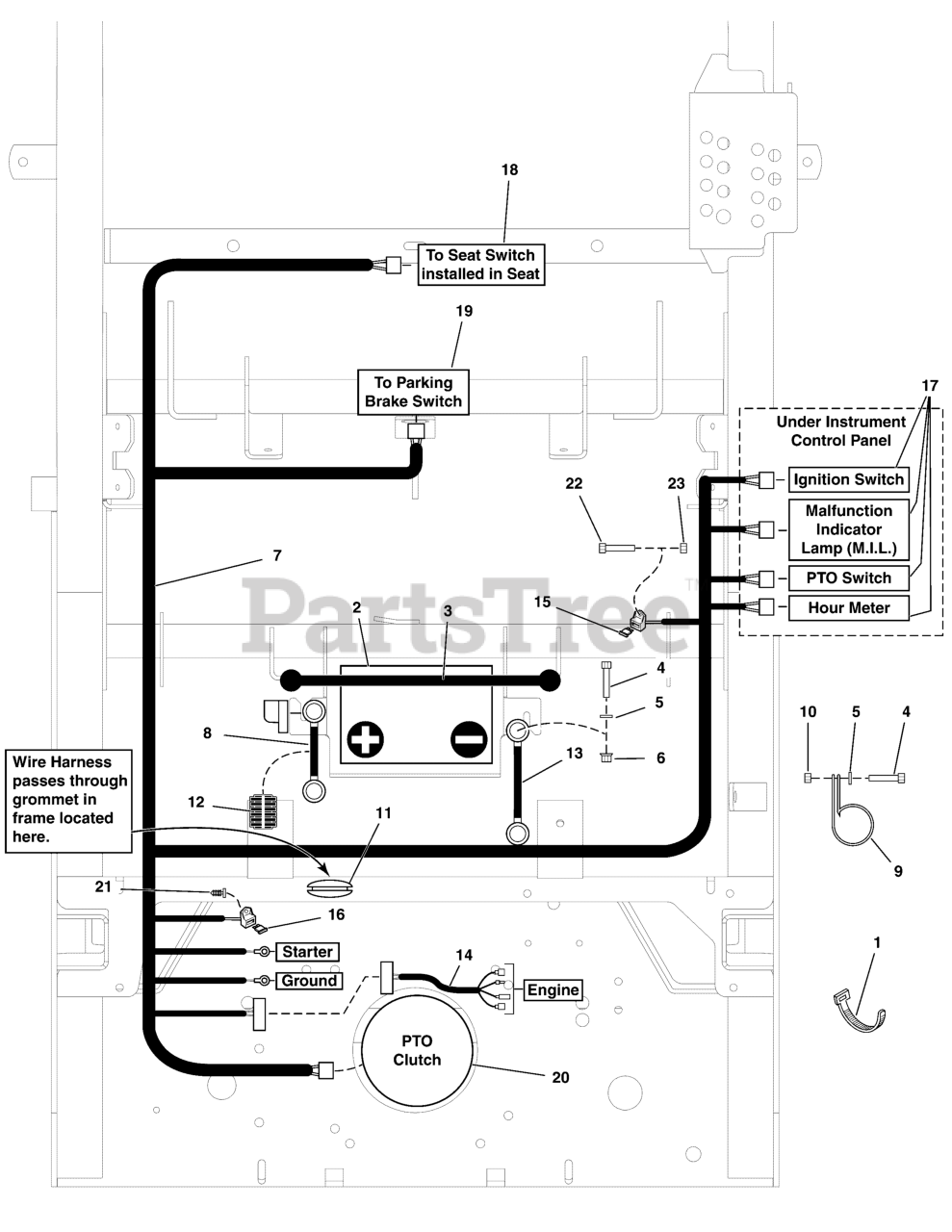

Electrical Group S/N: 2017954956 & Above Parts Diagram

  • Title

1

Snapper Pro 5021029

TIE, SELF-LOCKING, 12"
(Superseded to 5021029SM)

$

$

Not available

2

BATTERY, 11U1L, 350 CCA

Note: (Refer to Note: *)

$

$

Not available

3

Snapper Pro 1722009

STRAP, BATTERY, 14 LONG, Rubber
(Superseded to 1722009FS)

$9.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

5

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

6

Snapper Pro 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

7

Snapper Pro 5105535

HARNESS, Wiring, Large ZTR
(Superseded to 5105535YP)

$207.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 5021405

BATTERY CABLE, POS, 22, 1/4-5/16
(Superseded to 5021405SM)

$18.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 5021500

CLAMP, VINYL INSULATED, 1.00
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

10

Snapper Pro 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

11

Snapper Pro 5100716

GROMMET, 2" ID
(Superseded to 5100716YP)

$5.49

$

Usually ships in 2-12 days

0

12

Snapper Pro 5050927X17

WIRE LOOM, 3/8 ID X 17 IN
(Superseded to 5050927X17FS)

$3.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 5021406

BATTERY CABLE, NEG, 22, 1/4-5/16
(Superseded to 5021406SM)

$16.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5105303

WIRE HARNESS, JUMPER, KAWI - LARGE HARNE
(Superseded to 5105303FS)

$18.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 5102710

FUSE, ATO, 25 AMP
(Superseded to 5102710YP)

Note: (SV)

$3.49

$

Usually ships in 2-12 days

0

16

Snapper Pro 5101935

FUSE, ATO-15 (15 AMP)(SV)
(Superseded to 5101935YP)

Note: (SV)

$4.49

$

Usually ships in 2-12 days

0

17

Refer to: Instrument Control Panel Group

$

$

Not available

18

Refer to: Seat Mount & Floor Group

$

$

Not available

19

Refer to: Parking Brake Group

$

$

Not available

20

Refer to: Engine & PTO Group

$

$

Not available

21

Snapper Pro 5103761

FIR TREE MOUNT, PACKARD
(Superseded to 5103761YP)

$5.99

$

Usually ships in 2-12 days

0

22

Snapper Pro 5025179X4

SCREW, #10-24 X 1/2" ROUND PHILLIPS

$

$

Currently unavailable

23

Snapper Pro 5025271

NUT, Hex, Nylon Lock, #10-24
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0
