S 200XT (5901663) - Snapper Pro S200XT Series 61" Zero-Turn Mower, 26hp Briggs & Stratton Seat Mount and Floor Group S/N: 4000015530 and Below Parts Diagram

S200XT Series 61" Zero-Turn Mower, 26hp Briggs & Stratton

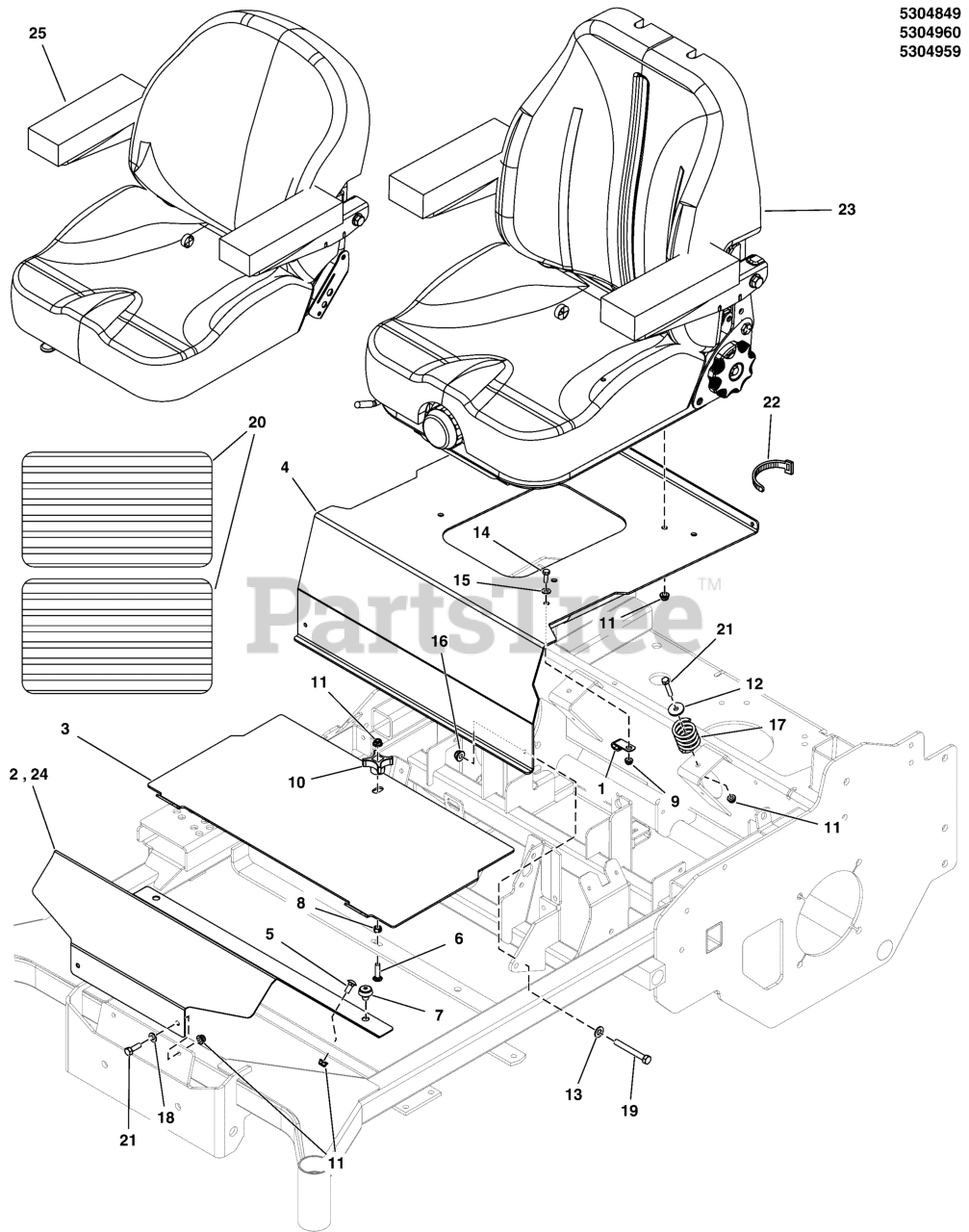

Seat Mount and Floor Group S/N: 4000015530 and Below Parts Diagram

  • Title

1

Snapper Pro 5025430

CLAMP, 5/16", DOUBLE, WIRE & TUBE
(Superseded to 5025430SM)

$2.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5414766D

PLATE, RIGID FLOOR, S320Z - RED

Note: (72" Models Only)

$

$

Currently unavailable

3

Snapper Pro 5410362D

PLATE, REMOVABLE FLOOR, 200XT - RED
(Superseded to 5410362DFS)

$109.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 5601003

ASSM, SEAT PLATE W/DECAL - DOM (5415991D)

$

$

Currently unavailable

5

Snapper Pro 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0

6

Snapper Pro 80003669

BOLT,5/16-18X1.500,CARRIAGE,SQ,GR5,ZC/CL
(Superseded to 703296)

$4.49

$

In Stock, only 4 left!

0

7

Snapper Pro 197546

MNT, VBRTN, RBBR
(Superseded to 197546GS)

$7.99

$

In Stock, only 2 left!

0

8

Snapper Pro 80003675

NUT, 5/16-1/8, HEX, CNTR LK, ZINC PHOS/OIL
(Superseded to 703164)

$3.49

$

In Stock, Qty 18

0

9

Snapper Pro 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

10

Snapper Pro 1670578

KNOB-INT THR .312-18 4-ARM 2.12WD 1.06LG
(Superseded to 1670578SM)

$13.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

Note: (Refer to Note: *)

$3.49

$

Usually ships in 2-12 days

0

12

Snapper Pro 5044617

WASHER, .34 X 1.25 X 10 GA
(Superseded to 5044617SM)

$8.49

$

In Stock, only 2 left!

0

13

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

14

Snapper Pro 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

15

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

16

Snapper Pro 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

17

Snapper Pro 7078299

SPRING, SEAT SUPPORT
(Superseded to 7078299SM)

$14.99

$

Usually ships in 2-12 days

0

18

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

19

Snapper Pro 5025013X24

BOLT, 3/8-16 X 3" GD5 CZ
(Superseded to 5025013X24SM)

$3.99

$

In Stock, only 1 left!

0

20

Snapper Pro 5101114

SAFETY WALK, 10.00 X 19.00
(Superseded to 5101114YP)

$68.99

$

Usually ships in 2-12 days

0

21

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 16

0

22

Snapper Pro 5021030

TIE, SELF-LOCKING, 6"
(Superseded to 5021030SM)

$2.99

$

In Stock, only 3 left!

0

23

Snapper Pro 5105099

SEAT, HIGH BACK,SEAT'SINC,SUSP, W/SWITCH
(Superseded to 5106745)

Note: (Models w/ Suspension Seat Only)

$1382.99

$

Usually ships in 2-12 days

0

24

Snapper Pro 5410363D

PLATE, RIGID FLOOR, 200XT - RED
(Superseded to 5410363DFS)

Note: (61" Models Only)

$96.99

$

Usually ships in 2-12 days

0

25

Snapper Pro 5105093

SEAT, C13, SEAT'SINC, 2016, W/SWITCH
(Superseded to 84003661)

Note: (Models w/ Standard Seat Only)

$1016.99

$

Usually ships in 2-12 days

0
