S 200XT (5901663) - Snapper Pro S200XT Series 61" Zero-Turn Mower, 26hp Briggs & Stratton Engine & PTO Group - Briggs & Stratton Commercial Turf & Vanguard Engines Parts Diagram

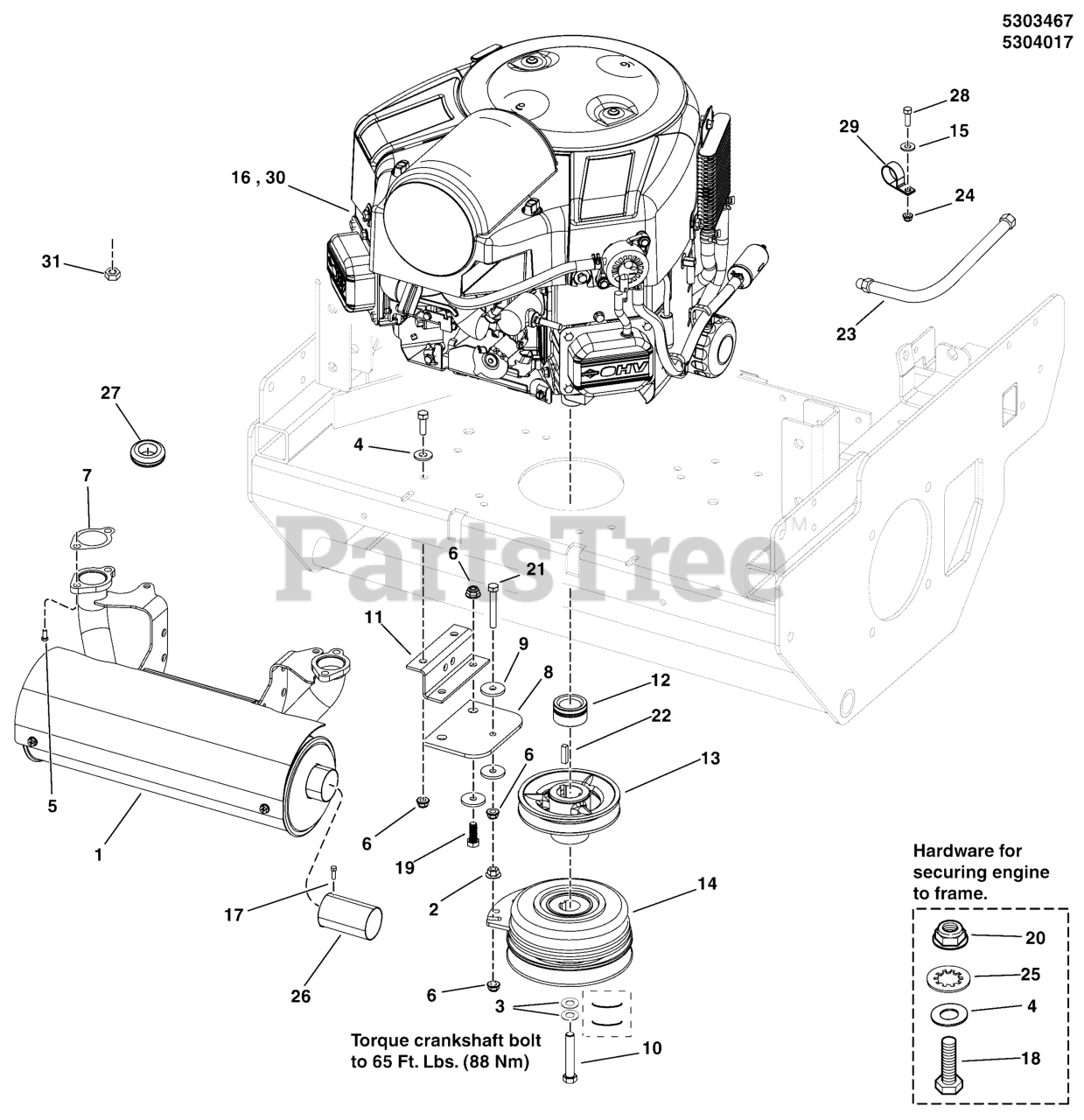

S200XT Series 61" Zero-Turn Mower, 26hp Briggs & Stratton

Engine & PTO Group - Briggs & Stratton Commercial Turf & Vanguard Engines Parts Diagram

  • Title

1

Snapper Pro 593249

MUFFLER, RIGHT OUTLET ASSY
(Superseded to 706900)

$222.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, Qty 12

0

3

Snapper Pro 5025585

BELLEVILLE WASHER 1.1875 X .442 X .089
(Superseded to 5025585YP)

$4.49

$

In Stock, only 4 left!

0

4

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

5

Snapper Pro 94480

SCREW-HEX SEMS LOCK WSHR 5/16-18X0.875
(Superseded to 690341)

Note: (SV)

$5.99

$

In Stock, only 3 left!

0

6

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

7

Snapper Pro 273485

GASKET, EXHAUST
(Superseded to 690970)

Note: (SV)

$4.99

$

In Stock, Qty 20+

0

8

Snapper Pro 5043636

CLUTCH ANCHOR PAD
(Superseded to 5043636SM)

$11.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 5044617

WASHER, .34 X 1.25 X 10 GA
(Superseded to 5044617SM)

$8.49

$

In Stock, only 2 left!

0

10

Snapper Pro 5102865

BOLT, CRANKSHAFT,7/16-20X2-3/4, GD8
(Superseded to 5102865YP)

$5.49

$

In Stock, only 2 left!

0

11

Snapper Pro 5414825A

ANCHOR, CLUTCH - BLK

$

$

Not available

12

Snapper Pro 5100926

SPACER, 1.13 X 1.75 X 1.35, CZ
(Superseded to 5100926YP)

$27.99

$

In Stock, only 1 left!

0

13

Snapper Pro 5021682

PULLEY, 4.75 OD X 1-1/8 BORE, BC-48
(Superseded to 5021682YP)

$48.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5105090

CLUTCH,WARNER,200 'lbs,1.13
(Superseded to 5105090YP)

$456.99

$

In Stock, only 3 left!

0

15

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

16

Snapper Pro 49T877-0010-G1

ENGINE, 27HP B&S COMM TURF, 1-1/8 X 4.29

Note: (Commercial Turf Models)

$2467.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 5025470

SCREW,SELF-TAP,#8-32 X 3/8,WASH HEX, CZ
(Superseded to 5025470YP)

$3.49

$

In Stock, only 2 left!

0

18

Snapper Pro 5025025X14

BOLT, 5/16-24 X 1-3/4, GD8, PHOS
(Superseded to 5025025X14YP)

$4.49

$

Usually ships in 2-12 days

0

19

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1 GD5 CZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

20

Snapper Pro 5025616

NUT, 5/16-24, TOP LOCK FLANGE, GD8 PHOS
(Superseded to 5025616YP)

$3.99

$

In Stock, only 2 left!

0

21

Snapper Pro 5025055X18

BOLT, 5/16-18 X 2-1/4 TFL, GD5 YZ
(Superseded to 5025055X18YP)

$3.99

$

In Stock, only 1 left!

0

22

Snapper Pro 5050407X10

KEY, 1/4 SQ X 1-1/4
(Superseded to 5050407X10YP)

$3.99

$

In Stock, only 4 left!

0

23

Snapper Pro 5048681

HOSE, OIL DRAIN
(Superseded to 5048681SM)

$18.99

$

Usually ships in 2-12 days

0

24

Snapper Pro 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

25

Snapper Pro 5025188

WASHER, 5/16 INT. TOOTH LOCK
(Superseded to 5025188SM)

$3.99

$

In Stock, only 1 left!

0

26

Snapper Pro 5104348

EXTENSION, TAILPIPE, 3", BLACK
(Superseded to 5104348YP)

$14.99

$

Usually ships in 2-12 days

0

27

Snapper Pro 5103944

GROMMET, 7/8"ID, 1/4" THICK STK
(Superseded to 5103944YP)

$2.99

$

Usually ships in 2-12 days

0

28

HHCS, 1/4-20 X 0.625, GR5, ZINC/CLEAR

$

$

Not available

29

Snapper Pro 5021500

CLAMP, VINYL INSULATED, 1.00
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

30

ENGINE, 26HP, B&S, VANGUARD

Note: (Vanguard Models)

$

$

Not available

31

Snapper Pro 5023216

NUT, 5/16-24 JAM
(Superseded to 5023216SM)

Note: (Vanguard Models)

$2.99

$

Usually ships in 2-12 days

0
