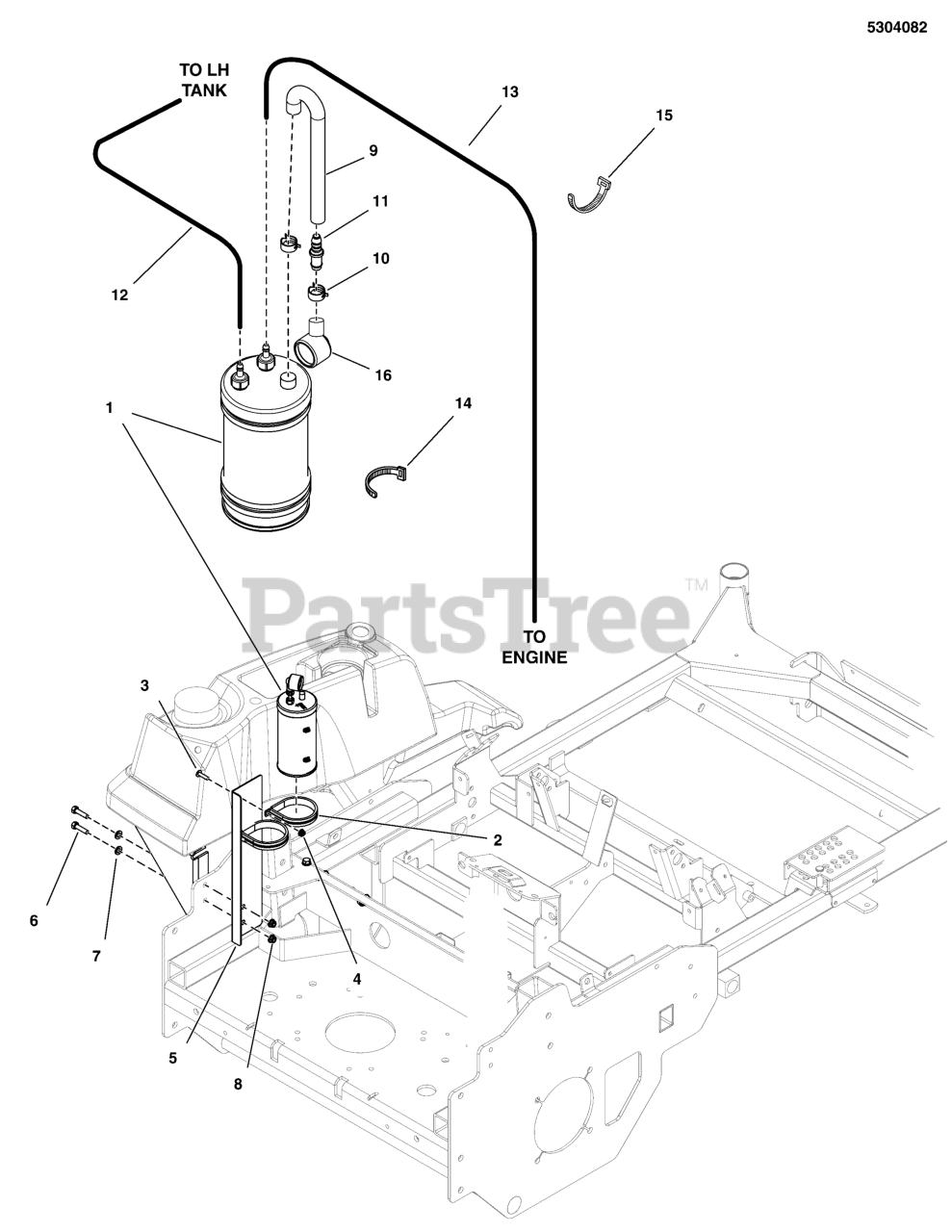

S 200XT (5901423) - Snapper Pro S200XT Series 61" Zero-Turn Mower, 27hp Briggs & Stratton, CARB Evap Canister Group - CAL Models w/ One Fuel Tank Parts Diagram

S200XT Series 61" Zero-Turn Mower, 27hp Briggs & Stratton, CARB

Evap Canister Group - CAL Models w/ One Fuel Tank Parts Diagram

  • Title

1

Snapper Pro 313036

CNSTR, CARB, 6 GAL
(Superseded to 313036GS)

$217.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5103055

CLAMP, 3" ID, CUSHIONED, STAINLESS
(Superseded to 5103055YP)

$7.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5025299X6

USE 5106757 - SCREW,1/4-20X3/4, ZINC
(Superseded to 5106757)

$3.49

$

Usually ships in 2-12 days

0

4

Snapper Pro 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

5

Snapper Pro 5413351A

PLATE, CARB CAN, S200XT, LH - BLK

$

$

Currently unavailable

6

Snapper Pro 5025011X10

BOLT, 5/16-18 X 1-1/4 GD5 CZ
(Superseded to 5025055X10YP)

$3.49

$

In Stock, only 2 left!

0

7

Snapper Pro 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

9

Snapper Pro 5103092

HOSE, FORMED, EVAP CANISTER
(Superseded to 5103092YP)

$33.99

$

In Stock, only 3 left!

0

10

Snapper Pro 5023268

CLAMP, HOSE
(Superseded to 5023268SM)

$3.49

$

Usually ships in 2-12 days

0

11

Snapper Pro 5103080

FITTING, STRAIGHT, 10MMX10MM, PLASTIC
(Superseded to 5103080YP)

$3.49

$

Usually ships in 2-12 days

0

12

Snapper Pro 7700552X10

HOSE, VAPOR, 5MM ID, 10.00 LG

$

$

Currently unavailable

13

Snapper Pro 7700552X58

HOSE, VAPOR, 5MM ID, 58.00 LG

$

$

Currently unavailable

14

Snapper Pro 5100772

TIE, SELF-LOCKING, 15"

$

$

Currently unavailable

15

Snapper Pro 5021029

TIE, SELF-LOCKING, 12"
(Superseded to 5021029SM)

$

$

Not available

16

Snapper Pro 1752800

DUST FILTER, CANISTER
(Superseded to 1752800YP)

Note: (SV)

$15.99

$

In Stock, only 1 left!

0
