S 200XT (5901286) - Snapper Pro S200XT Series 72" Zero-Turn Mower, 32hp Briggs & Stratton Instrument Control Panel Group S/N: 2017681136 & Below Parts Diagram

S200XT Series 72" Zero-Turn Mower, 32hp Briggs & Stratton

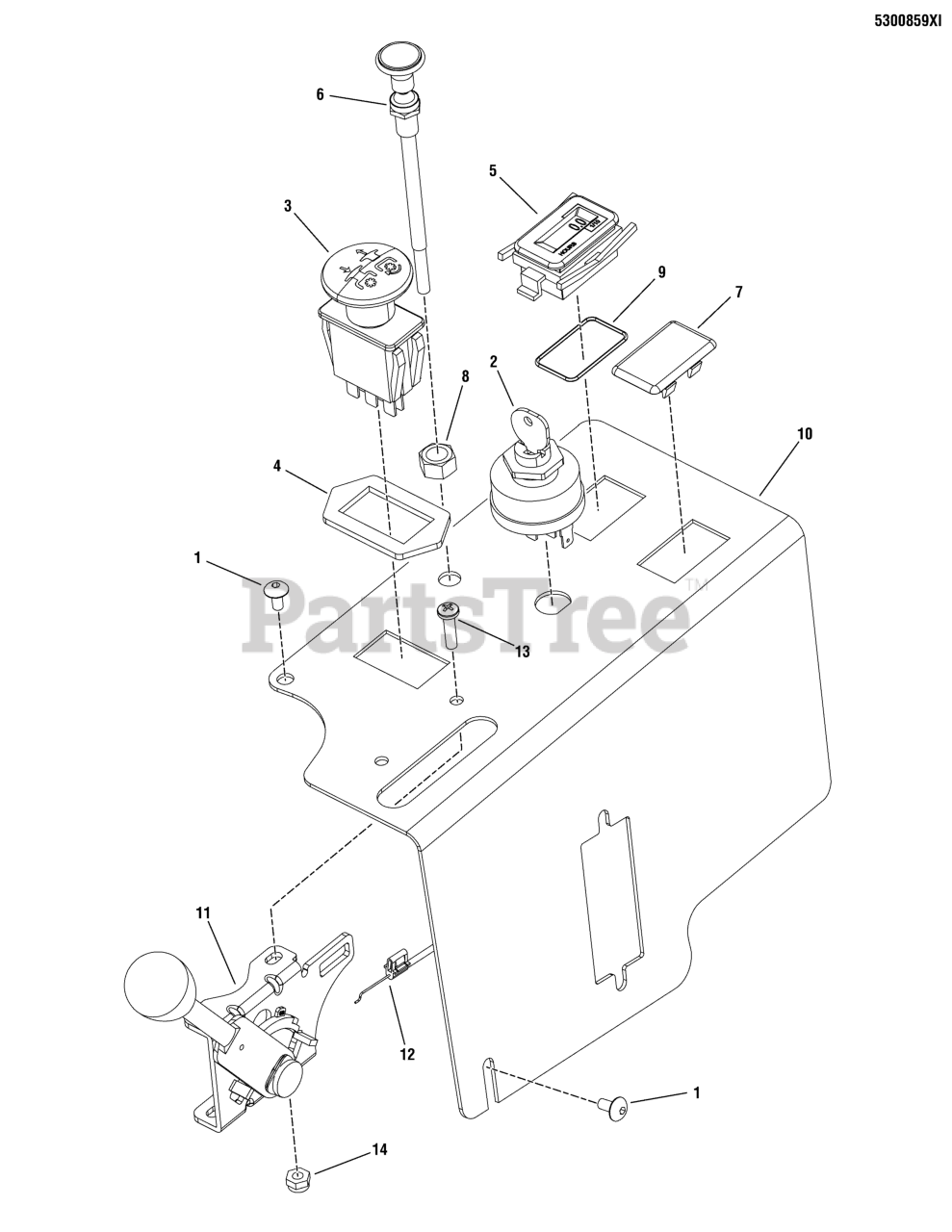

Instrument Control Panel Group S/N: 2017681136 & Below Parts Diagram

  • Title
1

Snapper Pro 5025299X4

SCREW, ALLEN HEAD 1/4-20X.500 ZINC PHOS
(Superseded to 5106469)

$2.49

$

In Stock, Qty 18

0

2

Snapper Pro 5020927

SWITCH, IGNITION, 6 POST
(Superseded to 5020927FS)

$33.99

$

In Stock, Qty 7

0

3

Snapper Pro 5022180

SWITCH, BLADE ENGAGEMENT
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

4

Snapper Pro 5022222

RING, SWITCH RETAINER
(Superseded to 5022222SM)

$4.49

$

In Stock, only 1 left!

0

5

* HOUR METER, ASSEMBLY

Note: (S/N: 2015551938 & Above)

$

$

Not available

5

Snapper Pro 5102417

HOUR METER

Note: (S/N: 2015551937 & Below)

$64.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5046501

CABLE, CHOKE CONTROL, 47
(Superseded to 5046501SM)

Note: (All Other Models)

$55.99

$

In Stock, only 1 left!

0

6

Snapper Pro 5100184

CABLE, CHOKE CONTROL, 43.5"
(Superseded to 5100184SM)

Note: (Models 5901368 & 5901379)

$40.99

$

In Stock, Qty 5

0

7

Snapper Pro 1709188

PLUG, .820X1.44 HOLE, BLACK PLASTIC
(Superseded to 1709188SM)

$4.99

$

In Stock, only 1 left!

0

8

Snapper Pro 5025035

NUT, 3/8-24 HEX
(Superseded to 5025035SM)

$3.49

$

Usually ships in 2-12 days

0

9

Snapper Pro 5022269

O-RING, 7/8 ID X 1/16 W
(Superseded to 5022269SM)

$3.49

$

Usually ships in 2-12 days

0

10

Snapper Pro 5402769A

PLATE, CONTROL PANEL, SNP - BLK

Note: (S/N: 2016950122 & Below)

$35.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5411620A

PLATE, CONTROL PANEL, S200XT
(Superseded to 5411620AAFS)

Note: (S/N: 2016950123 & Above)

$29.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5101537

LEVER, THROTTLE CONTROL, HEAVY-DUTY
(Superseded to 5101537SM)

$48.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5101073

CABLE, THROTTLE, 42"
(Superseded to 5101073SM)

$33.99

$

In Stock, only 2 left!

0

13

Snapper Pro 5025179X6

SCREW, #10-24 X 3/4 ROUND PHILLIPS
(Superseded to 5025179X6SM)

$3.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5025271

NUT, #10-24 HEX NYLON LOCK
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0
