S 200XT (5901286) - Snapper Pro S200XT Series 72" Zero-Turn Mower, 32hp Briggs & Stratton 72" Mower Deck - Hanger Bars - S/N: 2016950122 & Below Parts Diagram

S200XT Series 72" Zero-Turn Mower, 32hp Briggs & Stratton

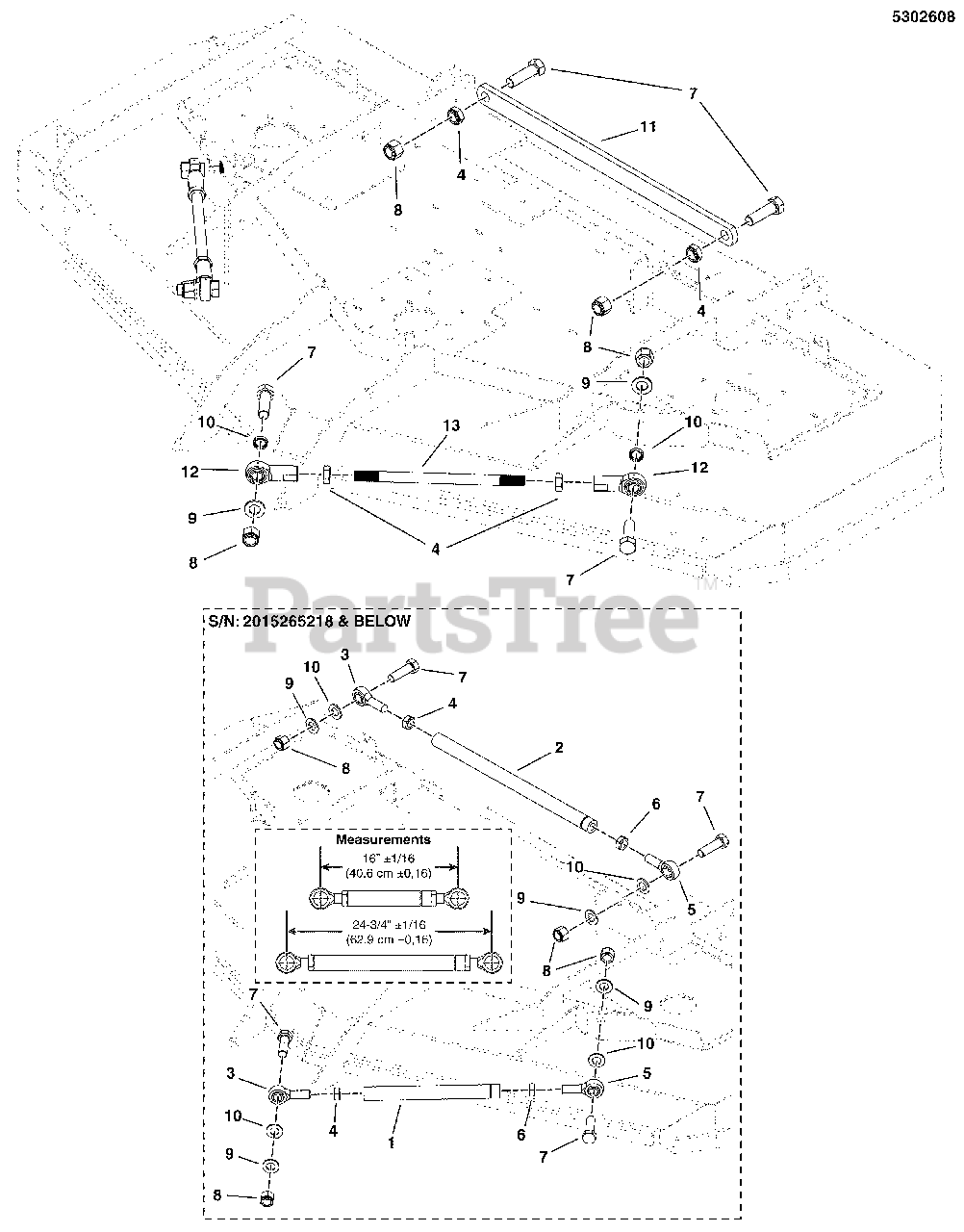

72" Mower Deck - Hanger Bars - S/N: 2016950122 & Below Parts Diagram

  • Title

1

Snapper Pro 5102698

ROD, DECK STABILIZER, 12.31" CZ

Note: (S/N: 2015265218 & Below)

$81.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5102699

ROD, DECK STABILIZER, 19.91" CZ

Note: (S/N: 2015265218 & Below)

$

$

Not available

3

Snapper Pro 5022039

BALL JOINT, 3/4-16, MALE
(Superseded to 5022039SM)

Note: (S/N: 2015265218 & Below)

$37.99

$

In Stock, Qty 13

0

4

Snapper Pro 5025093

NUT, 3/4-16 HEX JAM
(Superseded to 5025093SM)

$4.49

$

In Stock, only 1 left!

0

5

Snapper Pro 5102756

BALL JOINT, 3/4-16 MALE, LH
(Superseded to 5102756FS)

Note: (S/N: 2015265218 & Below)

$32.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5025580

NUT, 3/4-16 HEX JAM, LH
(Superseded to 5025580FS)

Note: (S/N: 2015265218 & Below)

$6.49

$

Usually ships in 2-12 days

0

7

Snapper Pro 5025265X20

BOLT, 3/4-16 X 2-1/2 YZ GD5
(Superseded to 5025265X20YP)

$10.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 5025284

NUT, 3/4-16 HEX NYLON LOCK
(Superseded to 5025284SM)

$3.49

$

In Stock, only 3 left!

0

9

Snapper Pro 5025160

WASHER, 3/4 SAE
(Superseded to 5025160SM)

$3.99

$

In Stock, Qty 7

0

10

Snapper Pro 5047461

SPACER, .76 X 1.00 X .25
(Superseded to 5047461SM)

$4.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5408678D

BAR, PAN HARD, S200XT-RED
(Superseded to 5408678DFS)

Note: (S/N: 2015265219 & Above)

$97.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5103246

BALL JOINT, 3/4-16, FEMALE
(Superseded to 5103246YP)

Note: (S/N: 2015265219 & Above)

$30.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 5103237A

ROD, 3/4-16 X 12.31

Note: (S/N: 2015265219 & Above)

$

$

Not available
