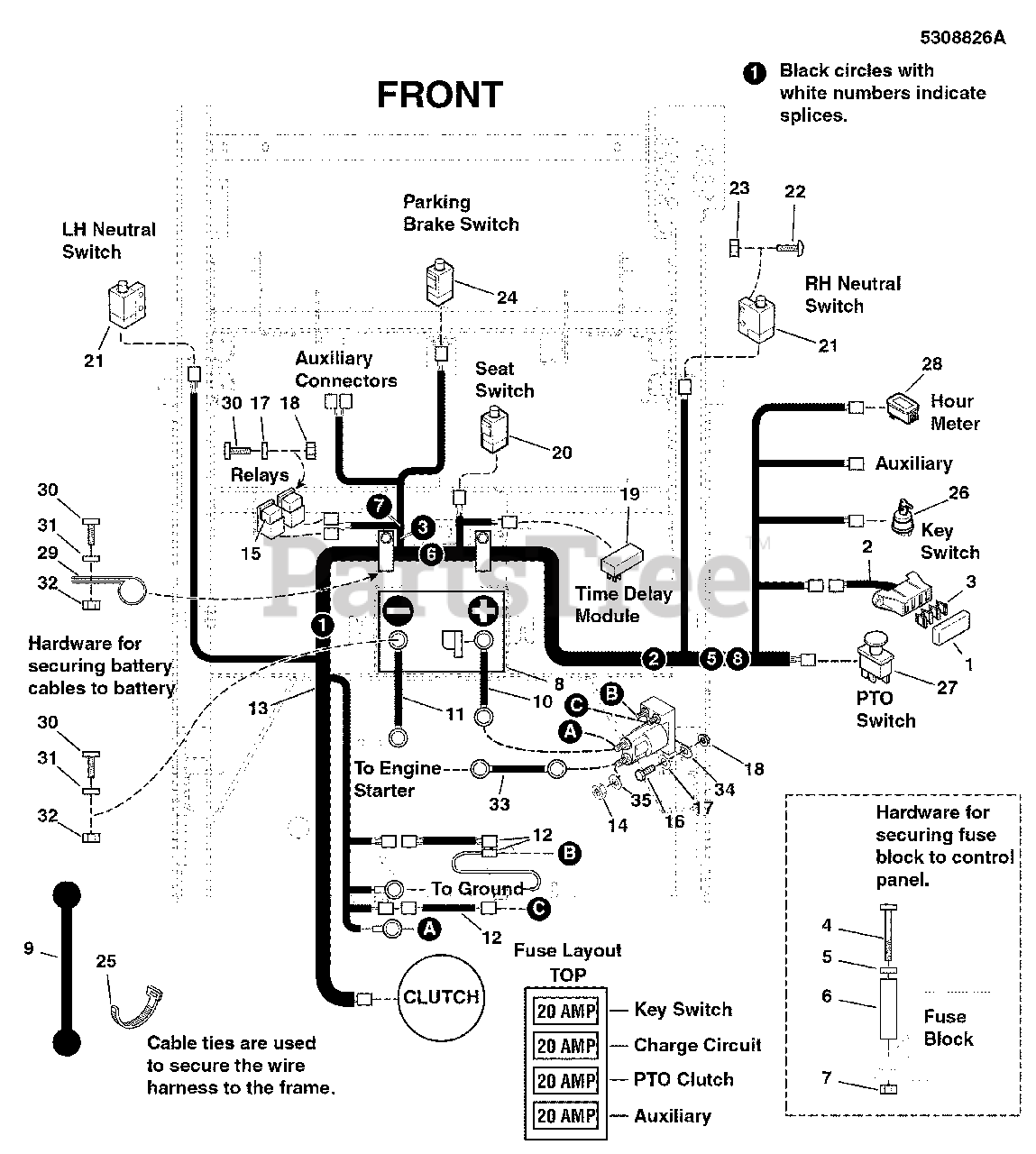

S 200XT (5901280) - Snapper Pro S200XT Series 61" Zero-Turn Mower, 27hp Briggs & Stratton Electrical Group S/N: 2016950122 & Below Parts Diagram

S200XT Series 61" Zero-Turn Mower, 27hp Briggs & Stratton

Electrical Group S/N: 2016950122 & Below Parts Diagram

  • Title

1

Snapper Pro 5022805

COVER, VINYL FUSEBLOCK
(Superseded to 5022805SM)

$6.49

$

Usually ships in 2-12 days

0

2

Snapper Pro 5401328

WIRE HARNESS, FUSE BLOCK - IS2000
(Superseded to 5401328SM)

$73.99

$

In Stock, only 1 left!

0

3

Snapper Pro 5021603

FUSE, ATO, 20 AMP (SV)
(Superseded to 5021603SM)

$4.99

$

In Stock, only 2 left!

0

4

Snapper Pro 5025270X16

SCREW, #10-24 X 2 ROUND PHILLIPS

$

$

Currently unavailable

5

Snapper Pro 5023499

WASHER, #10 SAE
(Superseded to 5023499SM)

$3.49

$

Usually ships in 2-12 days

0

6

Snapper Pro 5061763

SPACER, .20 X .38 X 1.25
(Superseded to 5061763FS)

$5.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 5025271

NUT, #10-24 HEX NYLON LOCK
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

8

BATTERY, WET (BCIU1, 340 CCA)

$

$

Not available

9

Snapper Pro 1722009

STRAP-BLACK RUBB
(Superseded to 1722009FS)

$9.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5047136

BATTERY CABLE, POSITIVE, 15
(Superseded to 5047136SM)

$22.99

$

In Stock, only 1 left!

0

11

Snapper Pro 5047690

BATTERY CABLE, NEGATIVE, 14"
(Superseded to 5047690SM)

$16.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5402694

WIRE HARNESS, BRIGGS JUMPER - COMMERCIAL TURF

$71.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 5408826

WIRE HARNESS, MAIN, S200XT

$385.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5023216

NUT, 5/16-24 JAM
(Superseded to 5023216SM)

$2.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 5021766

RELAY, 12V, 40A
(Superseded to 5021766SM)

$24.99

$

Usually ships in 2-12 days

0

16

HHCS, 1/4-20 X 0.625, GR5, ZINC/CLEAR

$

$

Not available

17

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

18

Snapper Pro 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

19

Snapper Pro 5023310

MODULE, TIME DELAY
(Superseded to 5023310SM)

$114.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 5022198

SWITCH, PLUNGER, NO/NO SNAP-IN
(Superseded to 5022198SM)

$15.99

$

In Stock, Qty 7

0

21

Snapper Pro 5021451

SWITCH, PLUNGER, N.O.
(Superseded to 5021451SM)

$11.99

$

In Stock, Qty 13

0

22

Snapper Pro 5025179X6

SCREW, #10-24 X 3/4 ROUND PHILLIPS
(Superseded to 5025179X6SM)

$3.99

$

Usually ships in 2-12 days

0

23

Snapper Pro 5025029

NUT, #10-24 HEX
(Superseded to 5025029SM)

$2.99

$

Usually ships in 2-12 days

0

24

Snapper Pro 7022886

SWITCH, DP NO/NC SNAP-IN
(Superseded to 7022886YP)

$14.99

$

In Stock, Qty 20+

0

25

Snapper Pro 5021029

CABLE TIE, 12
(Superseded to 5021029SM)

$

$

Not available

26

Snapper Pro 5020927

SWITCH, IGNITION, 6 POST
(Superseded to 5020927FS)

$33.99

$

In Stock, Qty 7

0

27

Snapper Pro 5022180

SWITCH, BLADE ENGAGEMENT
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

28

Snapper Pro 5102417

HOUR METER

$64.99

$

Usually ships in 2-12 days

0

29

Snapper Pro 5021500

CLAMP, VINYL INSULATED
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

30

Snapper Pro 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

31

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

32

Snapper Pro 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

33

Snapper Pro 5044471

BATTERY CABLE, POSITIVE, 15
(Superseded to 5044471FS)

$21.99

$

Usually ships in 2-12 days

0

34

Snapper Pro 1724815

SOLENOID-4 POLE 12 VOLT DC (TROMBETTA)
(Superseded to 1724815FS)

$29.99

$

Usually ships in 2-12 days

0

35

Snapper Pro 5023217

WASHER, 5/16 LIGHT LOCK
(Superseded to 5023217SM)

$3.49

$

Usually ships in 2-12 days

0
