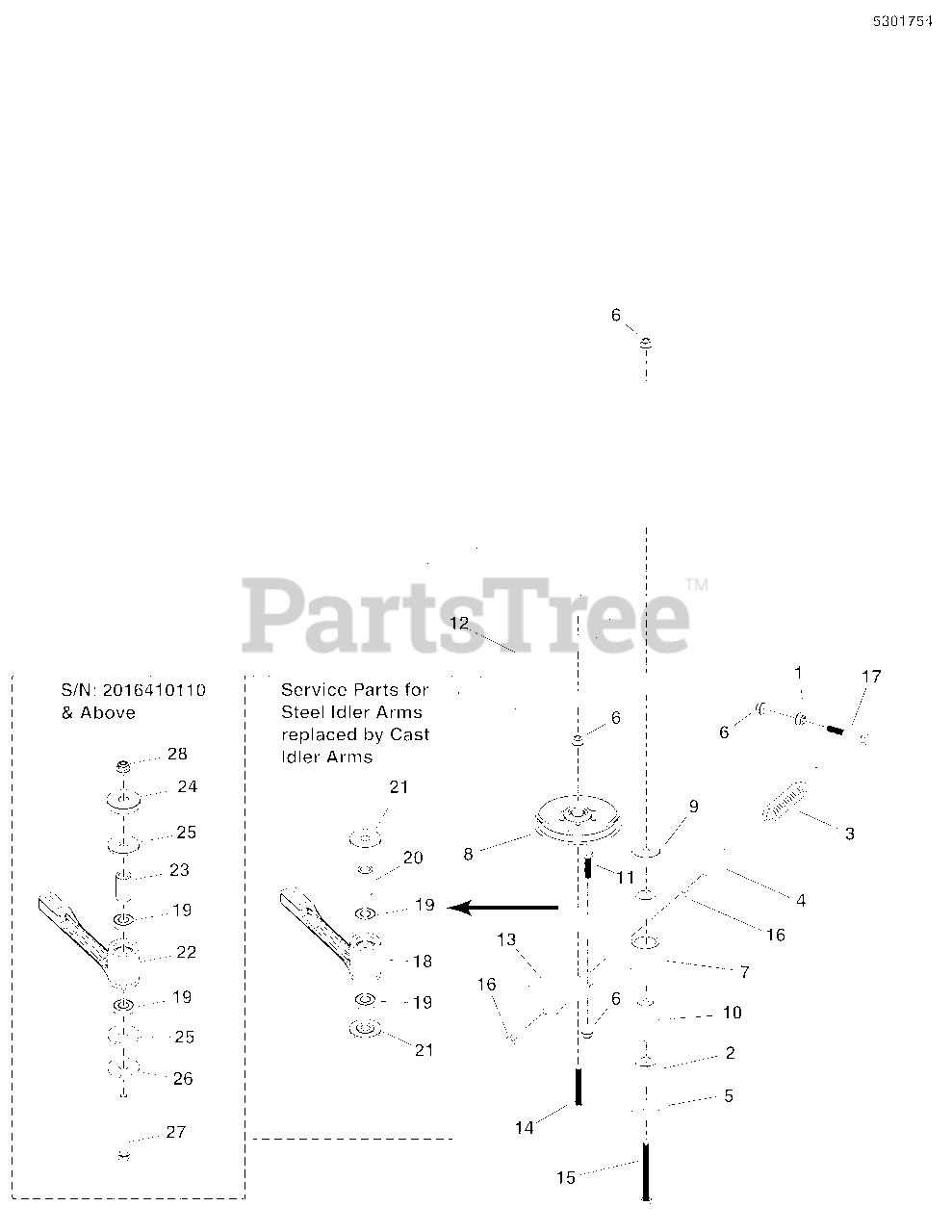

S 200XT (5901233.0) - Snapper Pro S200XT Series 61" Zero-Turn Mower, 29hp Kohler (SN: 2016950122 & Below) Transaxle Drive Group S/N: 2017681136 & Below Parts Diagram

S200XT Series 61" Zero-Turn Mower, 29hp Kohler

Transaxle Drive Group S/N: 2017681136 & Below Parts Diagram

  • Title

1

Snapper Pro 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

2

Snapper Pro 5022157

BUSHING, BRASS, 1.25X1X1.25
(Superseded to 5022157SM)

Note: (S/N: 2016410109 & Below)

$12.99

$

In Stock, only 2 left!

0

3

Snapper Pro 5022847

SPRING, EXTENSION, SWIVEL END
(Superseded to 5022847SM)

Note: (coil-to-coil measurement: 6-3/8" (16.2 cm)

$34.99

$

In Stock, Qty 8

0

4

Snapper Pro 5023497

EYE BOLT, 3/8-16 X 5, 2.88THRD, 1EYE, CZ
(Superseded to 5023497SM)

$9.49

$

In Stock, only 1 left!

0

5

Snapper Pro 5025305

WASHER, .41 X 1.75 X .14
(Superseded to 5025305SM)

Note: (S/N: 2016410109 & Below)

$3.99

$

In Stock, only 2 left!

0

6

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

Note: (Qty: 3 - S/N: 2016410109 & Below)

$4.49

$

In Stock, Qty 20+

0

7

NO LONGER AVAILABLE, USE ITEM #18

Note: (S/N: 2016410109 & Below)

$

$

Not available

8

Snapper Pro 5101193

PULLEY-IDLER, 5.00OD, .385ID, .75W, STL
(Superseded to 5101193YP)

Note: (installed with hub pointing down)

$65.99

$

In Stock, only 3 left!

0

9

Snapper Pro 5101465

SPACER, .39 X 1.75 X .63, YZ
(Superseded to 5101465YP)

Note: (S/N: 2016410109 & Below)

$19.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5102004

SPACER, .39 X 1.000 X 2.55, SS
(Superseded to 5102004YP)

Note: (S/N: 2016410109 & Below)

$27.99

$

In Stock, only 1 left!

0

11

Snapper Pro 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5102013

BELT, HB SEC, 81.2EL
(Superseded to 5107757FS)

$90.99

$

In Stock, Qty 14

0

13

Snapper Pro 5405377B

PLATE, IDLER ARM ADAPTER - RED

Note: (S/N: 2016950122 & Below)

$

$

Currently unavailable

13

Snapper Pro 5413342A

PLATE, IDLER ARM ADAPTER - BLK

Note: (S/N: 2016950123 & Above)

$

$

Currently unavailable

14

Snapper Pro 5025013X20

BOLT, 3/8-16 X 2-1/2" GD5 CZ
(Superseded to 84007037)

$2.99

$

In Stock, only 4 left!

0

15

Snapper Pro 5025013X32

BOLT, 3/8-16 X 4" GD5 CZ
(Superseded to 5025013X32SM)

Note: (S/N: 2016410109 & Below)

$3.99

$

In Stock, Qty 11

0

16

Snapper Pro 5025034

NUT, 3/8-16 HEX
(Superseded to 5025034SM)

$2.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

Usually ships in 2-12 days

0

18

Snapper Pro 5406895

ASSM, IDLER ARM, PUMP DRIVE

Note: (SV)(Includes items #19 - 21)(5101178A)

$171.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 7078243

BEARING, BALL, AXLE
(Superseded to 7078243YP)

$10.99

$

In Stock, Qty 18

0

20

Snapper Pro 5102580

SPACER, .39 X .88 X 1.53, CZ
(Superseded to 5102580YP)

$11.99

$

Usually ships in 2-12 days

0

21

Snapper Pro 5102579

SPACER, IDLER ARM, T-STYLE, CZ
(Superseded to 5102579YP)

$20.99

$

Usually ships in 2-12 days

0

22

Snapper Pro 5411066

ASSM, IDLER ARM, PUMP DRIVE, 1/2ID, CAST

Note: (SV)(S/N: 2016410110 & Above)

$130.99

$

Usually ships in 2-12 days

0

23

Snapper Pro 5103812

SPACER, .52 X .84 X 1.53, PM
(Superseded to 5103812YP)

Note: (S/N: 2016410110 & Above)

$7.99

$

In Stock, Qty 7

0

24

Snapper Pro 5100314

SPACER, .52 X 1.75 X .63, CZ
(Superseded to 5100314YP)

Note: (S/N: 2016410110 & Above)

$15.99

$

Usually ships in 2-12 days

0

25

Snapper Pro 5103262

SPACER, IDLER ARM, 1/2, PM
(Superseded to 5103262YP)

Note: (S/N: 2016410110 & Above)

$7.99

$

In Stock, Qty 16

0

26

Snapper Pro 5103282

WASHER, .52 X 1.75 X .14, CZ
(Superseded to 5103282YP)

Note: (S/N: 2016410110 & Above)

$3.99

$

In Stock, only 1 left!

0

27

Snapper Pro 5025017X36

BOLT, 1/2-13 X 4-1/2 GD5 YZ
(Superseded to 5025017X36SM)

Note: (S/N: 2016410110 & Above)

$6.49

$

In Stock, only 2 left!

0

28

Snapper Pro 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

Note: (S/N: 2016410110 & Above)

$3.49

$

In Stock, Qty 20+

0
