S 200XT (5901023.0) - Snapper Pro S200XT 61" Zero-Turn Mower, 28hp Briggs & Stratton (SN: 2016950122 & Below) 61" Mower Deck Group - Housing, Covers, Spindles & Blades S/N: 2017681136 & Below Parts Diagram

S200XT 61" Zero-Turn Mower, 28hp Briggs & Stratton

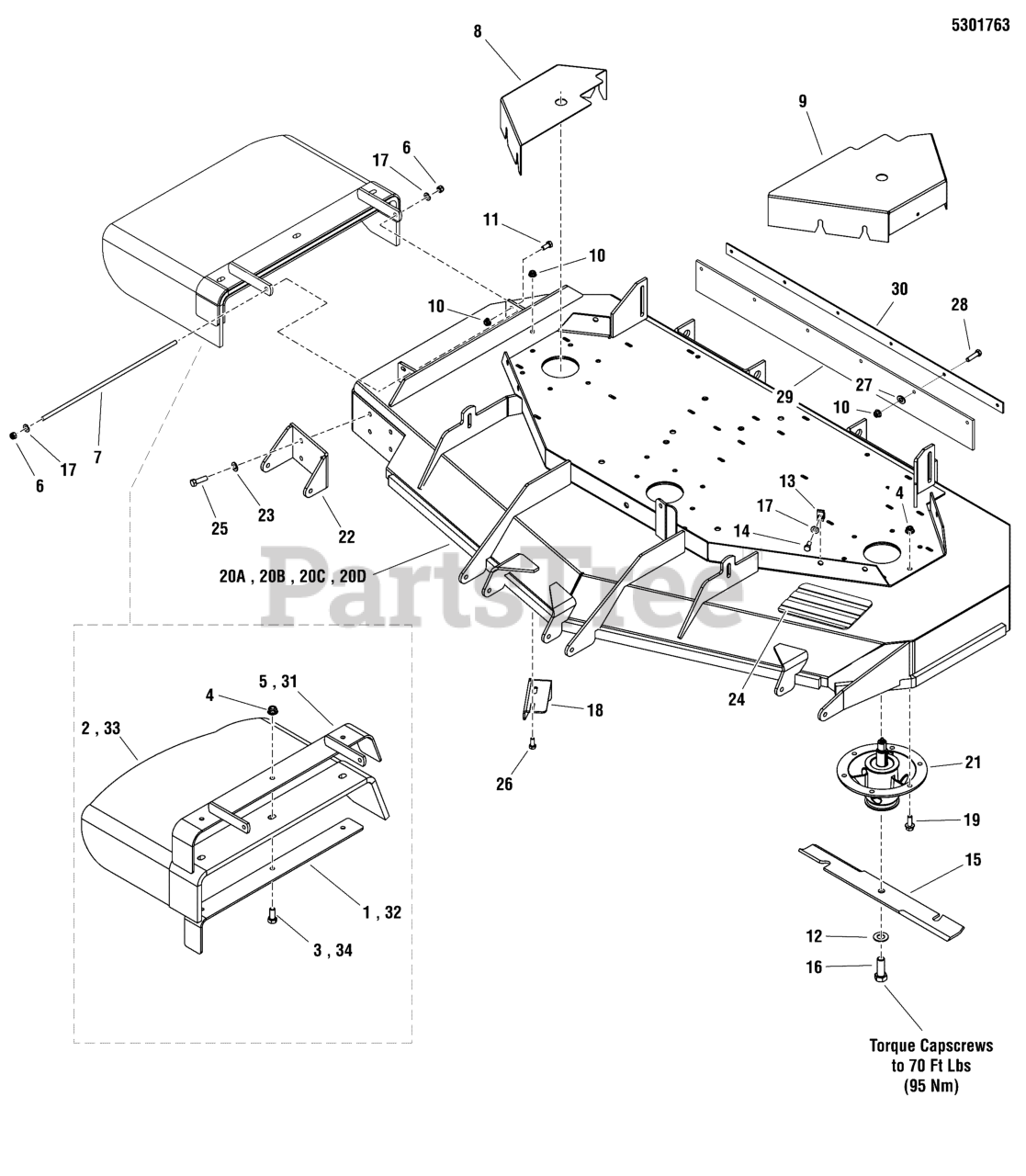

61" Mower Deck Group - Housing, Covers, Spindles & Blades S/N: 2017681136 & Below Parts Diagram

  • Title

1

Snapper Pro 5408018A

SUPPORT, DISCHARGE CHUTE, 61/72 - BLK
(Superseded to 5408018AFS)

Note: (S/N: 2017094785 & Below)

$22.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5404834

CHUTE, DISCHARGE, BEND RUBBER (SV)

Note: (S/N: 2017094785 & Below)

$

$

Currently unavailable

3

Snapper Pro 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

Note: (S/N: 2017094785 & Below)

$3.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

5

Snapper Pro 5404716A

WELD, FRAME CHUTE, 61 - BLK
(Superseded to 5404716AYP)

Note: (S/N: 2017094785 & Below)

$100.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 11

0

7

Snapper Pro 5061300

ROD MOUNT, CHUTE 61"
(Superseded to 5061300FS)

$11.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 5405308D

GUARD, RH - 61 - S200XI - RED
(Superseded to 5405308DYP)

$53.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 5405484D

GUARD, 61 - LH - RED
(Superseded to 5405484DYP)

$60.99

$

In Stock, only 1 left!

0

10

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

11

Snapper Pro 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

12

Snapper Pro 5025477

WASHER, 5/8 GRADE 8, YZ
(Superseded to 5025477SM)

$3.99

$

In Stock, Qty 12

0

13

Snapper Pro 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

14

Snapper Pro 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

15

Snapper Pro 5101755S

BLADE, 21" (SET OF 3)

$

$

Not available

16

Snapper Pro 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

$3.49

$

Usually ships in 2-12 days

0

17

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

18

Snapper Pro 5401344A

PLATE, DEFLECTOR - BLK
(Superseded to 84003247)

$11.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 5025390X8

BOLT, 3/8-16 X 1, FLANGE, GD 5, CZ
(Superseded to 5025390X8FS)

$3.49

$

Usually ships in 2-12 days

0

20A

Snapper Pro 5600832

DECK SHELL W/DECALS,61-200XT-SPR/MASS

Note: (S/N: 2016953546 & Above)

$2792.99

$

Usually ships in 2-12 days

0

20B

Snapper Pro 5600764

DECK SHELL W/ DECALS, 200XT 61 - SPR RED

Note: (S/N: 2016788094 - 2016953545)

$2792.99

$

Usually ships in 2-12 days

0

20C

Snapper Pro 5600436

DECK SHELL W/ DECALS, 61" - S200XT

Note: (S/N: 2014345773 - 2016788093)

$2792.99

$

Usually ships in 2-12 days

0

20D

Snapper Pro 5600337

DECK SHELL W/ DECALS, 61" - S200XT

Note: (S/N: 2014345772 & Below)

$

$

Not available

21

Snapper Pro 5100993

SPINDLE ASSM, CAST IRON 8.0-6 BOLT
(Superseded to 5100993SM)

$219.99

$

In Stock, Qty 15

0

22

Snapper Pro 5408810D

PLATE, BRACKET, ANTI SCALP - RED
(Superseded to 5408810DYP)

$41.99

$

Usually ships in 2-12 days

0

23

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

24

Snapper Pro 5101005

SAFETY WALK, 9.75 X 6.00
(Superseded to 5101005SM)

$15.99

$

In Stock, only 1 left!

0

25

Snapper Pro 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

26

Snapper Pro 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0

27

Snapper Pro 5025498

5/16 PUSH-ON NUT RETAINER, STL, CZ
(Superseded to 5025498YP)

$2.99

$

Usually ships in 2-12 days

0

28

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

29

Snapper Pro 5102037

FLAP, STRIPER, 61 DECK, IS3100 S200X
(Superseded to 5102037YP)

$75.99

$

Usually ships in 2-12 days

0

30

Snapper Pro 5405322A

PLATE, SUPPORT - BLK
(Superseded to 5405322AYP)

$39.99

$

Usually ships in 2-12 days

0

31

Snapper Pro 5413887A

WELD, MOUNT DISCHARGE, CHUTE - BLK

Note: (S/N: 2017094786 & Above)

$

$

Currently unavailable

32

Snapper Pro 5413385A

SUPPORT, DISCHARGE CHUTE - BLK
(Superseded to 84003245)

Note: (S/N: 2017094786 & Above)

$28.99

$

In Stock, Qty 5

0

33

Snapper Pro 5413499

CHUTE, RUBBER DISCHARGE (5104442)

Note: (S/N: 2017094786 & Above)

$160.99

$

Usually ships in 2-12 days

0

34

Snapper Pro 5025146X12

BOLT, 3/8-16 X 1-1/2, CARRIAGE, GD5, CZ
(Superseded to 5025146X12YP)

Note: (S/N: 2017094786 & Above)

$3.99

$

Usually ships in 2-12 days

0
