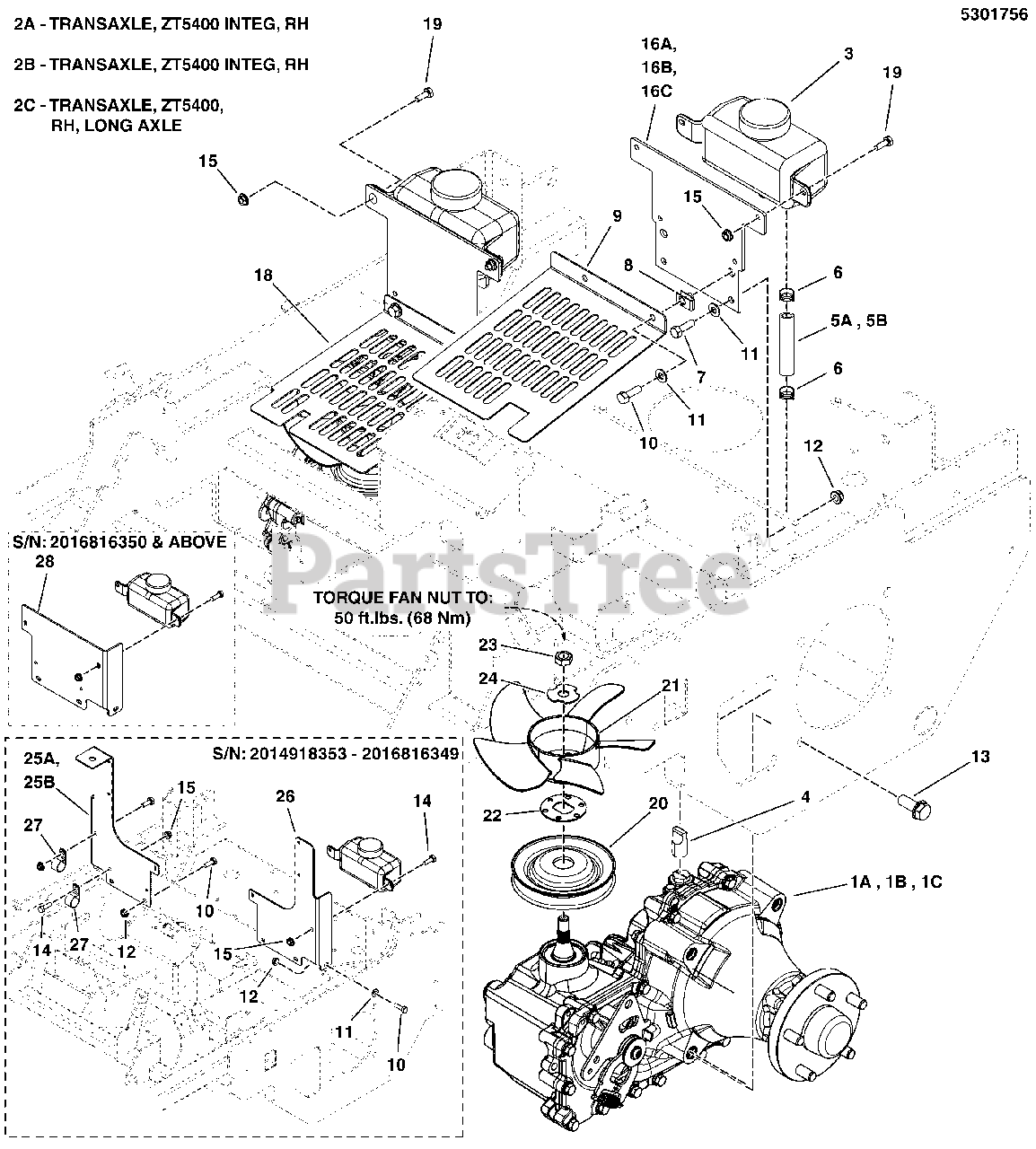

S 200XT (5900585) - Snapper Pro S200XT Series Zero-Turn Mower, 36hp Briggs & Stratton Hydraulic Group S/N: 2016950122 & Below Parts Diagram

S200XT Series Zero-Turn Mower, 36hp Briggs & Stratton

Hydraulic Group S/N: 2016950122 & Below Parts Diagram

  • Title

1A

Snapper Pro 5102870

TRANSAXLE, ZT5400, LH, 1015-1024L
(Superseded to 5102870YP)

Note: (61" Models - S/N: 2014665315 & Above)

$1789.99

$

Usually ships in 2-12 days

0

1B

Snapper Pro 5101988

TRANS, INTEGRATED, LH
(Superseded to 5102870YP)

Note: (61" Models - S/N: 2014665314 & Below)

$1789.99

$

Usually ships in 2-12 days

0

1C

Snapper Pro 5103964

TRANSAXLE, ZT5400, LH, 1015-1057L L AXLE
(Superseded to 5103964YP)

Note: (72" Models)

$2222.99

$

Usually ships in 2-12 days

0

2A

Snapper Pro 5102871

TRANSAXLE, ZT5400, RH, 1015-1024R
(Superseded to 5102871YP)

Note: (61" Models - S/N: 2014665315 & Above)

$1956.99

$

Usually ships in 2-12 days

0

2B

Snapper Pro 5101987

TRANS, INTEGRATED, RH
(Superseded to 5102871YP)

Note: (61" Models - S/N: 2014665314 & Below)

$1956.99

$

Usually ships in 2-12 days

0

2C

Snapper Pro 5103963

TRANSAXLE, ZT5400, RH, 1015-1057R L AXLE
(Superseded to 84008008)

Note: (72" Models)

$2336.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5101998

HYDRO TANK, HYDRO-GEAR 71938, 1 LITER
(Superseded to 5101998YP)

$68.99

$

In Stock, only 2 left!

0

4

Snapper Pro 5101987X1

FITTING, BREATHER, ZT5400
(Superseded to 5101987X1YP)

$26.99

$

Usually ships in 2-12 days

0

5A

Snapper Pro 5103038

HOSE, OFFSET FORMED

Note: (S/N: 2014918353 & Above)

$

$

Currently unavailable

5B

Snapper Pro 5050933X6

HOSE, 5/8 PUSH-LOCK, 6.00"

Note: (S/N: 2014918352 & Below)

$13.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5021164

CLAMP, #10 HOSE, STAINLESS
(Superseded to 5021164SM)

$3.99

$

In Stock, only 3 left!

0

7

Snapper Pro 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

8

Snapper Pro 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

Note: (S/N: 2014918352 & Below)

$5.99

$

In Stock, only 2 left!

0

9

Snapper Pro 5405372D

GUARD, FAN, LH - RED

Note: (S/N: 2014918352 & Below)

$27.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

Note: (S/N: 2014918352 & Below)

$3.99

$

In Stock, only 4 left!

0

11

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

12

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

13

Snapper Pro 5025535

BOLT,HEX FLG,SER,GD8 1/2-13X1-1/4W/PATCH
(Superseded to 5025535YP)

$7.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, only 2 left!

0

15

Snapper Pro 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

16A

Snapper Pro 5407275D

PLATE, HYDRO TANK

Note: (Kawasaki - S/N: 2014918352 & Below)

$

$

Currently unavailable

16B

Snapper Pro 5408359A

PLATE, HYDRO RES TANK - BLK

Note: (Briggs & Stratton - S/N: 2014918353 & Above)

$

$

Not available

16C

Snapper Pro 5405304D

PLATE, HYDRO TANK
(Superseded to 5405304DYP)

Note: (Briggs & Stratton - S/N: 2014918352 & Below)

$25.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 5021199

TIE, SELF-LOCKING, 8", PUSH MOUNT
(Superseded to 5021199SM)

Note: (Not Shown - S/N: 2014918352 & Below)

$5.99

$

In Stock, only 1 left!

0

18

Snapper Pro 5405967D

GUARD, FAN, RH - RED

Note: (S/N: 2014918352 & Below)

$29.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

20

Snapper Pro 5102872

PULLEY, ZT5400 (53177)
(Superseded to 5102872YP)

Note: (Not Shown)

$71.99

$

In Stock, only 2 left!

0

21

Snapper Pro 5102874

FAN, ZT5400
(Superseded to 5102874YP)

Note: (Not Shown)

$27.99

$

In Stock, only 2 left!

0

22

Snapper Pro 5102917

SPACER, ANTI-ROTATE, ZT5400
(Superseded to 5102917YP)

Note: (Not Shown)

$5.99

$

In Stock, only 1 left!

0

23

Snapper Pro 5102916

NUT, ZT5400
(Superseded to 5102916YP)

Note: (Not Shown)

$3.49

$

In Stock, only 1 left!

0

24

Snapper Pro 5102914

WASHER, ZT5400, SLOTTED
(Superseded to 5102914YP)

Note: (Not Shown)

$3.99

$

In Stock, only 1 left!

0

25A

Snapper Pro 5409022A

BRKT, HYD TNK/CARB CAN, S200XT RH - BLK

Note: (Single Tank Models)

$

$

Currently unavailable

25B

Snapper Pro 5408327A

BRACKET,HYD TANK, RH - BLK

Note: (Double Tank - S/N: 2014918353 & Above)

$55.99

$

Usually ships in 2-12 days

0

26

Snapper Pro 5408328A

BRACKET,HYD TANK, LH - BLK

Note: (S/N: 2014918353 - 2016816349)

$48.99

$

Usually ships in 2-12 days

0

27

Snapper Pro 5021500

CLAMP, VINYL INSULATED, 1.00
(Superseded to 5021500FS)

Note: (S/N: 2014918353 & Above)

$4.49

$

Usually ships in 2-12 days

0

28

Snapper Pro 5412965A

BRACKET, HYD TANK, S200XT, LH - BLK

Note: (S/N: 2016816350 & Above)

$27.99

$

Usually ships in 2-12 days

0
