S 200XT (5900583) - Snapper Pro S200XT Series Zero-Turn Mower, 30hp Briggs & Stratton Deck Lift Group - Spring Assist - 72" Models Parts Diagram

S200XT Series Zero-Turn Mower, 30hp Briggs & Stratton

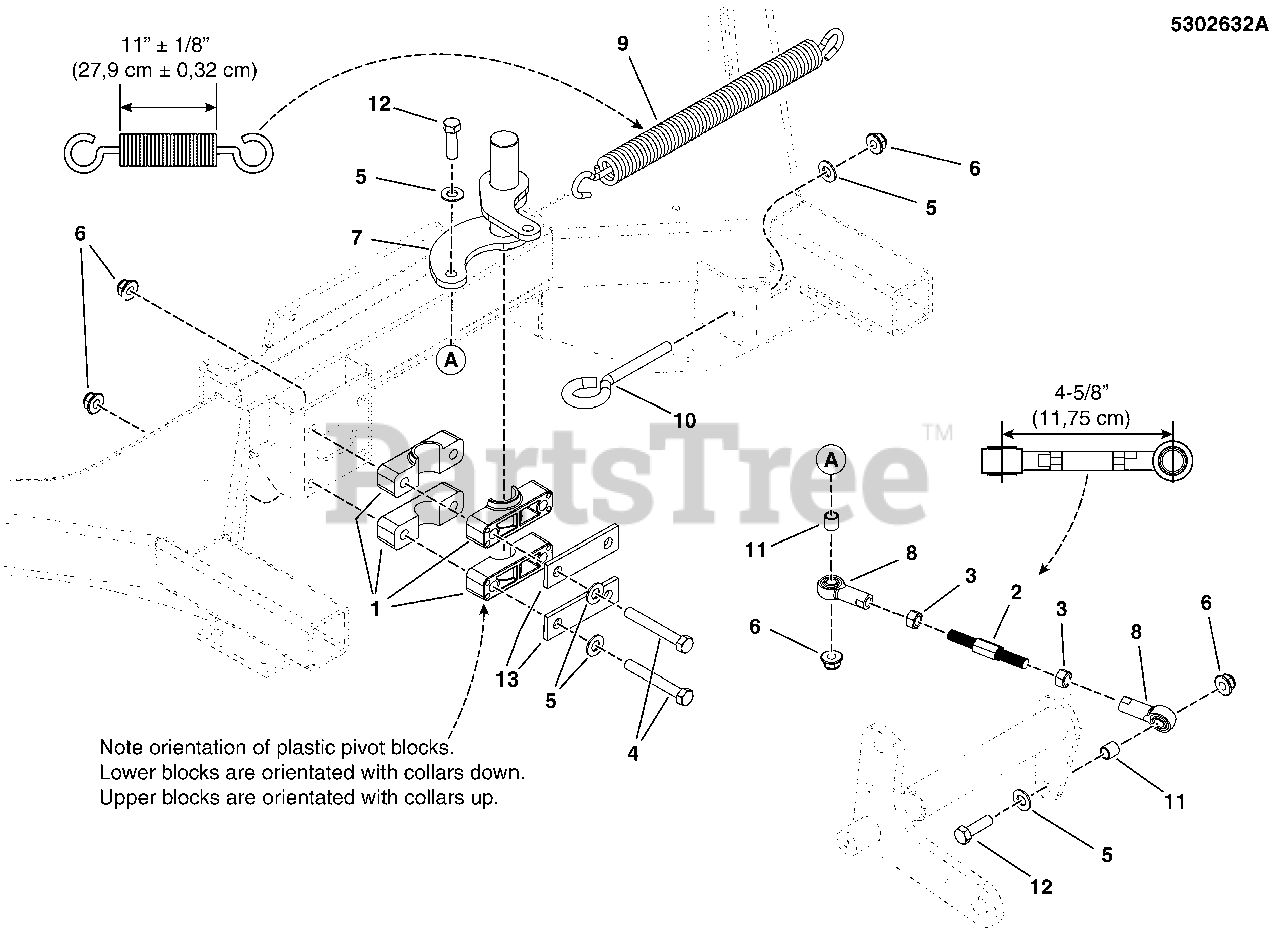

Deck Lift Group - Spring Assist - 72" Models Parts Diagram

  • Title

1

Snapper Pro 5100634

PIVOT BLOCK, PLASTIC
(Superseded to 5100634SM)

$7.49

$

Usually ships in 2-12 days

0

2

Snapper Pro 5103127

LINK, ADJUSTABLE, SHORT

$

$

Not available

3

Snapper Pro 5025309

NUT, 3/8-24 HEX
(Superseded to 5025309SM)

$2.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 5025013X22

BOLT, 3/8-16 X 2-3/4" GD5 CZ
(Superseded to 5025013X22SM)

$4.49

$

In Stock, only 3 left!

0

5

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

6

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

7

Snapper Pro 5408302D

WELD, PIVOT, LIFT ASSIST - RED

$

$

Not available

8

Snapper Pro 5021683

BALL JOINT, 3/8-24 FEMALE
(Superseded to 5021683FS)

$32.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 5023355

SPRING-EXT, 1.00 ODX13.25LGX.177WR, BLK
(Superseded to 5023355SM)

$49.99

$

In Stock, only 1 left!

0

10

Snapper Pro 5023497

EYE BOLT, 3/8-16 X 5, 2.88THRD, 1EYE, CZ
(Superseded to 5023497SM)

$9.49

$

In Stock, only 1 left!

0

11

Snapper Pro 5101640

SPACER, .38 X .50 X .50
(Superseded to 5101640YP)

$7.49

$

Usually ships in 2-12 days

0

12

Snapper Pro 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 5403925A

PLATE, PIVOT BLOCK SUPPORT - BLK
(Superseded to 5403925AAFS)

$3.49

$

Usually ships in 2-12 days

0
