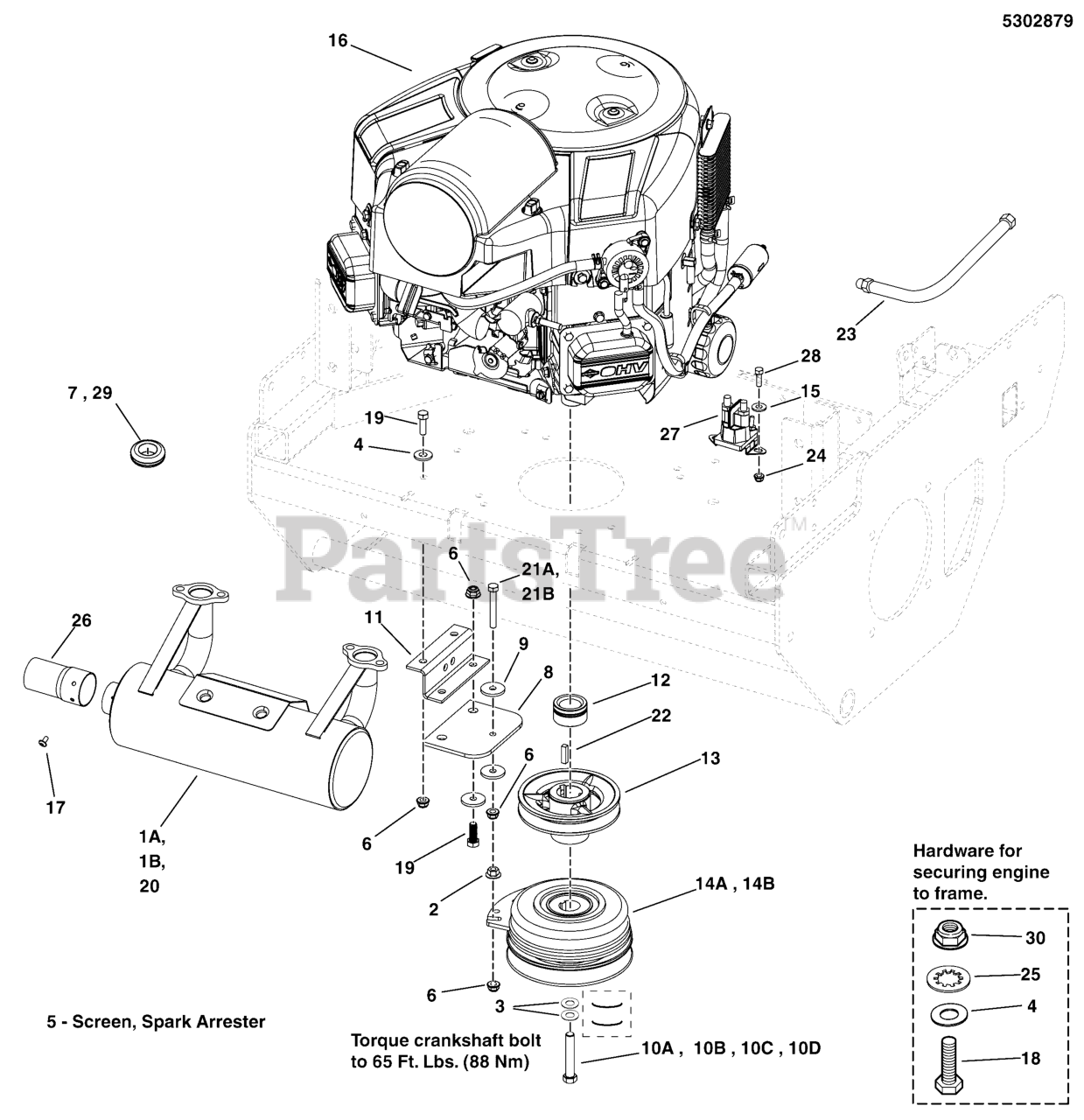

S 200XT (5900582) - Snapper Pro S200XT Series 61" Zero-Turn Mower, 30hp Briggs & Stratton Engine & PTO Group S/N: 2017681136 & Below Parts Diagram

S200XT Series 61" Zero-Turn Mower, 30hp Briggs & Stratton

Engine & PTO Group S/N: 2017681136 & Below Parts Diagram

  • Title

1a

Snapper Pro 5100907

MUFFLER, B&S
(Superseded to 5100907SM)

Note: (49L9770125G5 Engine - S/N: 2016294925 & Below)

$

$

Not available

1b

Snapper Pro 5100907

MUFFLER, B&S
(Superseded to 5100907SM)

Note: (49M9770114G5 Engine - S/N: 2016409321 & Below)(Was 696116)

$

$

Not available

2

Snapper Pro 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, Qty 12

0

3

Snapper Pro 5025585

BELLEVILLE WASHER 1.1875 X .442 X .089
(Superseded to 5025585YP)

Note: (S/N: 2015745414 & Above)

$4.49

$

In Stock, only 4 left!

0

4

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

5

Snapper Pro 842859

SCREEN, SPARK ARRESTER
(Superseded to 843204)

Note: (Not Shown)

$136.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

7

Snapper Pro 5021379

GROMMET, 7/8
(Superseded to 5021379SM)

Note: (S/N: 2016499656 & Below)

$6.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 5043636

CLUTCH ANCHOR PAD
(Superseded to 5043636SM)

$11.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 5044617

WASHER, .34 X 1.25 X 10 GA
(Superseded to 5044617SM)

$8.49

$

In Stock, only 2 left!

0

10a

Snapper Pro 5102865

BOLT, CRANKSHAFT, 7/16X2-3/4
(Superseded to 5102865YP)

Note: (61" Models - S/N: 2015745414 & Above)

$5.49

$

In Stock, only 2 left!

0

10b

Snapper Pro 5102864

BOLT, CRANKSHAFT, 7/16X2-1/2
(Superseded to 5102864YP)

Note: (61" Models - S/N: 2015745413 & Below)

$5.49

$

In Stock, only 1 left!

0

10c

Snapper Pro 5103300

BOLT, CRANKSHAFT, 7/16X3-1/4
(Superseded to 5103300YP)

Note: (72" Models - S/N: 2015745414 & Above)

$5.99

$

In Stock, only 1 left!

0

10d

Snapper Pro 5102866

BOLT, CRANKSHAFT, 7/16-20 X 3, GD8
(Superseded to 5102866YP)

Note: (72" Models - S/N: 2015745413 & Below)

$5.49

$

In Stock, only 1 left!

0

11

Snapper Pro 5414825A

ANCHOR, CLUTCH - BLK

$

$

Not available

12

Snapper Pro 5100926

SPACER, 1.13 X 1.75 X 1.35, YZ
(Superseded to 5100926YP)

$27.99

$

In Stock, only 1 left!

0

13

Snapper Pro 5021682

PULLEY, 4.75 OD X 1-1/8 BORE, BC-48
(Superseded to 5021682YP)

$48.99

$

Usually ships in 2-12 days

0

14a

Snapper Pro 5105090

* CLUTCH, 5218-134, WARNER
(Superseded to 5105090YP)

Note: (61" Models)

$456.99

$

In Stock, only 3 left!

0

14b

Snapper Pro 5101780

*CLUTCH, WARNER ELECTRIC CMS250

Note: (72" Models)

$586.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

16

ENGINE, B&S, COMM TURF

$

$

Not available

17

Snapper Pro 5025470

SCREW,SELF-TAP,#8-32 X 3/8,WASH HEX, CZ
(Superseded to 5025470YP)

$3.49

$

In Stock, only 2 left!

0

18

Snapper Pro 5025025X14

BOLT, 5/16-24 X 1-3/4, GD8
(Superseded to 5025025X14YP)

$4.49

$

Usually ships in 2-12 days

0

19

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

20

Snapper Pro 593249

MUFFLER, RIGHT OUTLET ASSY
(Superseded to 706900)

Note: (49L9770125G5 Engine - S/N: 2016294926 & Above)(49M9770114G5 Engine - S/N: 2016409322 & Above)

$222.99

$

Usually ships in 2-12 days

0

21a

Snapper Pro 5025055X18

BOLT, 5/16-18 X 2-1/4 TFL, GD5 YZ
(Superseded to 5025055X18YP)

Note: (61" Models)

$3.99

$

In Stock, only 1 left!

0

21b

Snapper Pro 5025055X20

BOLT, 5/16-18 X 2-1/2 TFL, GD5 YZ
(Superseded to 5025055X20FS)

Note: (72" Models)

$7.49

$

Usually ships in 2-12 days

0

22

Snapper Pro 5050407X10

KEY, 1/4 SQ. X 1.25
(Superseded to 5050407X10YP)

$3.99

$

In Stock, only 4 left!

0

23

Snapper Pro 5048681

HOSE, OIL DRAIN
(Superseded to 5048681SM)

$18.99

$

Usually ships in 2-12 days

0

24

Snapper Pro 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

25

Snapper Pro 5025188

WASHER, 5/16 INT. TOOTH LOCK
(Superseded to 5025188SM)

$3.99

$

In Stock, only 1 left!

0

26

Snapper Pro 5104348

EXTENSION, TAILPIPE, 3" - BLACK
(Superseded to 5104348YP)

$14.99

$

Usually ships in 2-12 days

0

27

Snapper Pro 1724815

SOLENOID-4 POLE 12 VOLT DC (TROMBETTA)
(Superseded to 1724815FS)

$29.99

$

Usually ships in 2-12 days

0

28

HHCS, 1/4-20 X 0.625, GR5, ZINC/CLEAR

$

$

Not available

29

Snapper Pro 5103944

GROMMET, 7/8"ID, 1/4" THICK STK
(Superseded to 5103944YP)

Note: (S/N: 2016499657 & Above)

$2.99

$

Usually ships in 2-12 days

0

30

Snapper Pro 5025616

NUT, 5/16-24, NYLOCK FLANGE, GD8, CZ
(Superseded to 5025616YP)

$3.99

$

In Stock, only 2 left!

0
