S 200X (5900971) - Snapper Pro S200X Series Zero-Turn Mower, 32hp Briggs & Stratton Instrument Control Panel Group Parts Diagram

S200X Series Zero-Turn Mower, 32hp Briggs & Stratton

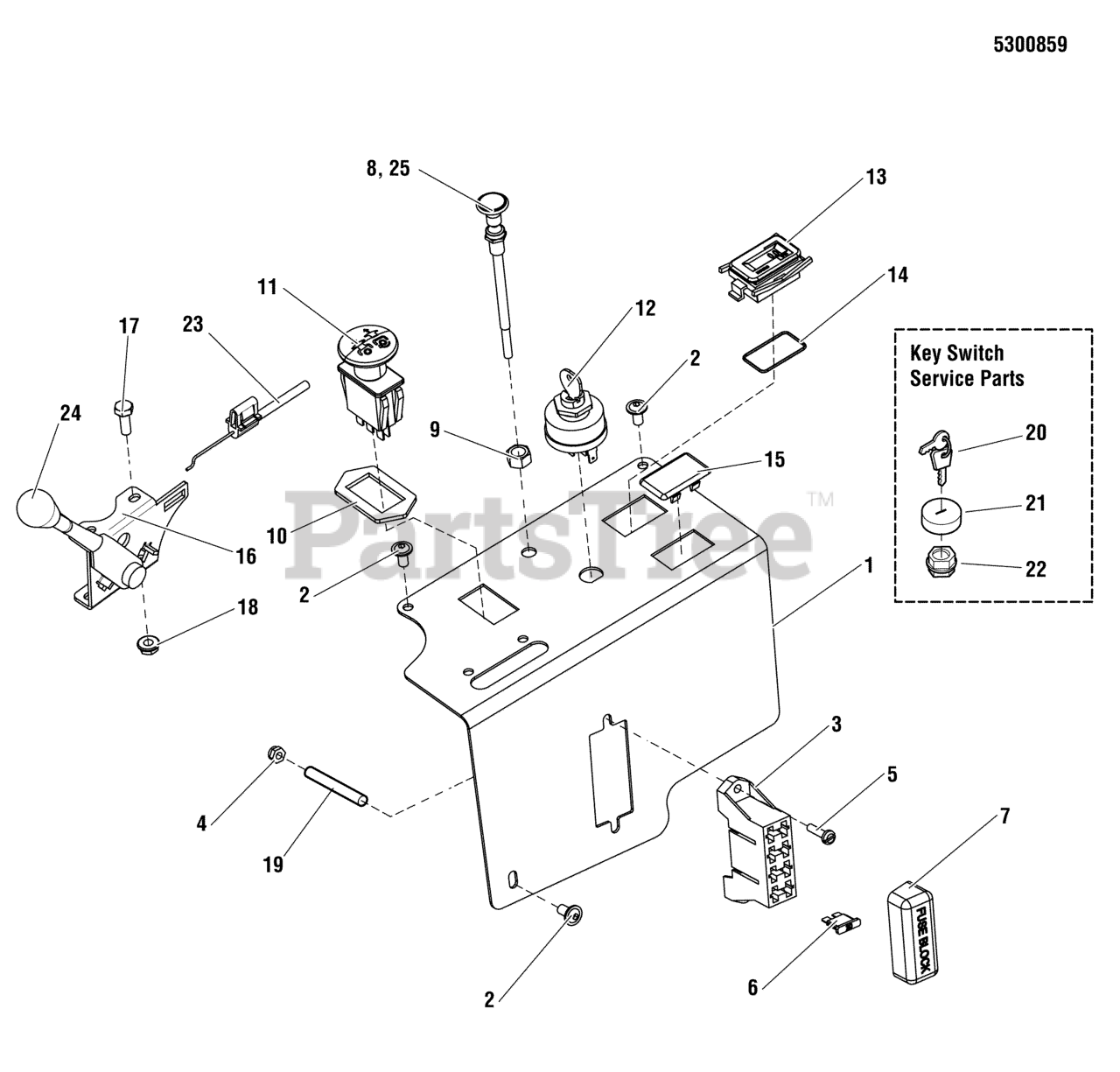

Instrument Control Panel Group Parts Diagram

  • Title

1

Snapper Pro 5402769A

PLATE, CONTROL PANEL, SNP - BLK

$35.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5025299X4

SCREW, ALLEN HEAD 1/4-20X.500 ZINC PHOS
(Superseded to 5106469)

$2.49

$

In Stock, Qty 15

0

3

Snapper Pro 5021518

FUSE BLOCK (SV)
(Superseded to 5021518SM)

$11.99

$

In Stock, only 1 left!

0

4

Snapper Pro 5025271

NUT, #10-24 HEX NYLON LOCK
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 5025270X16

SCREW, #10-24 X 2" ROUND PHILLIPS

$

$

Currently unavailable

6

Snapper Pro 5021603

FUSE, ATP, 20 AMP (SV)
(Superseded to 5021603SM)

$4.99

$

In Stock, only 2 left!

0

7

Snapper Pro 5022805

COVER, VINYL FUSEBLOCK
(Superseded to 5022805SM)

$6.49

$

Usually ships in 2-12 days

0

8

Snapper Pro 5046501

CABLE, CHOKE CONTROL, 47"
(Superseded to 5046501SM)

Note: (FOR 25HP & 27HP KAWASAKI AND 32HP BRIGGS MODELS)

$55.99

$

In Stock, only 1 left!

0

9

Snapper Pro 5025035

NUT, 3/8-24 HEX
(Superseded to 5025035SM)

$3.49

$

Usually ships in 2-12 days

0

10

Snapper Pro 5022222

RING, SWITCH RETAINER
(Superseded to 5022222SM)

$4.49

$

In Stock, only 2 left!

0

11

Snapper Pro 5022180

SWITCH, BLADE ENGAGEMENT
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

12

Snapper Pro 5020927

SWITCH, IGNITION, 6 POST
(Superseded to 5020927FS)

Note: (INCLUDES REF NOS 20 - 22)

$33.99

$

In Stock, only 3 left!

0

13

Snapper Pro 5102417

HOUR METER

$64.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5022269

O-RING, 7/8 ID X 1/16 W
(Superseded to 5022269SM)

$3.49

$

Usually ships in 2-12 days

0

15

Snapper Pro 1709188

PLUG, .820X1.44 HOLE, BLACK PLASTIC
(Superseded to 1709188SM)

$4.99

$

In Stock, only 1 left!

0

16

Snapper Pro 5101537

LEVER, THROTTLE CONTROL, HEAVY-DUTY
(Superseded to 5101537SM)

Note: (INCLUDES REF NOS 24)

$48.99

$

In Stock, only 1 left!

0

17

Snapper Pro 5025179X6

SCREW, #10-24 X 3/4" ROUND PHILLIPS
(Superseded to 5025179X6SM)

$3.99

$

Usually ships in 2-12 days

0

18

Snapper Pro 5025271

NUT, #10-24 HEX NYLON LOCK
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 5061763

SPACER, .20 X .38 X 1.25
(Superseded to 5061763FS)

$5.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 5022789

KEY, IGNITION MOLDED SET

$

$

Currently unavailable

21

Snapper Pro 5022790

COVER, PLASTIC, SNAP ON
(Superseded to 1704346SM)

$4.49

$

In Stock, only 1 left!

0

22

Snapper Pro 5022791

PLASTIC NUT
(Superseded to 5022791SM)

$3.49

$

In Stock, only 1 left!

0

23

Snapper Pro 5101073

CABLE, THROTTLE, 42"
(Superseded to 5101073SM)

$33.99

$

In Stock, only 2 left!

0

24

Snapper Pro 5046360X1

THROTTLE CONTROL HANDLE/KNOB
(Superseded to 5046360X1SM)

$10.99

$

In Stock, only 1 left!

0

25

Snapper Pro 5102624

CABLE, CHOKE CONTROL, 56", DETENTED

Note: (FOR 27HP KOHLER MODEL ONLY)

$53.99

$

Usually ships in 2-12 days

0
