S 200X (5900971) - Snapper Pro S200X Series Zero-Turn Mower, 32hp Briggs & Stratton Fuel Tank & Mount Group Parts Diagram

S200X Series Zero-Turn Mower, 32hp Briggs & Stratton

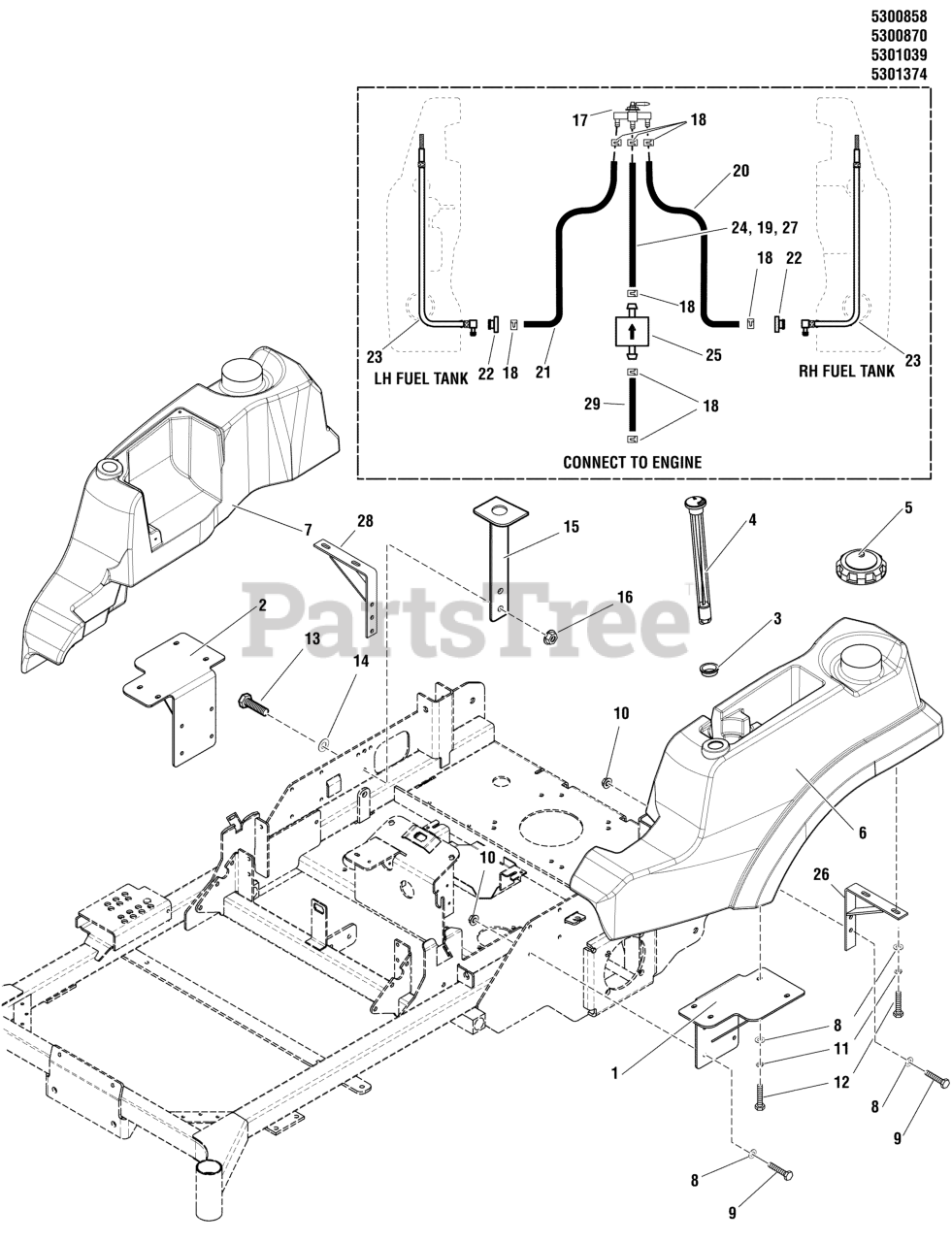

Fuel Tank & Mount Group Parts Diagram

  • Title

1

Snapper Pro 5402771D

WELD, FUEL MOUNT, RH, SNP 2561 - RED

$66.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5402770D

WELD, FUEL MOUNT, LH, SNP 2561 - RED

$58.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5022917X1

GROMMET, FUEL GAUGE (SV)
(Superseded to 5022917X1SM)

$6.99

$

In Stock, only 3 left!

0

4

Snapper Pro 5022917

GAUGE, FUEL, 12
(Superseded to 5022917FS)

$48.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 5103005

CAP, FUEL TANK, 3-1/2 NECK
(Superseded to 84005958)

Note: (S/N: 2014785119 & Above)

$40.99

$

In Stock, only 1 left!

0

5

Snapper Pro 5101651

CAP, GASOLINE, VENTED
(Superseded to 5101651SM)

Note: (S/N: 2014785118 & Below)

$30.99

$

In Stock, Qty 20+

0

6

Snapper Pro 5102981

TANK, FUEL, SNAPPER PRO - LH

Note: (S/N: 2014785119 & Above)

$539.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5101044

TANK, FUEL, SNAPPER PRO - LH
(Superseded to 5102981)

Note: (S/N: 2014785118 & Below)

$539.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 5102980

TANK, FUEL, SNAPPER PRO - RH

Note: (S/N: 2014785119 & Above)

$432.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 5101043

TANK, FUEL, SNAPPER PRO - RH
(Superseded to 5102980)

Note: (S/N: 2014785118 & Below)

$432.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

9

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

10

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

11

Snapper Pro 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0

13

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 5

0

14

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

15

Snapper Pro 5401108A

BRACKET, FUEL VALVE, IS3000 - BLK
(Superseded to 5401108AFS)

$11.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

17

Snapper Pro 5023358

VALVE, FUEL, STR. OUTLET
(Superseded to 5023358SM)

$48.99

$

In Stock, Qty 9

0

18

Snapper Pro 93807

CLAMP, HOSE, EXTERNAL, 1/2 - RED
(Superseded to 691038)

$3.99

$

In Stock, Qty 17

0

19

Snapper Pro 5050831X11

HOSE, LW PRMTN, 1/4 X 11" FUEL LINE (SV)
(Superseded to 5050831X11FS)

Note: (Kohler Models)

$6.49

$

Usually ships in 2-12 days

0

20

Snapper Pro 5050831X21

HOSE, 1/4" FUEL, 21.00"
(Superseded to 5050831X21FS)

$11.99

$

In Stock, only 1 left!

0

21

Snapper Pro 5050831X47

HOSE, 1/4" FUEL, 47.00"

$20.99

$

Usually ships in 2-12 days

0

22

Snapper Pro 1726400

BUSHING-FUEL TANK RED RUBBER
(Superseded to 1726400FS)

$11.99

$

In Stock, only 4 left!

0

23

Snapper Pro 5101144

PICKUP TUBE ASSEMBLY, FUEL LINE (SV)

$33.99

$

Usually ships in 2-12 days

0

24

Snapper Pro 5050831X28

HOSE, 1/4" FUEL, 28.00"
(Superseded to 5050831X28SM)

Note: (SV)(Kawasaki Models)

$12.99

$

Usually ships in 2-12 days

0

25

Snapper Pro 5021178X3

FUEL FILTER (SV)
(Superseded to 5021178X3FS)

$12.99

$

In Stock, Qty 14

0

26

Snapper Pro 5404331D

WELD, TANK MOUNT, REAR, LH

$53.99

$

Usually ships in 2-12 days

0

27

Snapper Pro 5050831X32

HOSE, LW PRMTN, 1/4 X 32" FUEL LINE (SV)

Note: (Briggs Models)

$

$

Currently unavailable

28

Snapper Pro 5404330D

WELD, TANK MOUNT, REAR, RH

$53.99

$

Usually ships in 2-12 days

0

29

Snapper Pro 5050831X16

HOSE, LW PRMTN, 1/4 X 16" FUEL LINE (SV)
(Superseded to 5050831X16SM)

Note: (27 HP Kawasaki model only)

$8.49

$

Usually ships in 2-12 days

0
