S 200X (5900828) - Snapper Pro S200X Series 61" Zero-Turn Mower, 32hp Briggs & Stratton Engine & PTO Group - 28HP & 32HP Briggs & Stratton (61" Deck Models) Parts Diagram

S200X Series 61" Zero-Turn Mower, 32hp Briggs & Stratton

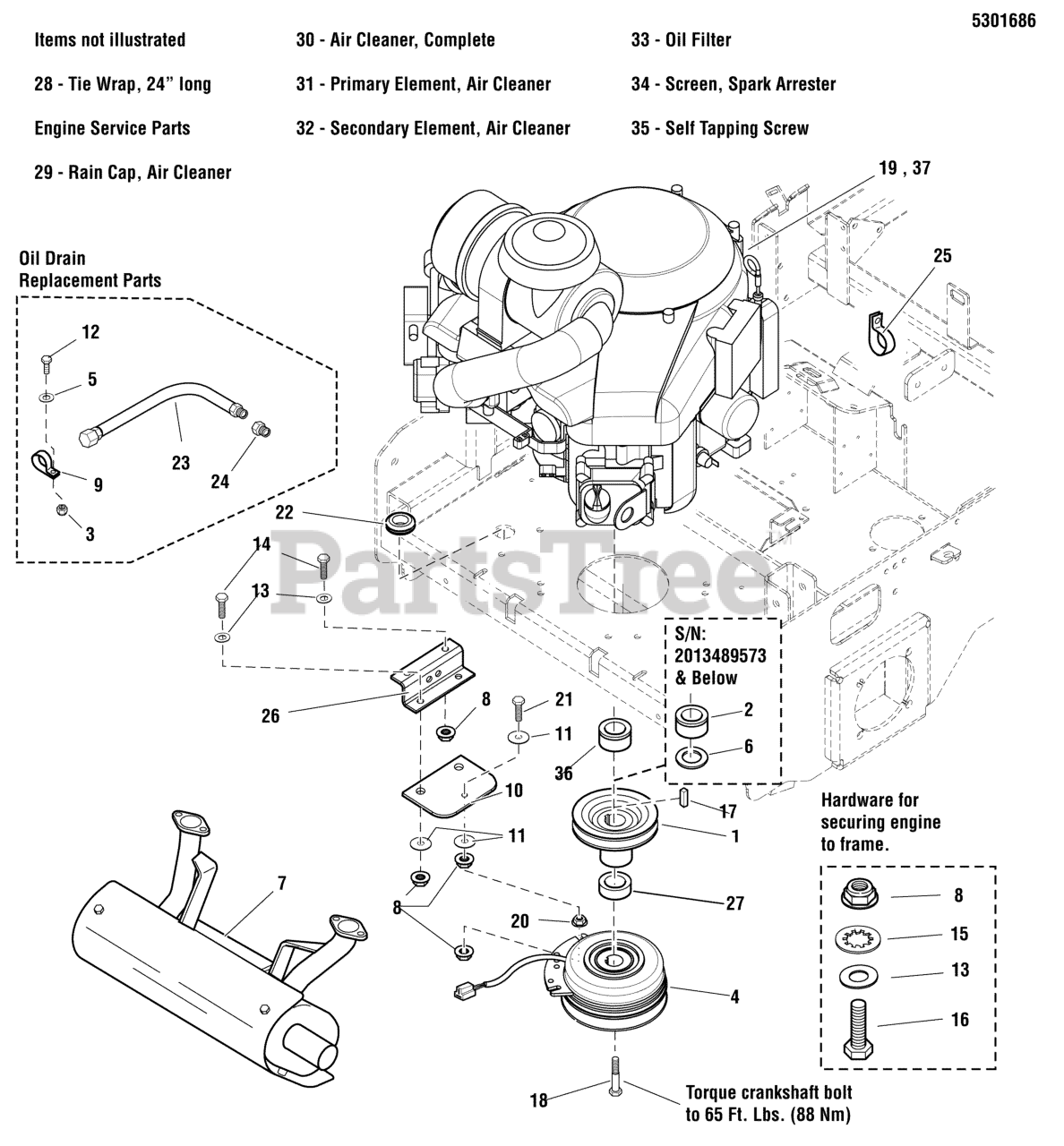

Engine & PTO Group - 28HP & 32HP Briggs & Stratton (61" Deck Models) Parts Diagram

  • Title

1

Snapper Pro 5101022

PULLEY, 5.15 OD X 1-1/8 BORE B-SECT

$32.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5046845

SPACER, 1.13 X 1.75 X .97
(Superseded to 5046845SM)

Note: (S/N: 2013489573 & Below)

$34.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

4

Snapper Pro 5105090

* CLUTCH, 5218-134, WARNER
(Superseded to 5105090YP)

$456.99

$

In Stock, only 3 left!

0

5

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

6

Snapper Pro 5042945

SPACER, 1.13 X 2.00 X .19

Note: (S/N: 2013489573 & Below)

$

$

Currently unavailable

7

Snapper Pro 843906

MUFFLER ASSY, SERVICE PART

$

$

Not available

8

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

9

Snapper Pro 5021500

CLAMP, VINYL INSULATED
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

10

Snapper Pro 5043636

CLUTCH ANCHOR PAD
(Superseded to 5043636SM)

$11.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5025164

WASHER, 5/16 FENDER
(Superseded to 5025164SM)

$3.99

$

In Stock, only 1 left!

0

12

Snapper Pro 5025010X14

BOLT, 1/4-20 X 1-3/4 GD5 YZ
(Superseded to 5025010X14SM)

$3.99

$

In Stock, only 1 left!

0

13

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

14

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

15

Snapper Pro 5025188

WASHER, 5/16 INT. TOOTH LOCK
(Superseded to 5025188SM)

$3.99

$

In Stock, only 1 left!

0

16

Snapper Pro 5025011X14

BOLT, 5/16-18 X 1-3/4 GD5 YZ
(Superseded to 5025011X14SM)

$3.99

$

In Stock, Qty 20+

0

17

Snapper Pro 5050407X8

KEY, 1/4 SQ X 1
(Superseded to 5050407X8SM)

$3.99

$

In Stock, only 1 left!

0

18

Snapper Pro 5102864

BOLT, CRANKSHAFT, 7/16X2-1/2
(Superseded to 5102864YP)

$5.49

$

In Stock, only 1 left!

0

19

ENGINE, 32HP B&S # 543777-0120-E1

$

$

Not available

20

Snapper Pro 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, Qty 12

0

21

Snapper Pro 5025055X18

BOLT, 5/16-18 X 2-1/4 TFL, GD5 YZ
(Superseded to 5025055X18YP)

$3.99

$

In Stock, only 1 left!

0

22

Snapper Pro 5021379

GROMMET, 7/8
(Superseded to 5021379SM)

$6.99

$

Usually ships in 2-12 days

0

23

Snapper Pro 5048681

HOSE, OIL DRAIN
(Superseded to 5048681SM)

$18.99

$

Usually ships in 2-12 days

0

24

Snapper Pro 5100366

METRIC ADAPTER, M14-1.5" TO 3/8 NPTF
(Superseded to 5100366SM)

$13.99

$

Usually ships in 2-12 days

0

25

Snapper Pro 5023173

CLAMP, HOSE, 1.000 DIA.
(Superseded to 5023173SM)

$3.99

$

Usually ships in 2-12 days

0

26

Snapper Pro 5046416A

ANCHOR, CLUTCH - BLK
(Superseded to 5046416AYP)

$16.99

$

Usually ships in 2-12 days

0

27

Snapper Pro 5048135

SPACER, 1.13 X 1.75 X .62
(Superseded to 5048135FS)

$17.99

$

Usually ships in 2-12 days

0

28

Snapper Pro 5101492

TIE,SELF-LOCKING, 24"
(Superseded to 5101492YP)

Note: (Not shown.)

$3.49

$

Usually ships in 2-12 days

0

29

Snapper Pro 593754

CAP, A/C RAIN
(Superseded to 593754FS)

Note: (Not shown.)

$60.99

$

Usually ships in 2-12 days

0

30

Snapper Pro 809218

AIR CLEANER ASSY
(Superseded to 809670)

Note: (Not shown.)

$235.99

$

In Stock, only 3 left!

0

31

Snapper Pro 841237

ELEMENT ASSY

Note: (Not shown.)

$36.99

$

Usually ships in 2-12 days

0

32

Snapper Pro 841238

ELEMENT, AIR CLEANER, SECONDARY

Note: (Not shown.)

$40.99

$

Usually ships in 2-12 days

0

33

Snapper Pro 842921

OIL FILTER, BRIGGS & STRATTON

Note: (Not shown.)

$14.99

$

In Stock, Qty 20+

0

34

Snapper Pro 842859

SCREEN, SPARK ARRESTER
(Superseded to 843204)

Note: (Not shown.)

$136.99

$

Usually ships in 2-12 days

0

35

Snapper Pro 5025470

SCREW, SELF TAP, #8-32 X 3/8, WASH HEX CZ
(Superseded to 5025470YP)

Note: (Not shown.)

$3.49

$

In Stock, only 2 left!

0

36

Snapper Pro 5101975

SPACER, 1.13 X 1.75 X 1.194, YZ

Note: (S/N: 2013489574 & Above)

$29.99

$

Usually ships in 2-12 days

0

37

ENGINE, 28HP B&S # 541777-0110-E1

Note: (Not shown)

$

$

Not available

38

Snapper Pro 5101492

TIE,SELF-LOCKING, 24"
(Superseded to 5101492YP)

$3.49

$

Usually ships in 2-12 days

0
