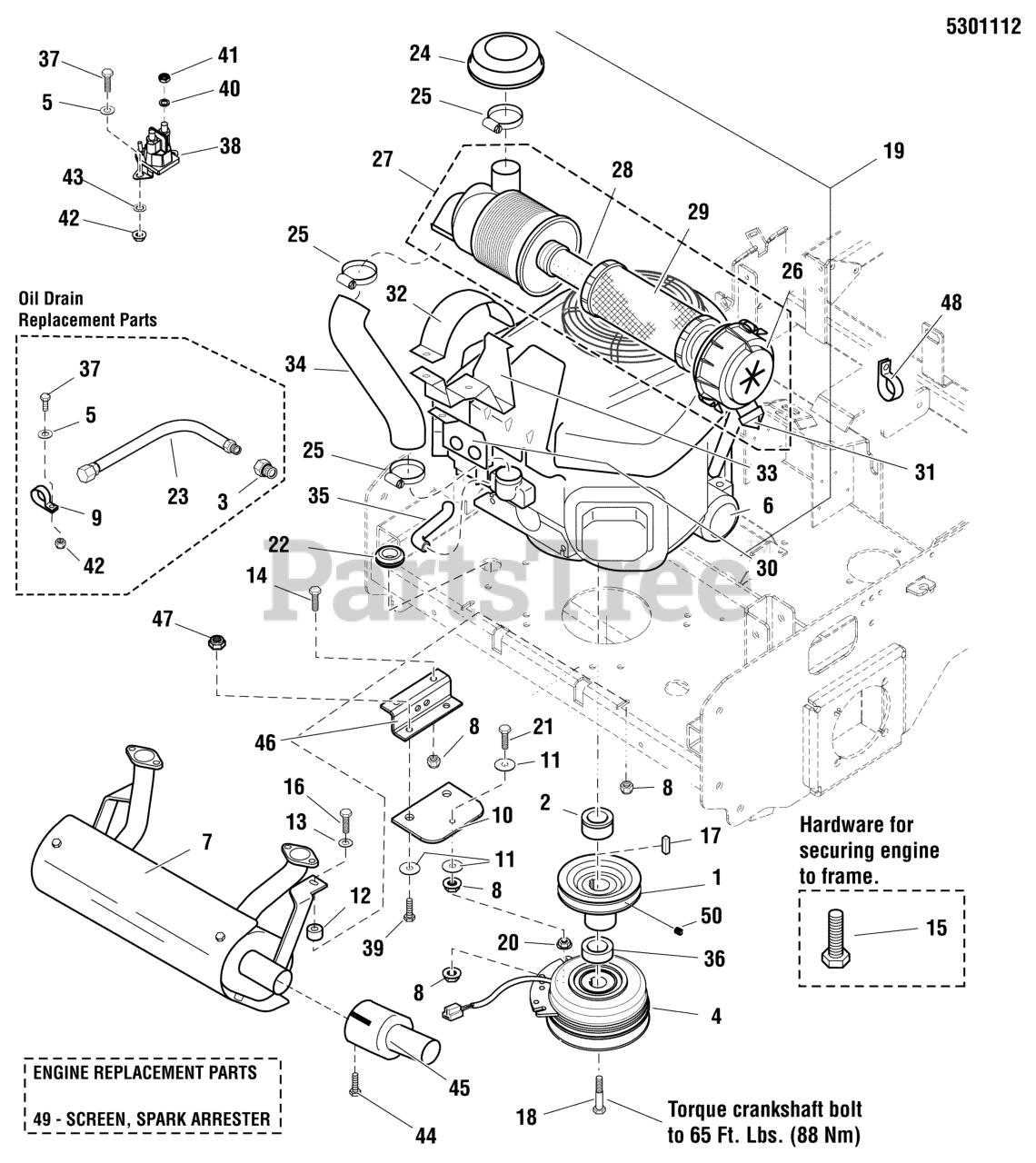

S 200X (5900826) - Snapper Pro S200X Series 61" Zero-Turn Mower, 27hp Kawasaki Engine & PTO Group - 27HP Kawasaki Parts Diagram

S200X Series 61" Zero-Turn Mower, 27hp Kawasaki

Engine & PTO Group - 27HP Kawasaki Parts Diagram

  • Title

1

Snapper Pro 5101022

PULLEY, 5.15 OD X 1-1/8 BORE B-SECT

$32.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5047033

SPACER, 1.13 X 1.75 X 1.03
(Superseded to 5047033SM)

$13.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5022234

ADAPTER, OIL DRAIN
(Superseded to 5022234SM)

$15.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 5105090

* CLUTCH, 5218-134, WARNER
(Superseded to 5105090YP)

$456.99

$

In Stock, only 3 left!

0

5

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

6

Snapper Pro 5021334X1

OIL FILTER (49065-2078) (SV)
(Superseded to 5213341SM)

$

$

Not available

7

Snapper Pro 5105069

MUFFLER, 27HP KAWASAKI, 5" CAN
(Superseded to 5105069YP)

Note: (Replacement muffler does not require hardware to secure muffler to engine deck)

$287.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

9

Snapper Pro 5021500

CLAMP, VINYL INSULATED
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

10

Snapper Pro 5043636

CLUTCH ANCHOR PAD
(Superseded to 5043636SM)

$11.99

$

In Stock, only 1 left!

0

11

Snapper Pro 5044617

WASHER, .34 X 1.25 X 10 GA
(Superseded to 5044617SM)

$8.49

$

In Stock, only 2 left!

0

12

Snapper Pro 5046446

SPACER, .39 X 1.00 X .80
(Superseded to 5046446SM)

$7.49

$

In Stock, only 1 left!

0

13

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

14

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

15

Snapper Pro 5025532

BOLT,HEX FLG, SER GD5 3/8-16X1-1/4,PATCH
(Superseded to 84003591)

$3.49

$

In Stock, only 4 left!

0

16

Snapper Pro 5025011X14

BOLT, 5/16-18 X 1-3/4 GD5 YZ
(Superseded to 5025011X14SM)

$3.99

$

In Stock, Qty 20+

0

17

Snapper Pro 5050407X8

KEY, 1/4 SQ X 1
(Superseded to 5050407X8SM)

$3.99

$

In Stock, only 1 left!

0

18

Snapper Pro 5045938

BOLT, CRANKSHAFT, 7/16 X 2-1/4
(Superseded to 5102863FS)

Note: (TORQUE CRANKSHAFT BOLT TO 65 FT LBS (88 Nm))

$4.49

$

Usually ships in 2-12 days

0

19

* ENGINE, 27HP KAWASAKI

$

$

Not available

20

Snapper Pro 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, Qty 12

0

21

Snapper Pro 5025055X18

BOLT, 5/16-18 X 2-1/4 TFL, GD5 YZ
(Superseded to 5025055X18YP)

$3.99

$

In Stock, only 1 left!

0

22

Snapper Pro 5021379

GROMMET, 7/8
(Superseded to 5021379SM)

$6.99

$

Usually ships in 2-12 days

0

23

Snapper Pro 5048681

HOSE, OIL DRAIN
(Superseded to 5048681SM)

$18.99

$

In Stock, only 1 left!

0

24

Snapper Pro 5023143

RAIN COVER

Note: (S/N: 2014428802 & Above)

$

$

Not available

24

Snapper Pro 5101538

RAIN COVER, 27, 34 & 37

Note: (S/N: 2014428801 & Below)

$

$

Currently unavailable

25

Snapper Pro 5101539

CLAMP, 27, 34 & 37

Note: (S/N: 2014428801 & Below)

$8.99

$

Usually ships in 2-12 days

0

25

Snapper Pro 5023573

CLAMP

Note: (S/N: 2014428802 & Above)

$

$

Currently unavailable

26

Snapper Pro 5101544

CAP END, FILTER CASE, 27, 34 & 37

Note: (S/N: 2014428801 & Below)

$

$

Currently unavailable

26

Snapper Pro 5102126X2

FILTER CASE

Note: (S/N: 2014428802 & Above)

$

$

Not available

27

Snapper Pro 5101540

AIR FILTER ASSEMBLY, 27, 34 & 37

Note: (S/N: 2014428801 & Below)

$

$

Currently unavailable

27

Snapper Pro 5102126X1

AIR FILTER ASSEMBLY

Note: (S/N: 2014428802 & Above)

$

$

Not available

28

Snapper Pro 5101542

AIR FILTER, SECONDARY, 27, 34 & 37

Note: (S/N: 2014428801 & Below)

$

$

Currently unavailable

28

Snapper Pro 5102126X4

AIR FILTER, SECONDARY

Note: (S/N: 2014428802 & Above)

$

$

Not available

29

Snapper Pro 5101543

AIR FILTER, PRIMARY, 27, 34 & 37

Note: (S/N: 2014428801 & Below)

$

$

Currently unavailable

29

Snapper Pro 5102126X3

AIR FILTER, PRIMARY

Note: (S/N: 2014428802 & Above)

$

$

Not available

30

Snapper Pro 5101547

BRACKET PLATE, SUPPORT, 27

$13.99

$

Usually ships in 2-12 days

0

31

Snapper Pro 5023144

RUBBER DUST VALVE, 27, 34 & 37

Note: (S/N: 2014428801 & Below)

$

$

Not available

31

Snapper Pro 5102126X8

RUBBER DUST VALVE

Note: (S/N: 2014428802 & Above)

$

$

Not available

32

Snapper Pro 5101545

BRACKET PLATE, UPPER, 27, 34 & 37

Note: (S/N: 2014428801 & Below)

$

$

Not available

32

Snapper Pro 5102126X5

CASE BRACKET

Note: (S/N: 2014428802 & Above)

$

$

Not available

33

Snapper Pro 5101546

BRACKET PLATE, LOWER, 27

Note: (S/N: 2014428801 & Below)

$29.99

$

Usually ships in 2-12 days

0

33

Snapper Pro 5102126X6

CASE BRACKET

Note: (S/N: 2014428802 & Above)

$46.99

$

Usually ships in 2-12 days

0

34

Snapper Pro 5102126X9

AIR INLET TUBE

Note: (S/N: 2014428802 & Above)

$

$

Not available

34

Snapper Pro 5101548

AIR INLET TUBE, 27

Note: (S/N: 2014428801 & Below)

$88.99

$

Usually ships in 2-12 days

0

35

Snapper Pro 5101549

BREATHER TUBE, 27

Note: (S/N: 2014428801 & Below)

$9.99

$

Usually ships in 2-12 days

0

35

Snapper Pro 5102126X10

BREATHER TUBE

Note: (S/N: 2014428802 & Above)

$

$

Not available

36

Snapper Pro 5048135

SPACER, 1.13 X 1.75 X .62
(Superseded to 5048135FS)

$17.99

$

Usually ships in 2-12 days

0

37

Snapper Pro 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

38

Snapper Pro 1724815

SOLENOID-4 POLE 12 VOLT DC (TROMBETTA)
(Superseded to 1724815FS)

Note: (INCLUDES REF NOS 40 AND 41)

$29.99

$

Usually ships in 2-12 days

0

39

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

40

Snapper Pro 5023217

WASHER, 5/16 LIGHT LOCK (SV)
(Superseded to 5023217SM)

$3.49

$

Usually ships in 2-12 days

0

41

Snapper Pro 5023216

NUT, 5/16-24 JAM (SV)
(Superseded to 5023216SM)

$2.99

$

Usually ships in 2-12 days

0

42

Snapper Pro 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

43

Snapper Pro 5025187

WASHER, 1/4 INTERNAL TOOTH LOCK

$

$

Not available

44

Snapper Pro 5025470

SCREW,SELF-TAP,#8-32 X 3/8,WASH HEX, CZ
(Superseded to 5025470YP)

$3.49

$

In Stock, only 2 left!

0

45

Snapper Pro 5104348

EXTENSION, TAILPIPE, 3" - BLACK
(Superseded to 5104348YP)

$14.99

$

Usually ships in 2-12 days

0

46

Snapper Pro 5046416A

ANCHOR, CLUTCH - BLK
(Superseded to 5046416AYP)

$16.99

$

Usually ships in 2-12 days

0

47

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

48

Snapper Pro 5023173

CLAMP, HOSE, 1.000 DIA
(Superseded to 5023173SM)

Note: (For routing fuel line around engine.)

$3.99

$

Usually ships in 2-12 days

0

49

Snapper Pro 5101641

SCREEN, SPARK ARRESTER
(Superseded to 5101641YP)

Note: (Not Shown)

$84.99

$

Usually ships in 2-12 days

0

50

Snapper Pro 5025531

SET SCREW, 5/16-18 X 3/8, KNURL, W/PATCH
(Superseded to 5025531YP)

$3.49

$

In Stock, Qty 12

0
