S 200X (5900825) - Snapper Pro S200X Series 61" Zero-Turn Mower, 27hp Kohler Seat & Kick Plate Group Parts Diagram

S200X Series 61" Zero-Turn Mower, 27hp Kohler

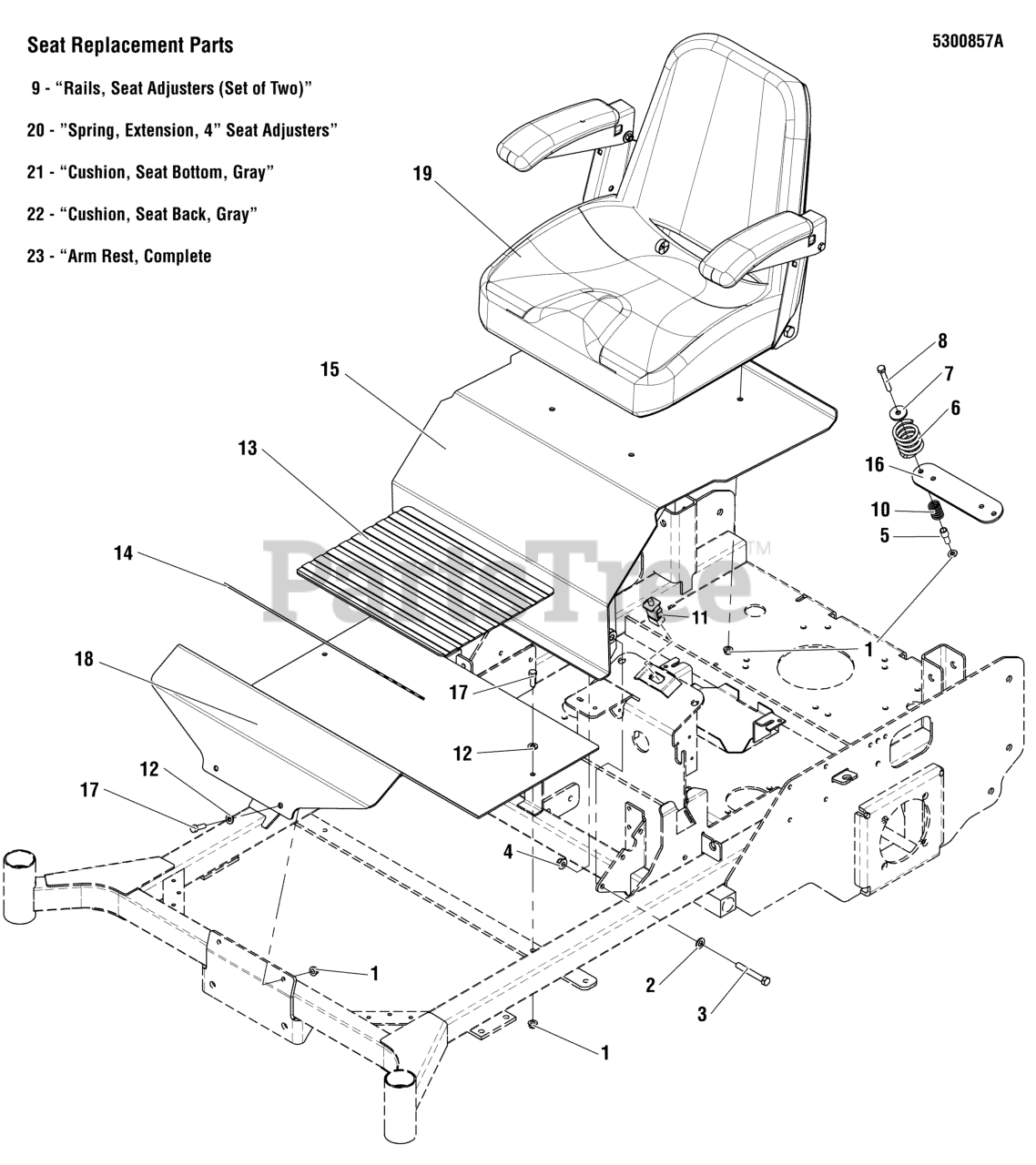

Seat & Kick Plate Group Parts Diagram

  • Title

1

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

2

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

3

Snapper Pro 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

Usually ships in 2-12 days

0

4

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

5

Snapper Pro 5102228

SPACER, .328 ID X .66, YZ
(Superseded to 5102228YP)

Note: (INSTALLED WITH SMALL END FACING DOWN.)

$14.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 7078299

SPRING, SEAT SUPPORT
(Superseded to 7078299SM)

$14.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 5044617

WASHER, .34 X 1.25 X 10 GA
(Superseded to 5044617SM)

$8.49

$

In Stock, only 2 left!

0

8

Snapper Pro 5025011X18X*

BOLT, 5/16-18 X 2-1/4" GD5 YZ

$

$

Currently unavailable

9

Snapper Pro 5102760X4

SLIDE RAILS
(Superseded to 5102760X4YP)

Note: (SEAT REPLACEMENT PARTS)

$183.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5102211

SPRING, COMP 720ID X 1.310LG X .118WIRE
(Superseded to 5102211YP)

$31.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5022198

SWITCH, PLUNGER, NO/NO SNAP IN
(Superseded to 5022198SM)

$15.99

$

In Stock, Qty 7

0

12

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

13

Snapper Pro 5101113

SAFETY WALK, 11.50 X 19.00
(Superseded to 5101114YP)

$68.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5101114

SAFETY WALK, 10.00 X 19.00
(Superseded to 5101114YP)

$68.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 5600301

ASSM, SEAT PLATE W/ DECALS - S200X

$233.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 5402732D

PLATE, SEAT SWITCH - RED
(Superseded to 5402732DYP)

$14.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

18

Snapper Pro 5404146D

PLATE, FLOOR PAN, S200X - SNAPPER RED

$

$

Currently unavailable

19

Snapper Pro 5022031

SEAT, GRAY, NO LOGO, CMPT

Note: (S/N: 2014582798 & BELOW)

$

$

Currently unavailable

19

Snapper Pro 5103004

SEAT, LOW COMPANION

Note: (S/N: 2014582799 & ABOVE)

$

$

Currently unavailable

20

Snapper Pro 5100636

SPRING, EXTENSION, SEAT ADJUSTMENT (YEL OR BLK)
(Superseded to 5100636SM)

Note: (SV)(Not an illustrated part.) (2" Total unstretched length)

$10.99

$

Usually ships in 2-12 days

0

21

Snapper Pro 5102760X2

CUSHION, SEAT BOTTOM, GRAY (SV)
(Superseded to 5102760X2YP)

Note: (SEAT REPLACEMENT PARTS)

$281.99

$

Usually ships in 2-12 days

0

22

Snapper Pro 5102760X1

CUSHION, SEAT BACK, GRAY (SV)
(Superseded to 5102760X1YP)

Note: (SEAT REPLACEMENT PARTS)

$145.99

$

Usually ships in 2-12 days

0

23

Snapper Pro 5102760X3

ARM REST, COMPLETE (SV)
(Superseded to 5102760X3YP)

Note: (SEAT REPLACEMENT PARTS)

$257.99

$

Usually ships in 2-12 days
