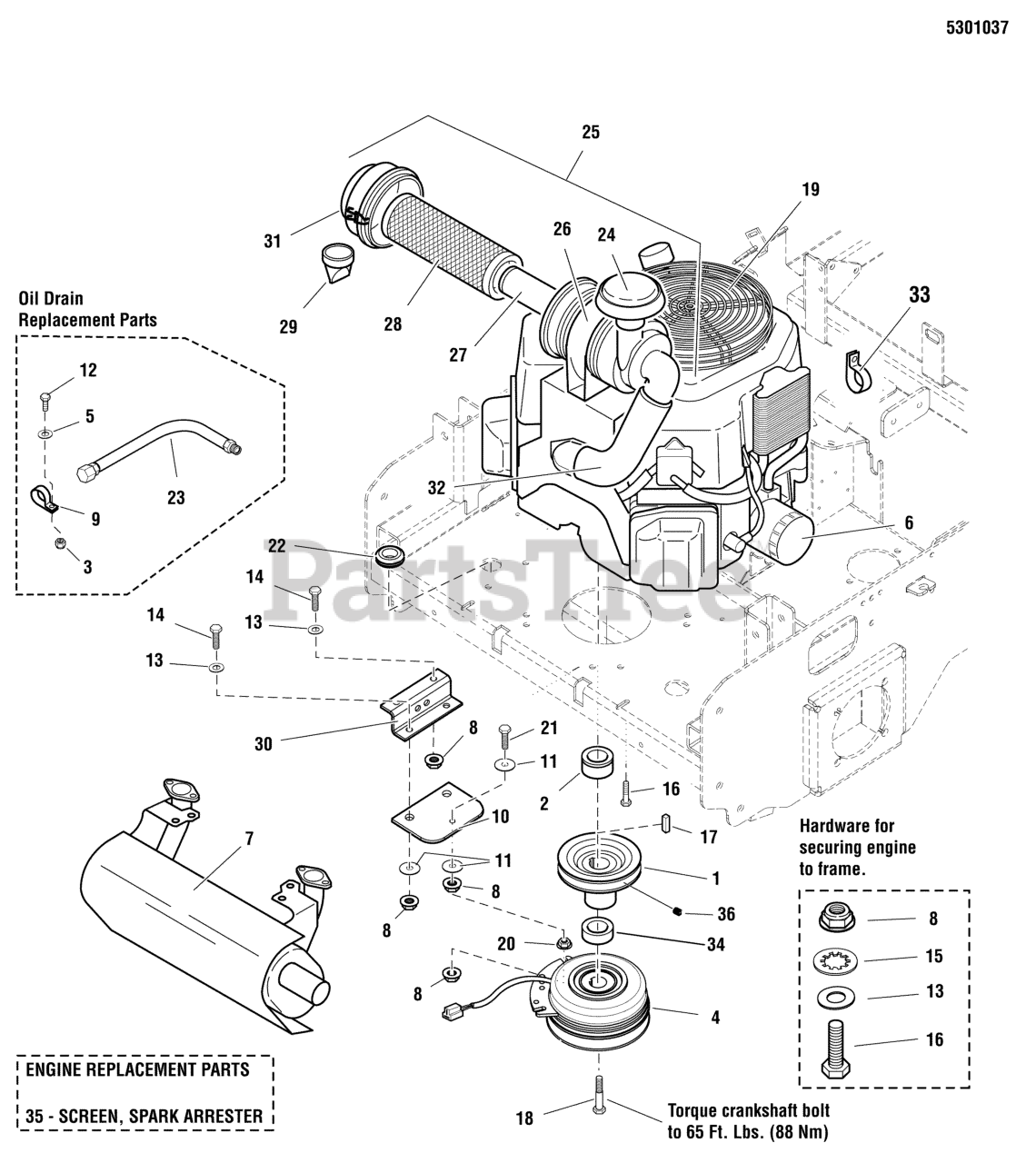

S 200X (5900825) - Snapper Pro S200X Series 61" Zero-Turn Mower, 27hp Kohler Engine & PTO Group - 27 HP Kohler Parts Diagram

S200X Series 61" Zero-Turn Mower, 27hp Kohler

Engine & PTO Group - 27 HP Kohler Parts Diagram

  • Title

1

Snapper Pro 5101022

PULLEY, 5.15 OD X 1-1/8 BORE B-SECT

$32.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5047033

SPACER, 1.13 X 1.75 X 1.03 YZ
(Superseded to 5047033SM)

$13.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

4

Snapper Pro 5105090

* CLUTCH, 5218-134, WARNER
(Superseded to 5105090YP)

$456.99

$

In Stock, only 1 left!

0

5

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

6

Snapper Pro 5021144X1

OIL FILTER, KOHLER (SV)

$

$

Not available

7

Snapper Pro 5101275

MUFFLER, KOHLER 21 HP - 27 HP
(Superseded to 5101275SM)

$329.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

9

Snapper Pro 5021500

CLAMP, VINYL INSULATED
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

10

Snapper Pro 5043636

CLUTCH ANCHOR PAD
(Superseded to 5043636SM)

$11.99

$

In Stock, only 1 left!

0

11

Snapper Pro 5044617

WASHER, .34 X 1.25 X 10 GA
(Superseded to 5044617SM)

$8.49

$

In Stock, only 2 left!

0

12

Snapper Pro 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

13

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

14

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 16

0

15

Snapper Pro 5025188

WASHER, 5/16" INT. TOOTH LOCK
(Superseded to 5025188SM)

$3.99

$

In Stock, only 1 left!

0

16

Snapper Pro 5025011X14

BOLT, 5/16-18 X 1-3/4 GD5 YZ
(Superseded to 5025011X14SM)

$3.99

$

In Stock, Qty 20+

0

17

Snapper Pro 5050407X8

KEY, 1/4 SQ X 1
(Superseded to 5050407X8SM)

$3.99

$

In Stock, only 1 left!

0

18

Snapper Pro 5045938

BOLT, CRANKSHAFT, 7/16" X 2-1/4"
(Superseded to 5102863FS)

Note: (TORQUE CRANKSHAFT BOLT TO 65 FT LBS (88 Nm))

$4.49

$

Usually ships in 2-12 days

0

19

* ENGINE, 27HP KOHLER

$

$

Not available

20

Snapper Pro 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, Qty 12

0

21

Snapper Pro 5025055X18

BOLT, 5/16-18 X 2-1/4 TFL, GD5 YZ
(Superseded to 5025055X18YP)

$3.99

$

In Stock, only 1 left!

0

22

Snapper Pro 5021379

GROMMET, 7/8
(Superseded to 5021379SM)

$6.99

$

Usually ships in 2-12 days

0

23

Snapper Pro 5048681

HOSE, OIL DRAIN
(Superseded to 5048681SM)

$18.99

$

In Stock, only 1 left!

0

24

Snapper Pro 5022892X3

RAIN COVER (SV)

$80.99

$

Usually ships in 2-12 days

0

25

Snapper Pro 5022892X4

KIT, AIR FILTER ASSEMBLY (SV)

Note: (INCLUDES REF NOS 24 - 31)

$376.99

$

Usually ships in 2-12 days

0

26

Snapper Pro 5022892X8

MOUNT, BRACKET, HOUSING (SV)

$142.99

$

Usually ships in 2-12 days

0

27

Snapper Pro 5022892X2

AIR FILTER, SECONDARY (SV)

$

$

Currently unavailable

28

Snapper Pro 5022892X1

AIR FILTER, PRIMARY (SV)

$

$

Currently unavailable

29

Snapper Pro 5022892X6

DUST VALVE (SV)

$

$

Currently unavailable

30

Snapper Pro 5046416A

ANCHOR, CLUTCH - BLK
(Superseded to 5046416AYP)

$16.99

$

Usually ships in 2-12 days

0

31

Snapper Pro 5022892X5

END CAP (SV)

$112.99

$

Usually ships in 2-12 days

0

32

Snapper Pro 5022892X9

AIR INLET TUBE (SV)

$

$

Currently unavailable

33

Snapper Pro 5023173

CLAMP, HOSE, 1.000 DIA
(Superseded to 5023173SM)

Note: (For routing fuel hose around engine.)

$3.99

$

Usually ships in 2-12 days

0

34

Snapper Pro 5101289

SPACER, 1.13 X 1.75 X .75

$20.99

$

Usually ships in 2-12 days

0

35

Snapper Pro 5101641

SCREEN, SPARK ARRESTER
(Superseded to 5101641YP)

Note: (Not Shown)

$84.99

$

Usually ships in 2-12 days

0

36

Snapper Pro 5025531

SET SCREW, 5/16-18 X 3/8, KNURL, W/PATCH
(Superseded to 5025531YP)

$3.49

$

In Stock, Qty 12

0
