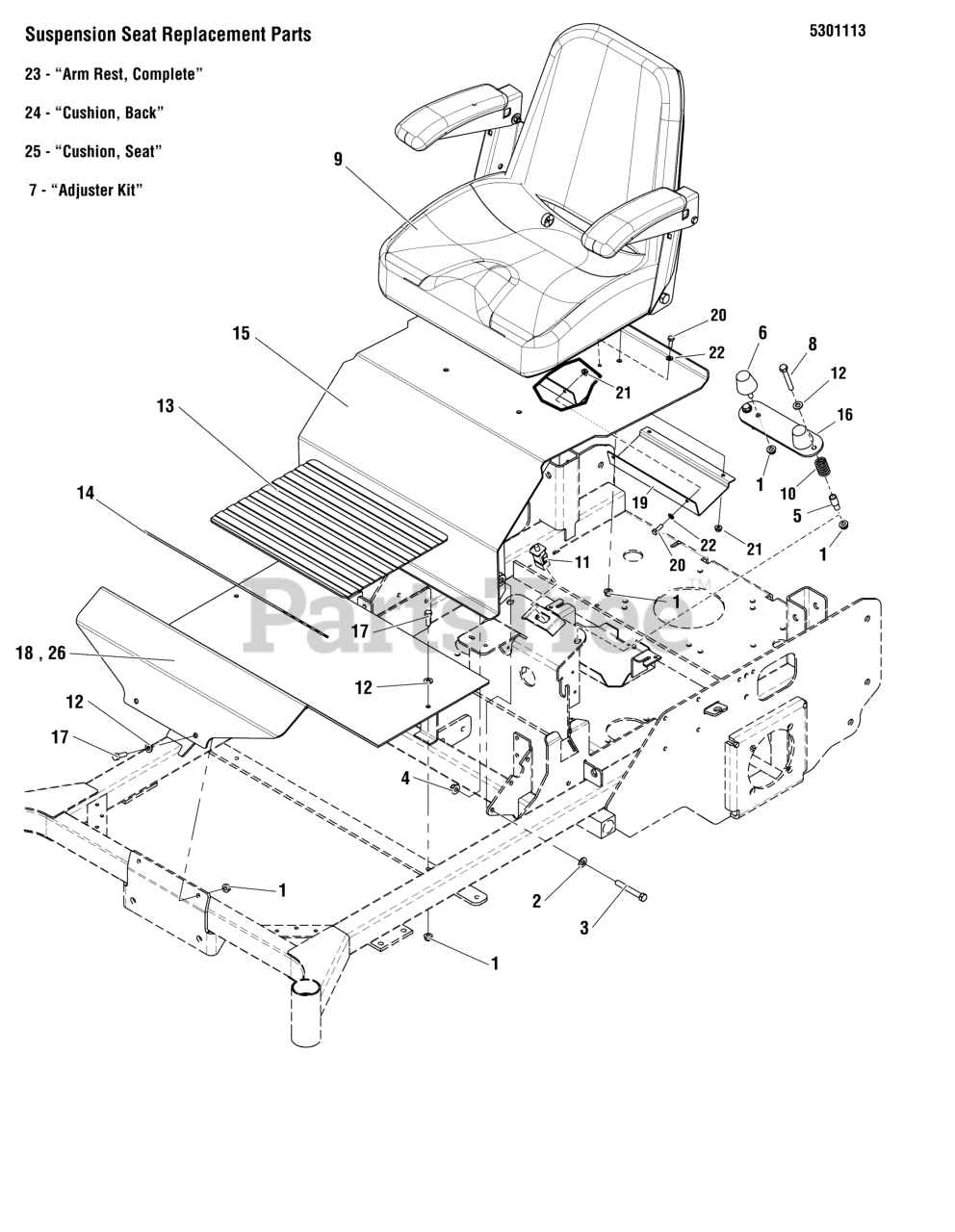

S 200X (5900695) - Snapper Pro S200X Series 61" Zero-Turn Mower, 27hp Kawasaki Suspension Seat & Kick Plate Group Parts Diagram

S200X Series 61" Zero-Turn Mower, 27hp Kawasaki

Suspension Seat & Kick Plate Group Parts Diagram

  • Title

1

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

2

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

3

Snapper Pro 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

Usually ships in 2-12 days

0

4

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

5

Snapper Pro 5102228

SPACER, .328 ID X .66, YZ
(Superseded to 5102228YP)

Note: (INSTALLED WITH SMALL END FACING DOWN.)

$14.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5022612

BUMPER, RUBBER 5/16-18
(Superseded to 5022612SM)

$23.99

$

In Stock, only 2 left!

0

7

Snapper Pro 5101214X4

KIT, ADJUSTER, S/S (SV)

Note: (SV)(SUSPENSION SEAT REPLACEMENT PARTS)

$174.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 5025011X18X*

BOLT, 5/16-18 X 2-1/4" GD5 YZ

$

$

Currently unavailable

9

Snapper Pro 5101214

SEAT, SUSP. TYPE, MICHIGAN SEAT, V5300, BLK
(Superseded to 5101214FS)

$1192.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5102211

SPRING, COMP 720ID X 1.310LG X .118WIRE
(Superseded to 5102211YP)

$31.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5022198

SWITCH, PLUNGER, NO/NO SNAP IN
(Superseded to 5022198SM)

$15.99

$

In Stock, Qty 7

0

12

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

13

Snapper Pro 5101113

SAFETY WALK, 11.50 X 19.00
(Superseded to 5101114YP)

$68.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5101114

SAFETY WALK, 10.00 X 19.00
(Superseded to 5101114YP)

$68.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 5600301

ASSM, SEAT PLATE W/ DECALS - S200X

$233.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 5402732D

PLATE, SEAT SWITCH - RED
(Superseded to 5402732DYP)

$14.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

18

Snapper Pro 5402726D

PLATE, FLOOR PAN, SNP RED

Note: (S/N: 2013109756 & BELOW)

$207.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 5403471D

PLATE, SEAT SUPPORT EXTENSION
(Superseded to 5403471DFS)

$59.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

21

Snapper Pro 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

22

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

23

Snapper Pro 5101214X1

KIT, ARM REST, S/S (SV)

Note: (SUSPENSION SEAT REPLACEMENT PARTS)

$269.99

$

Usually ships in 2-12 days

0

24

Snapper Pro 5101214X2

CUSHION, BACK, S/S (SV)

Note: (SUSPENSION SEAT REPLACEMENT PARTS)

$373.99

$

Usually ships in 2-12 days

0

25

Snapper Pro 5101214X3

CUSHION, SEAT, S/S (SV)

Note: (SUSPENSION SEAT REPLACEMENT PARTS)

$397.99

$

In Stock, only 1 left!

0

26

Snapper Pro 5404146D

PLATE, FLOOR PAN, S200X - SNAPPER RED

Note: (S/N: 2013109757 & ABOVE)

$

$

Currently unavailable
