S 200X (5900694) - Snapper Pro 72" Mower Deck 72" Mower Deck - Rollers & Casters Parts Diagram

72" Mower Deck

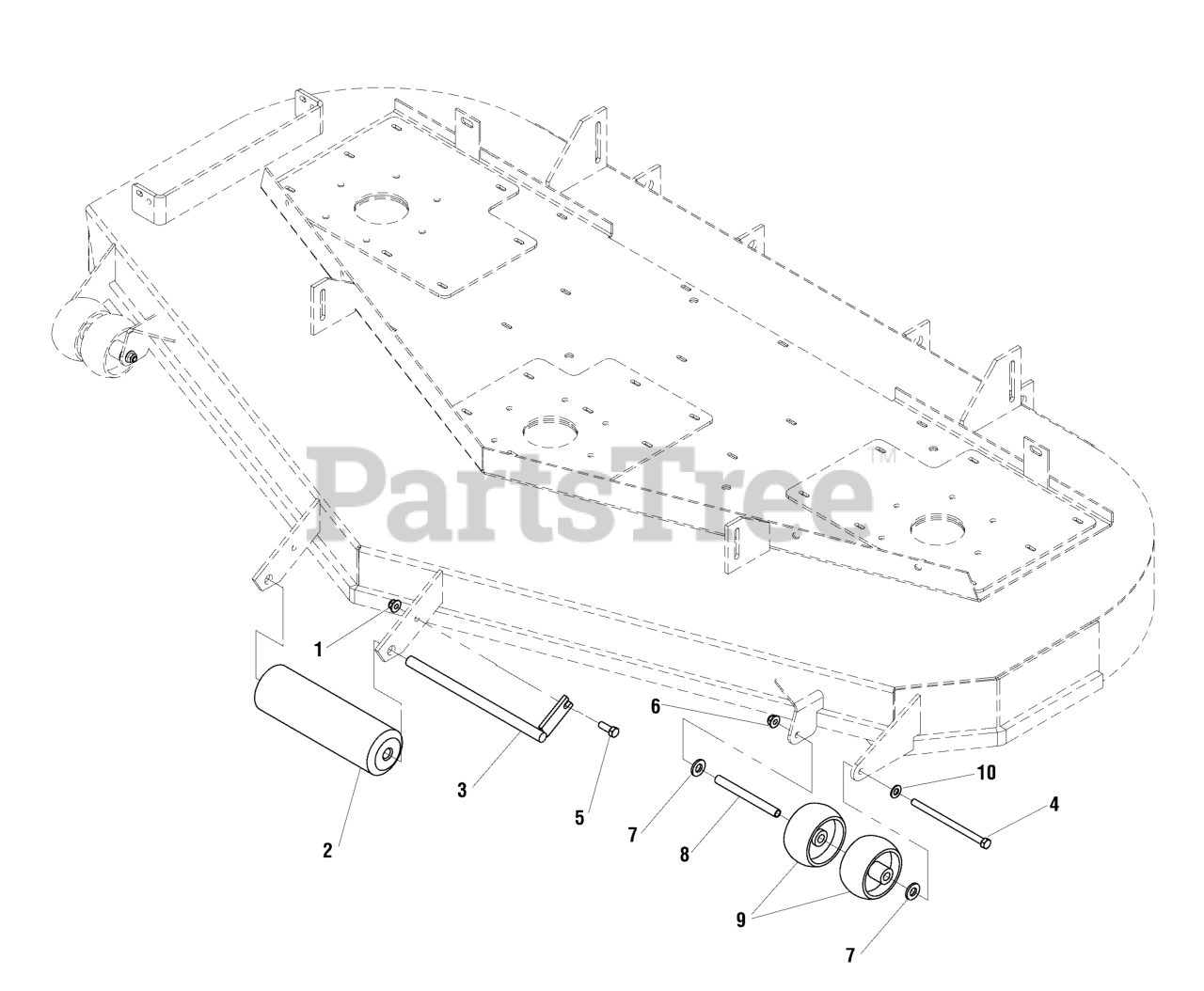

72" Mower Deck - Rollers & Casters Parts Diagram

  • Title
1

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

2

Snapper Pro 5020785

ROLLER, DECK
(Superseded to 5020785SM)

$29.99

$

In Stock, Qty 20+

0

3

Snapper Pro 5041655A

USE 5105755 - WELD, BRKT,ROLLER PIN,BLK
(Superseded to 5105755)

$46.99

$

In Stock, only 2 left!

0

4

Snapper Pro 5025013X48

BOLT, 3/8-16 X 6" GD5 CZ
(Superseded to 5025013X48SM)

$5.99

$

In Stock, Qty 20+

0

5

Snapper Pro 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

6

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

7

Snapper Pro 5025440

WASHER, 1/2 GD9 YZ
(Superseded to 5025440SM)

$4.49

$

In Stock, only 1 left!

0

8

Snapper Pro 5046586

SPACER, .38 X .50 X 5.06
(Superseded to 5046586SM)

$12.99

$

In Stock, Qty 20+

0

9

Snapper Pro 1714760

WHEEL - 2.00 WIDE 3.92 DIA 0.531ID POLY
(Superseded to 1714760SM)

$6.49

$

In Stock, Qty 20+

0

10

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0
