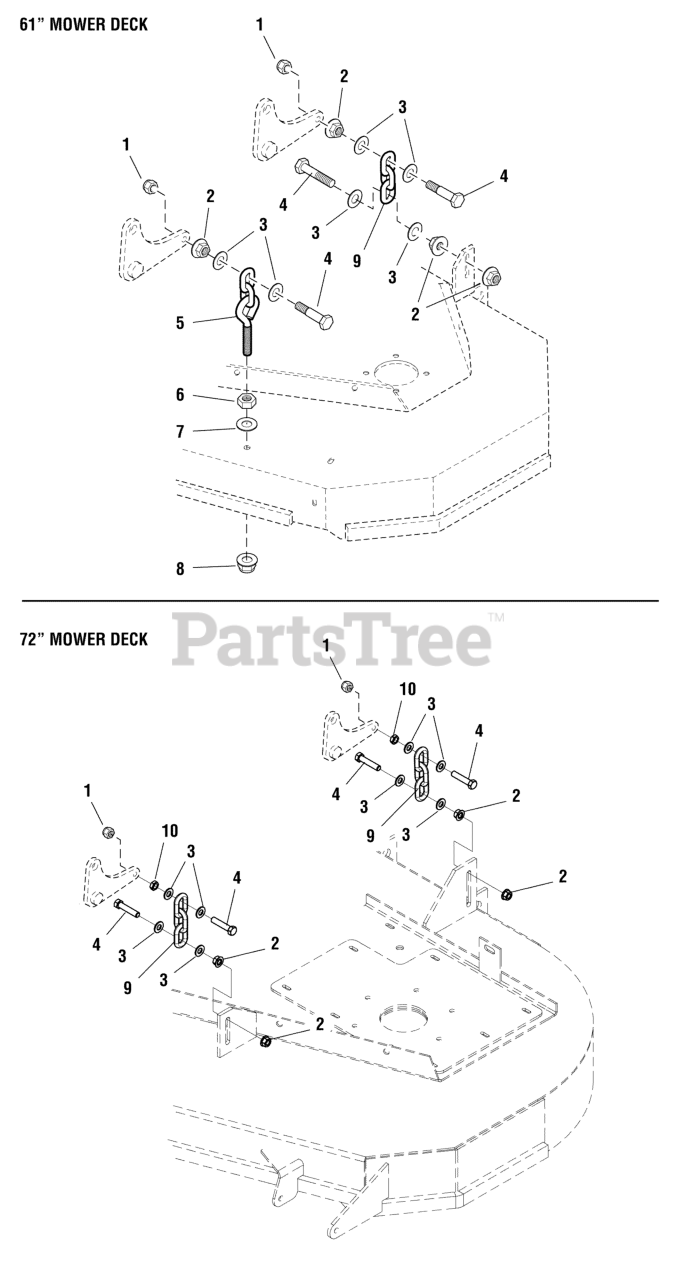

S 200X (5900694) - Snapper Pro 72" Mower Deck 61" Mower Decks Parts Diagram

72" Mower Deck

61" Mower Decks Parts Diagram

  • Title
1

Snapper Pro 5025100

NUT, 3/8-16 HEX SIDE LOCK
(Superseded to 5025100SM)

$3.49

$

In Stock, Qty 20+

0

2

Snapper Pro 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

3

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

4

Snapper Pro 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$3.99

$

In Stock, only 2 left!

0

5

Snapper Pro 5104309

HANGER, FRONT DECK-2LINK, 5.5" EB
(Superseded to 5104309YP)

$18.99

$

In Stock, only 2 left!

0

6

Snapper Pro 5025038

NUT, 1/2-13 HEX
(Superseded to 703340)

$7.99

$

In Stock, only 1 left!

0

7

Snapper Pro 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 12

0

8

Snapper Pro 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

9

Snapper Pro 5050878X3

CHAIN, 5/16 GD30, 3 LINKS
(Superseded to 5050878X3SM)

$8.49

$

In Stock, only 2 left!

0

10

Snapper Pro 5025100

NUT, 3/8-16 HEX SIDE LOCK
(Superseded to 5025100SM)

$3.49

$

In Stock, Qty 20+

0
