S 200X (5900693) - Snapper Pro S200X Series Zero-Turn Mower, 32hp Briggs & Stratton Deck Lift Group Parts Diagram

S200X Series Zero-Turn Mower, 32hp Briggs & Stratton

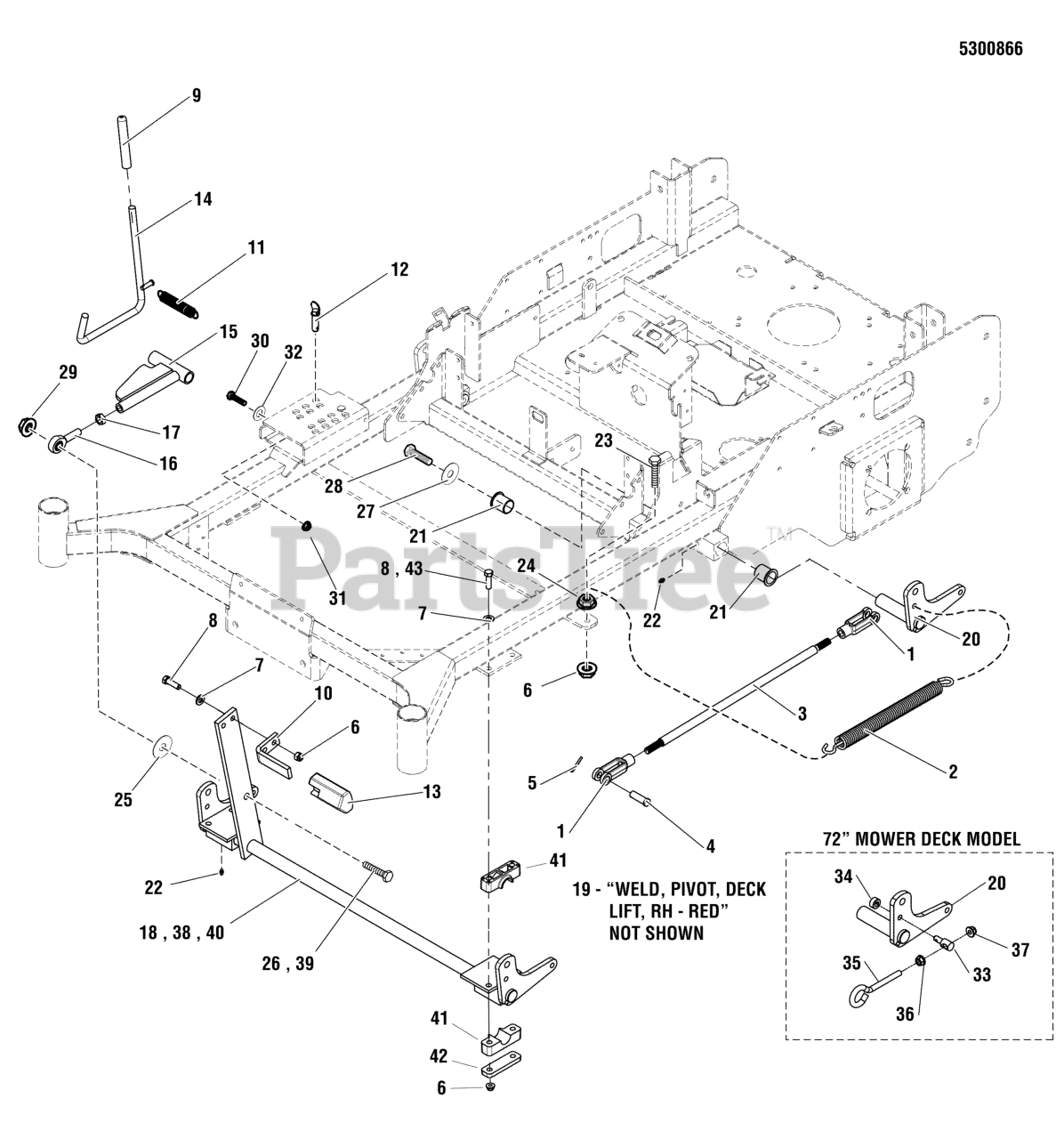

Deck Lift Group Parts Diagram

  • Title

1

Snapper Pro 5023174

CLEVIS, 1/2-20, STEEL
(Superseded to 5023174SM)

$16.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5023355

SPRING, DECK LIFT ASSIST
(Superseded to 5023355SM)

$49.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5103758

ROD, DECK LIFT, TWR
(Superseded to 5103758YP)

$37.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 5025328X12

PIN, CLEVIS, 1/2 X 1 1/2, YZP
(Superseded to 5025328X12SM)

$4.99

$

In Stock, only 4 left!

0

5

Snapper Pro 5025203X6

PIN, COTTER, 1/8" X 3/4
(Superseded to 5025203X6SM)

$3.99

$

In Stock, only 3 left!

0

6

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

7

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

8

Snapper Pro 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

Note: (S/N: 2013181135 & ABOVE QTY. 2)

$3.99

$

In Stock, Qty 12

0

9

Snapper Pro 5021880

GRIP, FOAM
(Superseded to 5021880SM)

$5.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5061569A

PEDAL, FOOT - BLK
(Superseded to 5061569AA)

$40.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5020639

SPRING, EXTENSION
(Superseded to 5020639SM)

$31.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5023498

PIN, HITCH, 1/2 X 2.00 OAL, YP
(Superseded to 5023498SM)

$8.99

$

In Stock, only 2 left!

0

13

Snapper Pro 5104262

PEDAL, Rubber
(Superseded to 5104262YP)

$10.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5408305A

WELD, ROD DECK LIFT - BLK
(Superseded to 5408305AYP)

$27.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 5402757D

WELD, DECK ADJUST LINK - SNP RED
(Superseded to 5402757A)

$49.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 5022434

BALL JOINT, 1/2-20, MALE
(Superseded to 5022434SM)

$42.99

$

In Stock, only 2 left!

0

17

Snapper Pro 5025089

NUT, 1/2-20 HEX JAM
(Superseded to 5025089SM)

$3.99

$

In Stock, Qty 18

0

18

Snapper Pro 5402747D

WELD, DECK LIFT SHAFT - RED

Note: (S/N: 2013109756 & BELOW)

$343.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 5402766D

WELD, PIVOT, DECK LIFT, RH - RED

$68.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 5402767D

WELD, PIVOT, DECK LIFT, LH - RED

$74.99

$

Usually ships in 2-12 days

0

21

Snapper Pro 5023343

BUSHING, 1.00 X 1.13 X 1.38, PLASTIC
(Superseded to 5023343SM)

$6.49

$

Usually ships in 2-12 days

0

22

Snapper Pro 5020095

GREASE FITTING, 1/4-28 STRAIGHT
(Superseded to 5020095SM)

$3.99

$

In Stock, only 3 left!

0

23

Snapper Pro 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

24

Snapper Pro 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

25

Snapper Pro 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 8

0

26

Snapper Pro 5025017X16

BOLT, 1/2-13 X 2" GD5 CZ
(Superseded to 5025017X16YP)

Note: (S/N: 2013109756 & BELOW)

$4.49

$

In Stock, only 1 left!

0

27

Snapper Pro 5100548

WASHER, .390 X 1.50 X .109, YZ
(Superseded to 5100548SM)

$4.49

$

Usually ships in 2-12 days

0

28

Snapper Pro 5025443

BOLT, 3/8-16 X 3/4, GD5, YZ WITH PATCH
(Superseded to 5025443SM)

$3.49

$

Usually ships in 2-12 days

0

29

Snapper Pro 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

30

Snapper Pro 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 20+

0

31

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

32

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

33

Snapper Pro 5100380

ADJUSTER, DECK HANGER
(Superseded to 5100380SM)

Note: (72" MODEL)

$20.99

$

In Stock, only 1 left!

0

34

Snapper Pro 5010546

COLLAR, 3/8 SET
(Superseded to 5010546SM)

Note: (72" MODEL)

$5.99

$

Usually ships in 2-12 days

0

35

Snapper Pro 5023497

EYE BOLT, 3/8-16 X 5, 2.88THRD, 1EYE, CZ
(Superseded to 5023497SM)

Note: (72" MODEL)

$9.49

$

In Stock, only 1 left!

0

36

Snapper Pro 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

Note: (72" MODEL)

$3.49

$

In Stock, only 2 left!

0

37

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

Note: (72" MODEL)

$4.49

$

In Stock, Qty 20+

0

38

Snapper Pro 5404219D

WELD, DECK LIFT SHAFT - SNAPPER RED

Note: (S/N: 2013109757 - 2013181134)

$

$

Currently unavailable

39

Snapper Pro 5025017X18

BOLT, 1/2-13 X 2-1/4" GD5 CZ
(Superseded to 5025017X18SM)

Note: (S/N: 2013109757 - 2013181134)

$5.99

$

Usually ships in 2-12 days

0

40

Snapper Pro 5404301D

WELD, DECK LIFT SHAFT - RED
(Superseded to 5404301DFS)

Note: (S/N: 2013181135 & ABOVE)

$207.99

$

Usually ships in 2-12 days

0

41

Snapper Pro 5100634

PIVOT BLOCK, PLASTIC
(Superseded to 5100634SM)

Note: (S/N: 2013181135 & ABOVE)

$7.49

$

Usually ships in 2-12 days

0

42

Snapper Pro 5403925A

PLATE, PIVOT BLOCK SUPPORT - BLK
(Superseded to 5403925AAFS)

Note: (S/N: 2013181135 & ABOVE)

$3.49

$

Usually ships in 2-12 days

0

43

Snapper Pro 5025013X22

BOLT, 3/8-16 X 2-3/4" GD5 CZ
(Superseded to 5025013X22SM)

Note: (S/N: 2013181135 & ABOVE)

$4.49

$

In Stock, Qty 5

0
