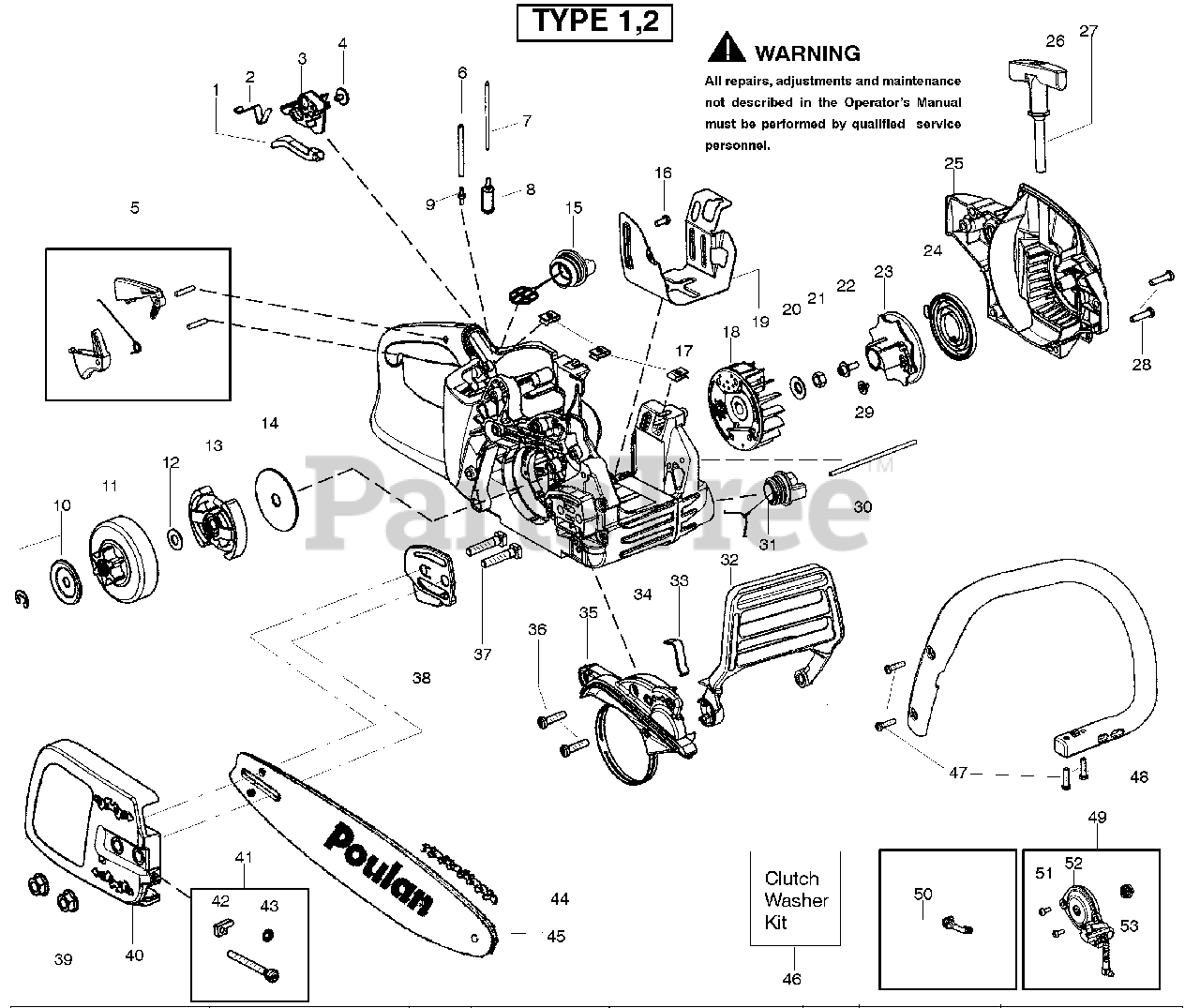

S 1970 - Poulan Woodshark Chainsaw, Type 2 (2006-06) Starter Parts Diagram

Woodshark Chainsaw, Type 2

Starter Parts Diagram

  • Title

1

Poulan 530057893

Knob-Choke

$4.99

$

Usually ships in 3-10 days

0

2

Poulan 530057908

Spring-Ign. Switch

$6.49

$

Usually ships in 3-10 days

0

3

Poulan 530057891

Lever-Ign. Switch

$

$

Not available

4

Poulan 530016080

Screw

$6.49

$

In Stock, only 1 left!

0

5

Poulan 530071888

Kit-Trigger/Lockout

$10.99

$

Usually ships in 3-10 days

0

6

Poulan 530069216

Kit-Fuel Line (Large)

$11.99

$

In Stock, Qty 20+

0

7

Poulan 530069247

Kit-Fuel Line (Small)

$7.99

$

In Stock, Qty 20+

0

8

Poulan 530095646

Assy-Fuel Pick Up

$6.99

$

In Stock, Qty 20+

0

9

Poulan 530023877

Fitting-Fuel line

$5.99

$

In Stock, Qty 6

0

10

Poulan 530071945

Kit-Clutch Washer

$6.49

$

In Stock, Qty 8

0

11

Poulan 530057905

Assy-Clutch Drum 3/8"
(Superseded to 501628301)

$17.99

$

In Stock, Qty 10

0

12

Poulan 530071945

Kit-Clutch Washer

$6.49

$

In Stock, Qty 8

0

13

Poulan 530057907

Assy-Clutch

$13.99

$

In Stock, only 4 left!

0

14

Poulan 530016419

Washer-Large Clutch

$6.49

$

In Stock, only 2 left!

0

15

Poulan 530047192

Assy-Fuel Cap w/ret
(Superseded to 580940901)

$7.99

$

In Stock, only 3 left!

0

16

Poulan 530016064

Screw

$4.99

$

In Stock, only 2 left!

0

17

Poulan 530015922

Nut-"U" type speed

$6.49

$

In Stock, Qty 5

0

18

Poulan 530057937

Assy-Flywheel
(Superseded to 530071905)

$66.99

$

In Stock, only 3 left!

0

19

Poulan 530057911

Shield-Heat

$4.99

$

Usually ships in 3-10 days

0

20

Poulan 530015127

Washer-Flywheel

$6.49

$

Usually ships in 3-10 days

0

21

Poulan 530016134

Nut-Flywheel

$6.49

$

In Stock, only 1 left!

0

22

Poulan 530015920

Screw

$6.49

$

In Stock, Qty 7

0

23

Poulan 530057890

Pulley-Starter

$9.99

$

Usually ships in 3-10 days

0

24

Poulan 530042095

Spring-Starter
(Superseded to 545008013)

$6.99

$

In Stock, Qty 9

0

25

Poulan 530058810

Housing-Fan
(Superseded to 579372001)

$14.99

$

In Stock, Qty 5

0

26

Poulan 530037485

Handle-Starter
(Superseded to 530056402)

$6.49

$

In Stock, only 1 left!

0

27

Poulan 530069232

Kit-Rope

$7.49

$

In Stock, Qty 20+

0

28

Poulan 530016432

Screw

$6.49

$

In Stock, only 3 left!

0

29

Poulan 530016080

Screw

$6.49

$

In Stock, only 1 left!

0

30

Poulan 530058786

Assy-Oil Vent

$4.99

$

In Stock, only 1 left!

0

31

Poulan 530057236

Assy-Oil Cap w/ret.

$

$

Not available

32

Poulan 530057897

Handguard
(Superseded to 585600501)

$6.49

$

In Stock, Qty 10

0

33

Poulan 530016416

Spring-Handguard

$6.49

$

In Stock, only 3 left!

0

34

Poulan 530058863

Assy-Chassis
(Superseded to 530058870)

Note: (Incl. 5,6,7,8,9,15,16 17,19,31,33,37)

$

$

Not available

35

Poulan 530071893

Kit-Chainbrake

$26.99

$

In Stock, only 1 left!

0

36

Poulan 530016432

Screw

$6.49

$

In Stock, only 3 left!

0

37

Poulan 530016133

Bolt-Bar

$6.49

$

In Stock, only 2 left!

0

38

Poulan 530057910

Plate-Bar

$5.99

$

In Stock, only 3 left!

0

39

Poulan 530015917

Nut-Bar

$3.99

$

In Stock, Qty 12

0

40

Poulan 530058933

Assy-Clutch Cover

Note: (Incl. # 41)

$17.99

$

In Stock, only 1 left!

0

41

Poulan 530069611

Kit-Bar Adjust

Note: (Incl. 42,43)

$9.49

$

In Stock, Qty 13

0

42

Poulan 530015826

Pin-Bar Adjust

$4.99

$

In Stock, Qty 20+

0

43

Poulan 530038593

Retainer-Bar Adjust

$4.99

$

In Stock, Qty 20+

0

44

Poulan 952051209

Accy-14" Chain
(Superseded to 581562101)

$20.99

$

Usually ships in 3-10 days

0

45

Poulan 952044368

Accy-14" Bar

$

$

Not available

46

Poulan 530071945

Kit-Clutch Washer

Note: (Incl. 10,12)

$6.49

$

In Stock, Qty 8

0

47

Poulan 530016432

Screw

$6.49

$

In Stock, only 3 left!

0

48

Poulan 530057888

Handle-Front

$

$

Not available

49

Poulan 530071891

Kit-Oil Pump

Note: (Incl. 51,52,53)

$27.99

$

In Stock, only 1 left!

0

50

Poulan 530057924

Assy-Oil Pick Up

$6.49

$

In Stock, Qty 9

0

51

Poulan 530016064

Screw

$4.99

$

In Stock, only 2 left!

0

52

Poulan 530057931

Assy-Oil Pump
(Superseded to 581071401)

$20.99

$

In Stock, only 1 left!

0

53

Poulan 530037820

Gear-Worm

$6.49

$

In Stock, only 3 left!

0
