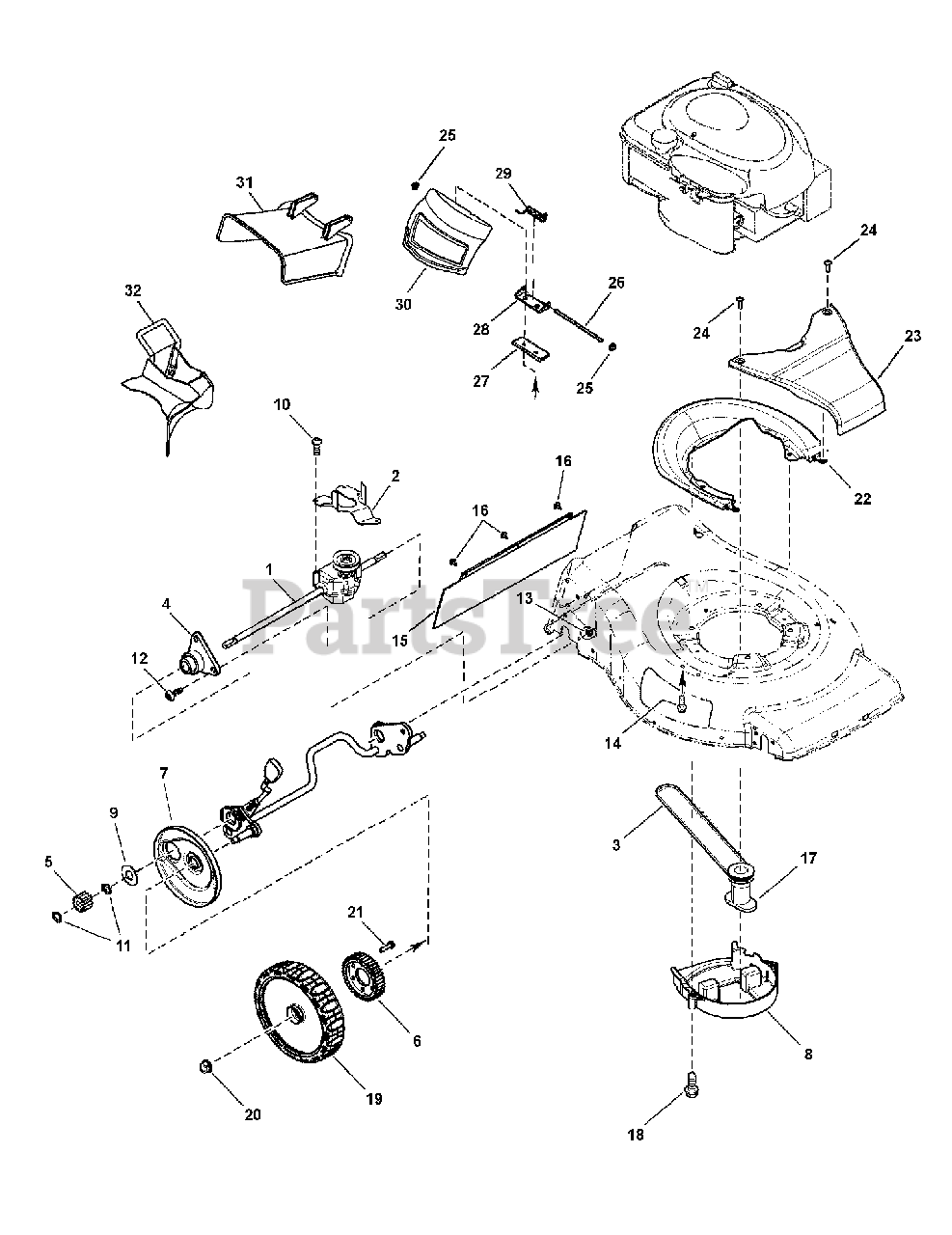

S 19550FC (881227) - Snapper 19" Walk-Behind Mower, 5.5hp Drive Group Parts Diagram

19" Walk-Behind Mower, 5.5hp

Drive Group Parts Diagram

  • Title

1

Snapper 880341YP

TRANSMISSION, Self-Propel

$119.99

$

Usually ships in 2-12 days

0

2

Snapper 880282YP

BELT GUIDE, Transmission

$12.99

$

Usually ships in 2-12 days

0

3

Snapper 880268YP

BELT, Drive, 3L 32.5" EL

$26.99

$

Usually ships in 2-12 days

0

4

Snapper 880787

RETAINER ASSEMBLY, Ball Bearing (Includes: 880786 Retainer, 880788 Bearing)
(Superseded to 880787YP)

$17.99

$

Usually ships in 2-12 days

0

5

Snapper 880226YP

GEAR, Pinion 11 Tooth, .91" Lg, .503 Oblong ID

$7.99

$

Usually ships in 2-12 days

0

6

Snapper 880225YP

GEAR, Wheel, 39T

$7.49

$

Usually ships in 2-12 days

0

7

Snapper 880230YP

COVER, Dust, RH

$9.49

$

Usually ships in 2-12 days

0

7

Snapper 880640YP

COVER, Dust, LH (Not Shown)

$22.99

$

In Stock, only 1 left!

0

8

Snapper 880796

BELT GUIDE, Front
(Superseded to 880796YP)

$22.99

$

Usually ships in 2-12 days

0

9

Snapper 880324YP

WASHER, Thrust, .506" ID, 1.177" OD

$3.49

$

Usually ships in 2-12 days

0

10

Snapper 880760YP

SCREW, #10-14 x .88 Plastite

$4.49

$

Usually ships in 2-12 days

0

11

Snapper 880269YP

RING, .46" ID, .050" Thk, Retaining

$3.99

$

Usually ships in 2-12 days

0

12

Snapper 880845

SCREW, 1/4-20 X 5/8, Torx Truss Head
(Superseded to 880845YP)

$3.49

$

Usually ships in 2-12 days

0

13

Snapper 880859

NUT, Flange Lock, 1/4-20, BZ
(Superseded to 880859YP)

$3.99

$

Usually ships in 2-12 days

0

14

Snapper 880664YP

SCREW, 1/4"-20 X 1/2" Taptite Pan Head

$3.99

$

Usually ships in 2-12 days

0

15

Snapper 881217

GUARD, REAR
(Superseded to 881217YP)

$13.99

$

Usually ships in 2-12 days

0

16

Snapper 880356

SCREW, Self-Tapping Washer Head, #10-16 x .5
(Superseded to 880356YP)

$2.99

$

Usually ships in 2-12 days

0

17

Snapper 880567YP

ADAPTER, Blade, Self-Propelled

$31.99

$

In Stock, only 1 left!

0

18

Snapper 704000

SCREW, 3/8-16 X 1.0, Hex Washer Self-Tap, ZC/CL

$4.99

$

Usually ships in 2-12 days

0

19

Snapper 880195YP

WHEEL ASSEMBLY, Rear, Self-Propelled, 200MM (7.1"), BBSP TREAD III
(Superseded to 880194YP)

Note: (Used on propelled model #881228)

$

$

Not available

20

Snapper 880067

NUT, Flange Lock 3/8-16
(Superseded to 880067YP)

$2.99

$

Usually ships in 2-12 days

0

21

Snapper 880266YP

SCREW, Hex Head, 1/4 x 1" Hi-Lo Thread

$3.49

$

In Stock, only 1 left!

0

22

Snapper 881234

COVER, Rear, 19, SD
(Superseded to 881234YP)

$31.99

$

Usually ships in 2-12 days

0

23

Snapper 881235

COVER, Front, 19, SD

$

$

Currently unavailable

24

Snapper 880456YP

SCREW, 1/4-20X7/8, Torx Truss Head

$3.49

$

Usually ships in 2-12 days

0

25

Snapper 704005

NUT, 1/4", Push, Zinc/Clear

$4.49

$

In Stock, Qty 20+

0

26

Snapper 880581

ROD, Mulch Cover
(Superseded to 880581YP)

$13.99

$

In Stock, only 2 left!

0

27

Snapper 880583

SPACER, Mulch Cover Bracket
(Superseded to 880583YP)

$3.99

$

Usually ships in 2-12 days

0

28

Snapper 880584

BRACKET, Mulch Cover
(Superseded to 880584YP)

$16.99

$

Usually ships in 2-12 days

0

29

Snapper 880582

SPRING, Mulch Cover Torsion
(Superseded to 880582YP)

$6.99

$

Usually ships in 2-12 days

0

30

Snapper 880580

COVER, Mulch, Black
(Superseded to 880580YP)

$24.99

$

Usually ships in 2-12 days

0

31

Snapper 880579

DEFLECTOR, Chute, Black
(Superseded to 880579YP)

$39.99

$

In Stock, only 1 left!

0

32

Snapper 880909

PLUG, Mulch
(Superseded to 880909YP)

$43.99

$

Usually ships in 2-12 days
