S 19550EX (881544) - Snapper 19" Walk-Behind Mower, 5.5hp Handle Group Parts Diagram

19" Walk-Behind Mower, 5.5hp

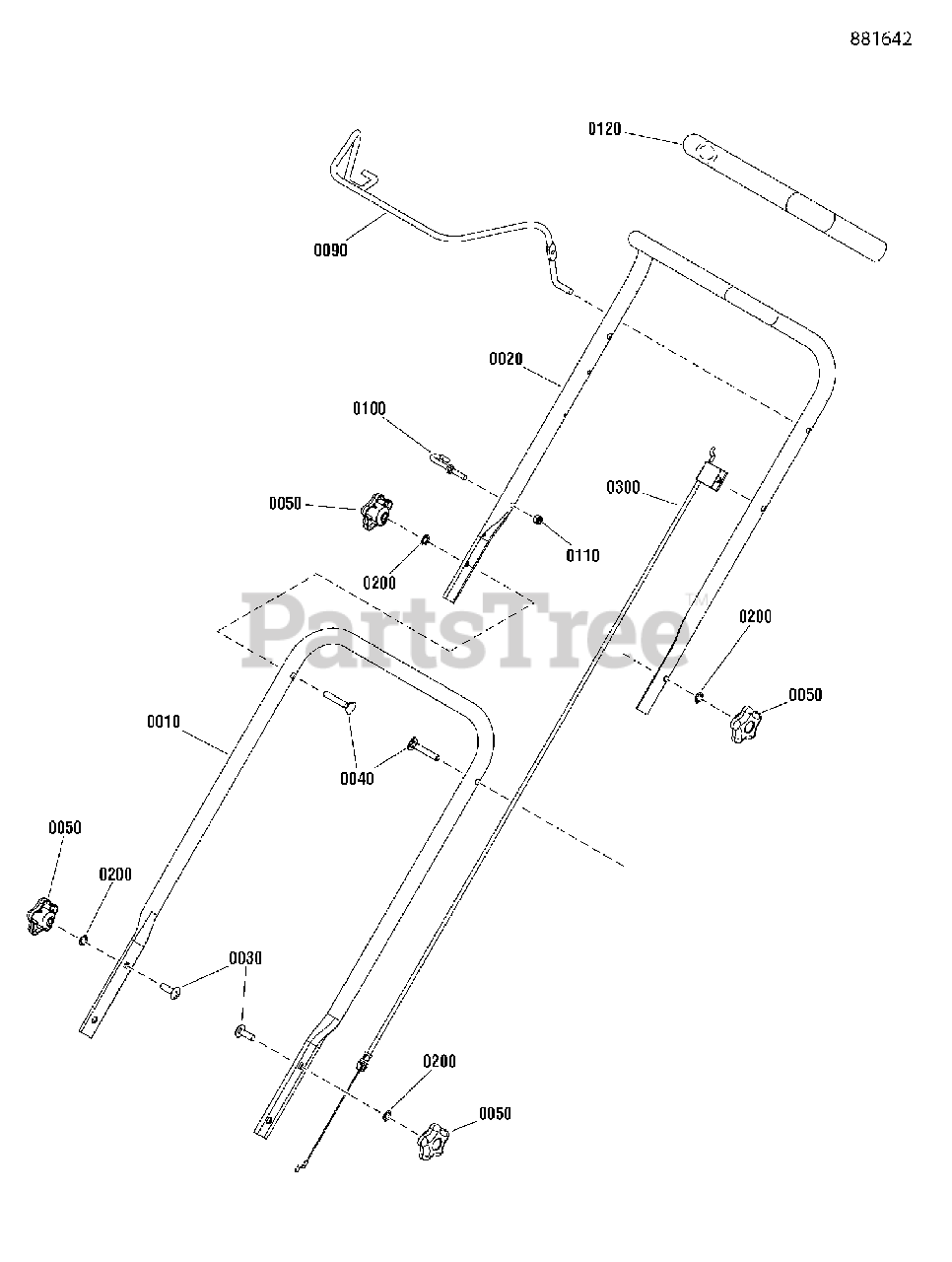

Handle Group Parts Diagram

  • Title

0010

Snapper 880571BH

HANDLE, Lower, 19" Gray
(Superseded to 880571BHYP)

$39.99

$

Usually ships in 2-12 days

0

0020

Snapper 880210BH

HANDLE, Upper, 19" Gray
(Superseded to 880210AYP)

$85.99

$

Usually ships in 2-12 days

0

0030

Snapper 7091714

BOLT, 5/16-18 x 1" Round Head Square Neck, GR 5 YZ
(Superseded to 703483)

$3.99

$

In Stock, only 1 left!

0

0040

Snapper 7091189

BOLT, 5/16-18 x 2" Curved Head Square Neck, GR 2
(Superseded to 703059)

$4.49

$

In Stock, Qty 15

0

0050

Snapper 7105085

KNOB, Handle, 5-Prong
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

0090

Snapper 7105692Z

LEVER, Engine Stop, 19"
(Superseded to 881855YP)

$52.99

$

Usually ships in 2-12 days

0

0100

Snapper 7028488

GUIDE, Rope (1/4-20 threads)
(Superseded to 7028488MA)

$6.49

$

Usually ships in 2-12 days

0

0110

Snapper 880561

NUT, 1/4-20 Hex, Nyloc
(Superseded to 880561YP)

$3.99

$

Usually ships in 2-12 days

0

0120

Snapper 880457

TUBING, Foam - Black P-481
(Superseded to 880457YP)

$11.99

$

Usually ships in 2-12 days

0

0200

Snapper 7090391

WASHER, 5/16 Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

0300

Snapper 880279

CABLE, Engine Stop
(Superseded to 880279YP)

$18.99

$

In Stock, only 1 left!

0
