S 19 ZPN - Lawn-Boy Walk-Behind Mower (SN: H00000001 - H99999999) (1989) Housing And Shroud Group Model: S19zpn Parts Diagram

Walk-Behind Mower

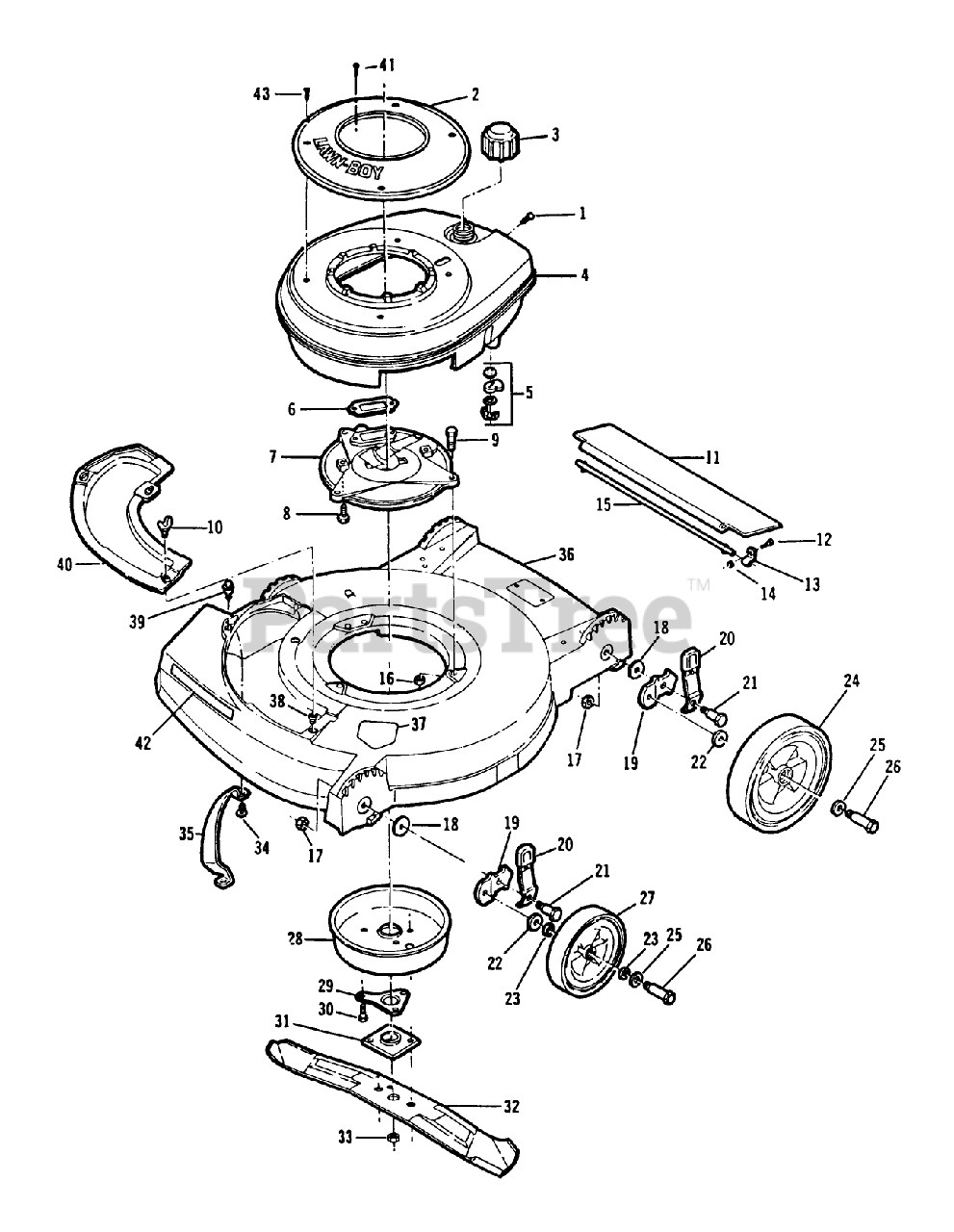

Housing And Shroud Group Model: S19zpn Parts Diagram

  • Title

1

Lawn-Boy 608997

SCREW S

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$1.99

$

In Stock, only 2 left!

0

2

Lawn-Boy 683957

See Supercession: 684301
(Superseded to 684301)

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

3

Lawn-Boy 682755

FUEL CAP & INSERT

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$21.99

$

Usually ships in 3-6 days

0

Lawn-Boy 607213

GASKET S

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$1.99

$

In Stock, Qty 20+

0

Lawn-Boy 609150

BAFFLE - FOAM SM

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$5.49

$

In Stock, Qty 11

0

4

Lawn-Boy 683916

See Supercession: 16-5539
(Superseded to 16-5539)

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

5

Lawn-Boy 681818

SHUT OFF VALVE KIT

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

6

Lawn-Boy 609420

See Supercession: 93-1233
(Superseded to 93-1233)

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$1.99

$

In Stock, Qty 5

0

7

Lawn-Boy 611802

PLATE F

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$243.99

$

In Stock, only 1 left!

0

8

Lawn-Boy 607601

SCREW V

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$3.99

$

In Stock, only 2 left!

0

9

Lawn-Boy 611774

SCREW-HH

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$3.99

$

In Stock, only 2 left!

0

10

Lawn-Boy 606733

WING SCREW LAWRE

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$8.99

$

In Stock, Qty 6

0

11

Lawn-Boy 611014

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

12

Lawn-Boy 609891

See Supercession: 700138
(Superseded to 700138)

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

13

Lawn-Boy 608161

CLAMP ROD KMC

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$10.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 602315

LOCKNUT E

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

15

Lawn-Boy 608160

ROD T/SHIELD ADV WIRE

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

16

Lawn-Boy 608311

NUT-LOCK F

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$2.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 603773

LOCKNUT

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$2.99

$

In Stock, only 2 left!

0

18

Lawn-Boy 608834

WASHER

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$15.99

$

In Stock, only 2 left!

0

19

Lawn-Boy 608833

See Supercession: 608833-03
(Superseded to 608833-03)

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$22.99

$

In Stock, only 2 left!

0

20

Lawn-Boy 153444

SPRING ARM ASM

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

21

Lawn-Boy 610646

BOLT

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$6.49

$

Usually ships in 3-6 days

0

22

Lawn-Boy 603620

WASHER WROUGHT

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$5.49

$

In Stock, Qty 20+

0

23

Lawn-Boy 605225

Felt Washer

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Currently unavailable

24

Lawn-Boy 683179

WHEEL&TIRE 8" TRI

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$104.99

$

In Stock, only 2 left!

0

25

Lawn-Boy 605256

SPACER

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

26

Lawn-Boy 603441

BOLT WHEEL

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$7.99

$

In Stock, Qty 20+

0

27

Lawn-Boy 684135

See Supercession: 105-8618
(Superseded to 105-8618)

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$51.99

$

Usually ships in 3-6 days

0

28

Lawn-Boy 682876

MUFFLER COVER F

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$143.99

$

Usually ships in 3-6 days

0

29

Lawn-Boy 609786

SUPPORT F

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$20.99

$

In Stock, only 2 left!

0

30

Lawn-Boy 609471

SCREW

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$4.99

$

In Stock, Qty 14

0

31

Lawn-Boy 677525

PLATE AND COLLAR ASM

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$23.99

$

In Stock, only 1 left!

0

32

Lawn-Boy 682909

See Supercession: 612079-03
(Superseded to 612079-03)

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$33.99

$

Usually ships in 3-6 days

0

33

Lawn-Boy 603164

NUT-BLADE
(Superseded to 121-3611)

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$5.99

$

Usually ships in 3-6 days

0

34

Lawn-Boy 608418

See Supercession: 46-6811
(Superseded to 46-6811)

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$3.49

$

In Stock, only 3 left!

0

35

Lawn-Boy 608159

TOE BAR 19"

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

36

Lawn-Boy 684160

See Supercession: 684521
(Superseded to 684521)

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

37

Lawn-Boy 610640

See Supercession: 43-8480
(Superseded to 43-8480)

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$6.49

$

In Stock, Qty 6

0

38

Lawn-Boy 604604

See Supercession: 94-1610
(Superseded to 94-1610)

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$0.99

$

In Stock, Qty 13

0

39

Lawn-Boy 607809

See Supercession: 614677
(Superseded to 614677)

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$3.99

$

In Stock, Qty 16

0

40

Lawn-Boy 607560

See Supercession: 95-7052
(Superseded to 95-7052)

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$30.99

$

In Stock, only 1 left!

0

41

Lawn-Boy 612428

SCREW SEMS SM

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$2.49

$

In Stock, only 4 left!

0

42

Lawn-Boy 613039

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

43

Lawn-Boy 611395

SCREW - SELF TAPPING
(Superseded to 611543)

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$3.99

$

In Stock, Qty 6

0

Lawn-Boy 146014

WASHER

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$

$

Not available

Lawn-Boy 146015

WASHER

Note: IMPORTANT NOTE: Replacement parts may not be available in matching colors.

$3.49

$

In Stock, only 1 left!

0
