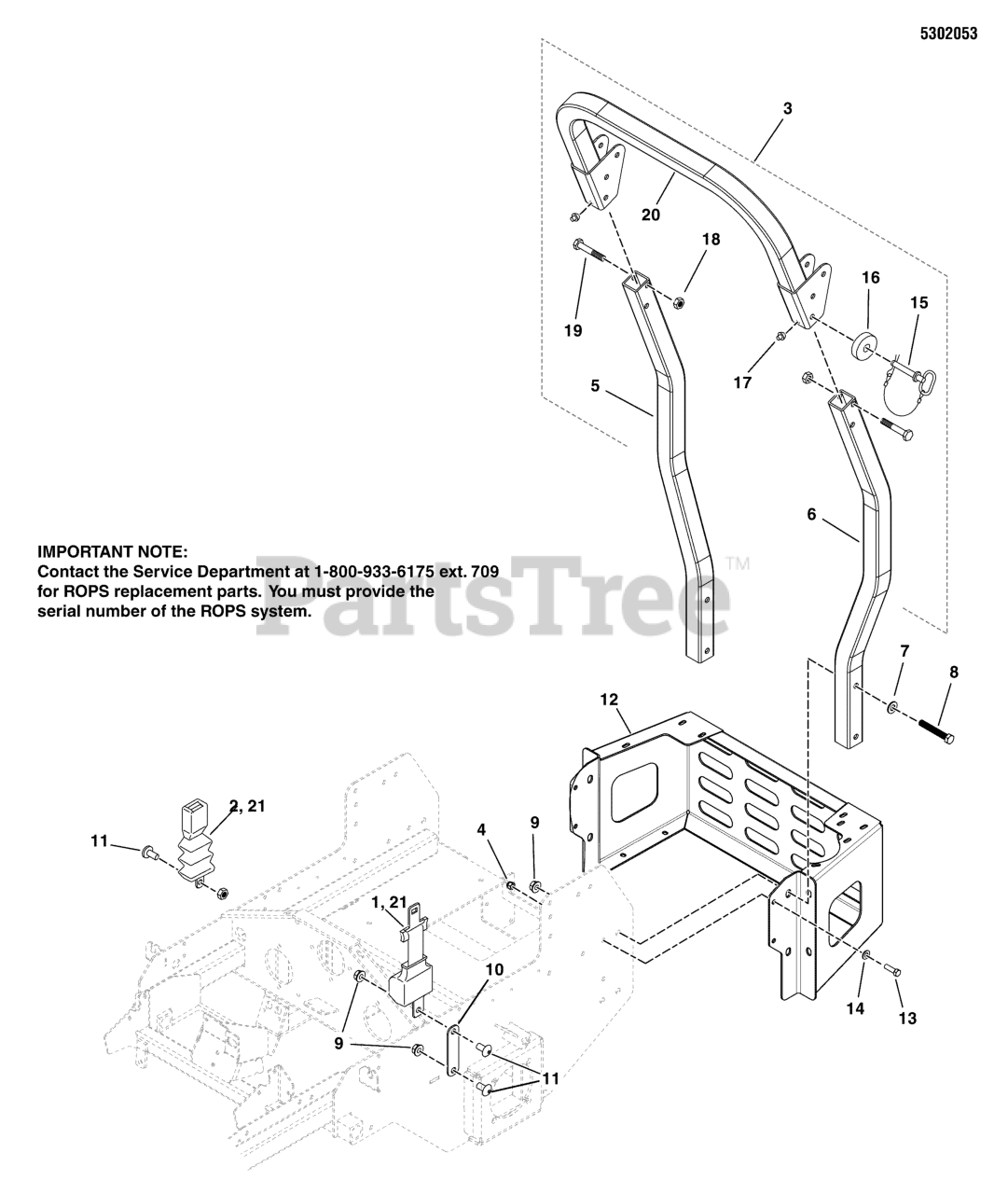

S 175X (5900938) - Snapper Pro S175X Series 61" Zero-Turn Mower, 24hp Yanmar Rear Bumper, Roll Bar & Seat Belt Group Parts Diagram

S175X Series 61" Zero-Turn Mower, 24hp Yanmar

Rear Bumper, Roll Bar & Seat Belt Group Parts Diagram

  • Title
1

ORDER P/N 5105137 (CONTAINS BOTH SEAT BELT RETRACTOR + SUPER SLEEVE BUCKLE)

Note: (S/N: 2014615918 AND BELOW)

$

$

Not available

2

Snapper Pro 5105137

SEAT BELT ASSM, RETRACTOR + SUP SLEEVE
(Superseded to 5105137YP)

Note: (S/N: 2014615918 AND BELOW)

$130.99

$

Usually ships in 2-12 days

0

3

ROPS (Call 1-800-933-6175 ext. 2193 if replacing a ROPS)

$

$

Not available

4

Snapper Pro 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

5

ROLL BAR POST, RH

$

$

Not available

6

ROLL BAR POST, LH

$

$

Not available

7

Snapper Pro 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 12

0

8

Snapper Pro 5025017X26

BOLT, 1/2-13 X 3-1/4, HEX HD, GD5, CZ (SV)
(Superseded to 5025017X26SM)

$5.49

$

In Stock, only 2 left!

0

9

Snapper Pro 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

10

Snapper Pro 5401044A

EXTENSION, SEAT BELT - BLK
(Superseded to 5401044AYP)

$6.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5100267

SCREW, 1/2-13 X 1.00, SHCS
(Superseded to 5100267SM)

$3.49

$

Usually ships in 2-12 days

0

12

Snapper Pro 5406316D

WELD, BUMPER, S175X - RED

$

$

Currently unavailable

13

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

14

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

15

Snapper Pro 5100079

PIN, HINGE W/ LANYARD
(Superseded to 5100079SM)

$35.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 5100545

WASHER, EPDM FOAM, 1/2" ID

$

$

Currently unavailable

17

Snapper Pro 5100383

BUMPER, ROPS
(Superseded to 5100383SM)

$3.99

$

In Stock, only 2 left!

0

18

NUT

$

$

Not available

19

BOLT

$

$

Not available

20

ROLL BAR TOP LOOP

$

$

Not available

21

Snapper Pro 5100139

SEAT BELT, RETRACTING - ASSM
(Superseded to 5100139SM)

Note: (S/N: 2014615919 AND ABOVE)

$103.99

$

Usually ships in 2-12 days

0
