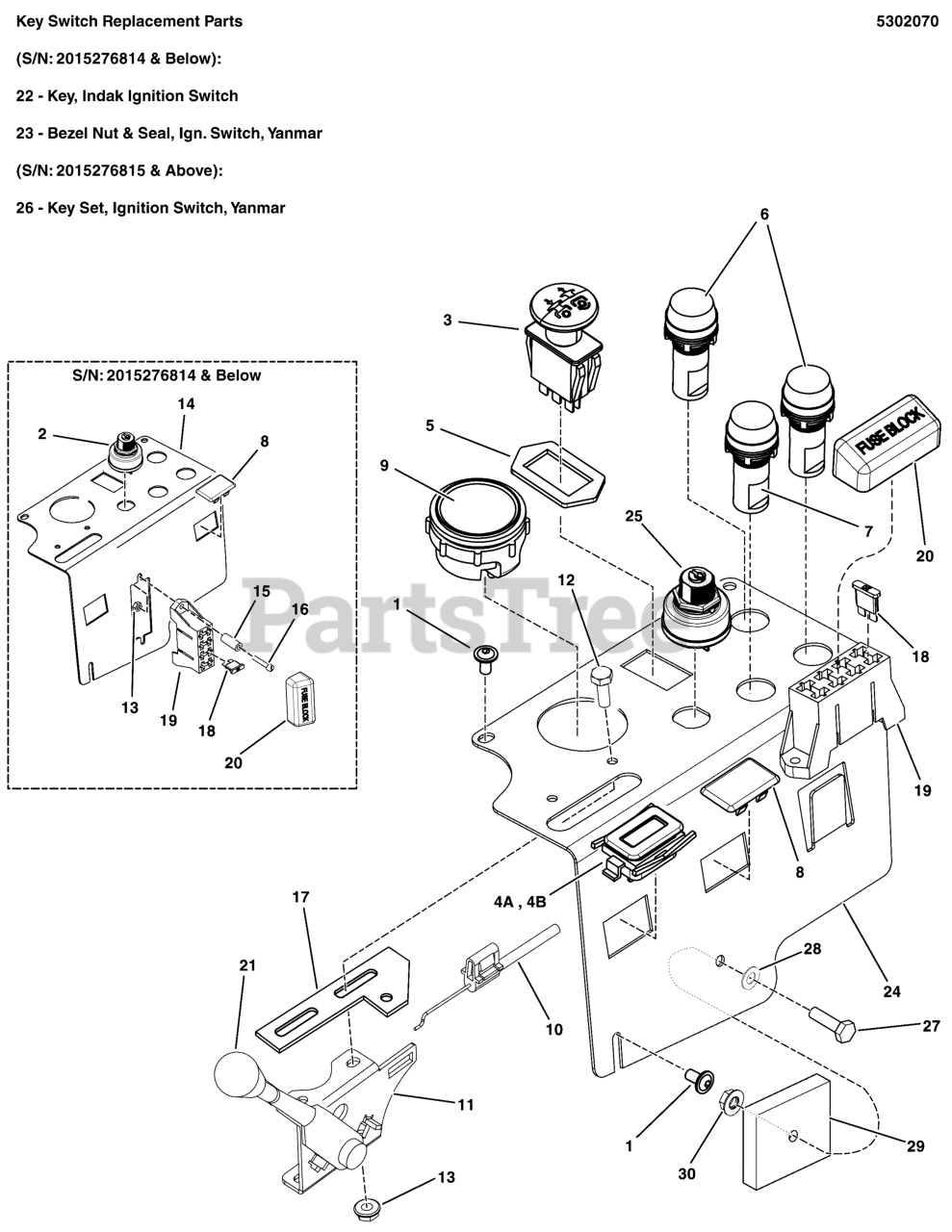

S 175X (5900938) - Snapper Pro S175X Series 61" Zero-Turn Mower, 24hp Yanmar Instrument & Control Panel Parts Diagram

S175X Series 61" Zero-Turn Mower, 24hp Yanmar

Instrument & Control Panel Parts Diagram

  • Title

1

Snapper Pro 5025299X4

SCREW, 1/4-20 X 1/2 ALLEN BH
(Superseded to 5106469)

$2.49

$

In Stock, Qty 18

0

2

Snapper Pro 5100582

SWITCH, IGNITION, YANMAR

Note: (S/N: 2015276814 & Below)

$80.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5022180

SWITCH, BLADE ENGAGEMENT
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

4a

* HOUR METER, ASSEMBLY

Note: (S/N: 2015551938 & Above)

$

$

Not available

4b

Snapper Pro 5102417

HOUR METER

Note: (S/N: 2015551937 & Below)

$64.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 5022222

RING, SWITCH RETAINER
(Superseded to 5022222SM)

$4.49

$

In Stock, only 1 left!

0

6

Snapper Pro 5023452

LIGHT, WARNING, 22MM RED
(Superseded to 5023452FS)

$48.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 5023451

LIGHT, GLOW PLUG, 22MM AMBER
(Superseded to 5023451FS)

$48.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 1709188

PLUG, .820X1.44 HOLE, BLACK PLASTIC
(Superseded to 1709188SM)

$4.99

$

In Stock, only 1 left!

0

9

Snapper Pro 5023393

GAUGE, WATER TEMPERATURE
(Superseded to 5023393YP)

$72.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5101072

CABLE, THROTTLE, 52"
(Superseded to 5101072FS)

$27.99

$

In Stock, only 1 left!

0

11

Snapper Pro 5101537

LEVER, THROTTLE CONTROL, HEAVY-DUTY
(Superseded to 5101537SM)

$48.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5025179X6

SCREW, #10-24 X 3/4 ROUND PHILLIPS
(Superseded to 5025179X6SM)

$3.99

$

In Stock, only 1 left!

0

13

Snapper Pro 5025271

NUT, #10-24 HEX NYLON LOCK
(Superseded to 5025271FS)

Note: (S/N: 2015276814 & Below)

$3.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5406122A

PANEL, CONTROL - BLK

Note: (S/N: 2015276814 & Below)

$

$

Currently unavailable

15

Snapper Pro 5102275

SPACER, .20 X .38 X 1.75, YZ

Note: (S/N: 2015276814 & Below)

$7.49

$

Usually ships in 2-12 days

0

16

Snapper Pro 5025270X20

SCREW, 10-24 X 2-1/2, RD HD PHILLIPS, CZ

Note: (S/N: 2015276814 & Below)

$

$

Currently unavailable

17

PLATE, THROTTLE STOP

Note: (EXPORT MODELS)

$

$

Not available

18

Snapper Pro 5021603

FUSE, ATO, 20 AMP
(Superseded to 5021603SM)

$4.99

$

In Stock, only 2 left!

0

19

Snapper Pro 5021518

FUSE BLOCK
(Superseded to 5021518SM)

$11.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 5022805

COVER, VINYL FUSEBLOCK
(Superseded to 5022805SM)

$6.49

$

Usually ships in 2-12 days

0

21

Snapper Pro 5046360X1

THROTTLE CONTROL HANDLE/KNOB
(Superseded to 5046360X1SM)

$10.99

$

In Stock, only 1 left!

0

22

Snapper Pro 5100582X2

KEY SET, INDAK IGNITION SWITCH

Note: (SV)(S/N: 2015276814 & Below)

$8.99

$

Usually ships in 2-12 days

0

23

Snapper Pro 5102400

BEZEL NUT & SEAL, IGN.

Note: (S/N: 2015276814 & Below)

$31.99

$

Usually ships in 2-12 days

0

24

Snapper Pro 5408830A

CONTROL PANEL - BLK

Note: (S/N: 2015276815 & Above)

$

$

Currently unavailable

25

Snapper Pro 5102962

IGNITION SWITCH, SEALED
(Superseded to 5102962FS)

Note: (S/N: 2015276815 & Above)

$101.99

$

Usually ships in 2-12 days

0

26

Snapper Pro 5102962X1

KEY SET, Ignition Switch, 3 position (SV)

Note: (SV)(S/N: 2015276815 & Above)

$36.99

$

Usually ships in 2-12 days

0

27

Snapper Pro 5025010X12

BOLT, 1/4-20 X 1-1/2, GD5
(Superseded to 5025010X12SM)

Note: (S/N: 2015551938 & Above)

$2.99

$

Usually ships in 2-12 days

0

28

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

Note: (S/N: 2015551938 & Above)

$4.49

$

Usually ships in 2-12 days

0

29

Snapper Pro 5103922

MODULE,DCK SHUT OFF W/DELY,175/2500/5100
(Superseded to 5103922FS)

Note: (S/N: 2015551938 & Above)

$195.99

$

Usually ships in 2-12 days

0

30

Snapper Pro 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

Note: (S/N: 2015551938 & Above)

$3.99

$

In Stock, Qty 20+

0
