S 175X (5900938) - Snapper Pro S175X Series 61" Zero-Turn Mower, 24hp Yanmar Hood & Shield Group Parts Diagram

S175X Series 61" Zero-Turn Mower, 24hp Yanmar

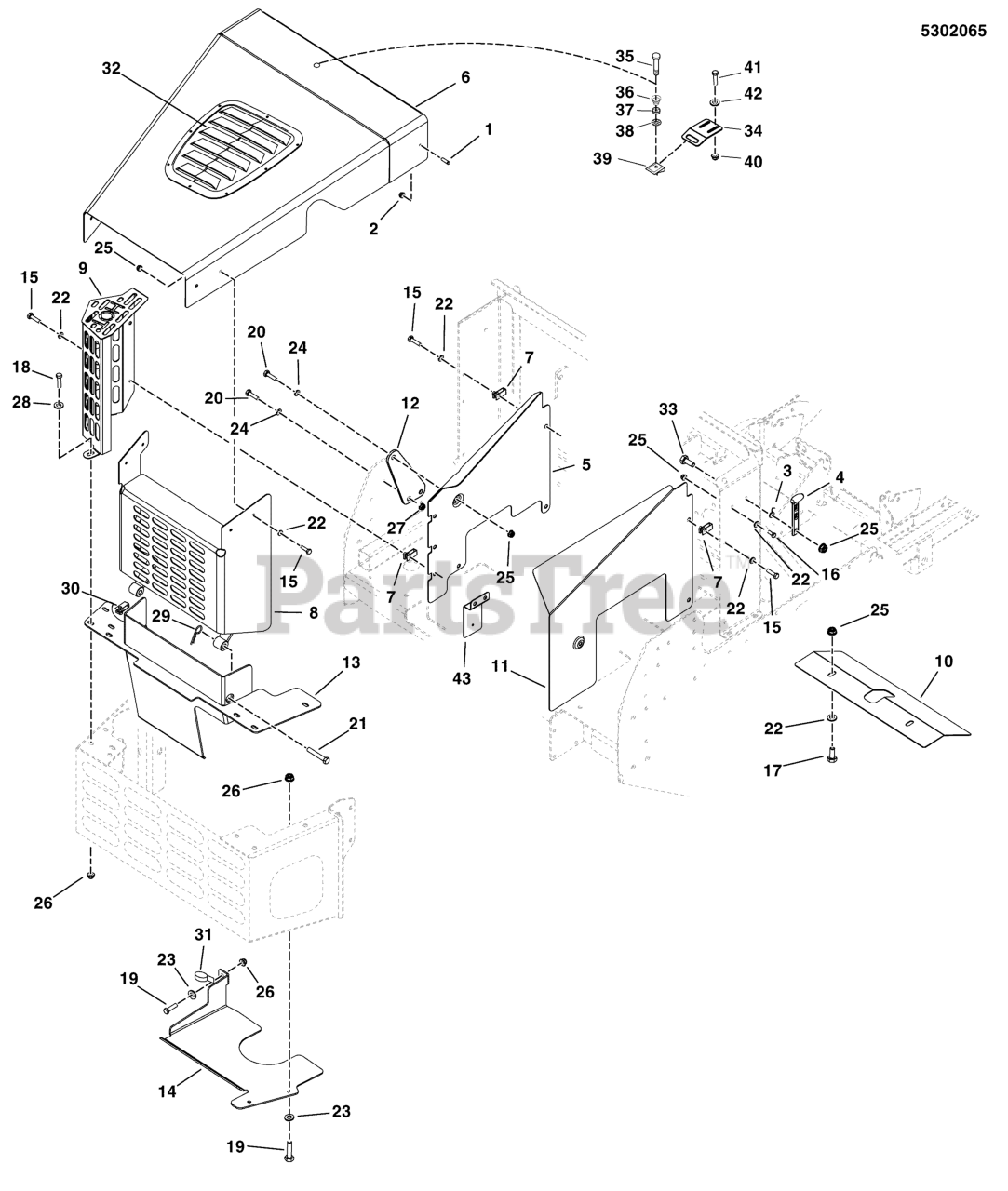

Hood & Shield Group Parts Diagram

  • Title

1

Snapper Pro 1726044

BINDING POST #8-32X.500 INT THR BLK
(Superseded to 1726044SM)

$3.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 2860707

SCREW-HEX SERR FLNG LK #8-32X0.375 YEL
(Superseded to 2860707SM)

$3.49

$

In Stock, only 2 left!

0

3

Snapper Pro 1723168

HOOK-.125DIA WIRE GR CAT STRAP YELLOW
(Superseded to 1723168SM)

$9.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 2171600

STRAP,HOOD,BLACK RUBBER
(Superseded to 2171600FS)

$7.49

$

Usually ships in 2-12 days

0

5

Snapper Pro 5406406D

COVER,SIDE, LH - RED

$

$

Currently unavailable

6

Snapper Pro 5404953D

WELD, HOOD - RED

Note: (Domestic 3TNM68-AFS Series Models)

$272.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5407959D

WELD, HOOD - RED

Note: (Export 3TNM68-AFS Series Models)

$

$

Currently unavailable

6

Snapper Pro 5406738D

WELD, HOOD - RED

Note: (Domestic 3TNM72-AFS Series Models)

$

$

Currently unavailable

6

Snapper Pro 5407961D

WELD, HOOD, IS2500 - RED

Note: (Export 3TNM72-AFS Series Models)

$

$

Currently unavailable

7

Snapper Pro 5022665

BODY CLIP, 1/4-20 X 1/2 DEEP
(Superseded to 5022665SM)

$3.49

$

Usually ships in 2-12 days

0

8

Snapper Pro 5404961D

WELD, REAR COVER - RED

$201.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 5405002D

WELD, MUFFLER GUARD - RED

$

$

Currently unavailable

10

Snapper Pro 5404935D

PLATE, SHIELD, HYDRAULIC PUMPS - RED

$

$

Currently unavailable

11

Snapper Pro 5406378D

COVER, SIDE, RH - RED

Note: (3TNM68-AFS Series Models)

$

$

Currently unavailable

11

Snapper Pro 5406739D

COVER, SIDE, RH - RED

Note: (3TNM72-AFS Series Models - S/N: 2016680389 & Below)

$

$

Currently unavailable

11

Snapper Pro 5412199D

COVER, SIDE, RH - RED

Note: (3TNM72-AFS Series Models - S/N: 2016680390 & Above)

$

$

Currently unavailable

12

Snapper Pro 5406407D

BRACE, SIDE COVER, S175X - RED

$

$

Currently unavailable

13

Snapper Pro 5404958D

WELD, GUARD, PTO BELT - RED

$165.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5406737D

GUARD, DECK BELT

Note: (ALL 3TNM72-AFS Series & 3TNM68-AFS Series S/N: 2014881977 & Above)

$

$

Currently unavailable

14

Snapper Pro 5405020D

GUARD, DECK BELT

Note: (3TNM68-AFS Series S/N: 2014881976 & Below)

$

$

Currently unavailable

15

Snapper Pro 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

16

Snapper Pro 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, only 2 left!

0

17

Snapper Pro 5025010X10

BOLT, 1/4-20 X 1-1/4, GD5
(Superseded to 5025010X10SM)

$3.99

$

In Stock, only 4 left!

0

18

Snapper Pro 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0

19

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1 GD5
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

20

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 5

0

21

Snapper Pro 7013996

CLEVIS PIN, 3/8 X 2
(Superseded to 7013996SM)

$3.49

$

In Stock, only 1 left!

0

22

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

23

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

24

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

25

Snapper Pro 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

26

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

27

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

28

Snapper Pro 5025292

WASHER, 5/16 GD.9 FLAT
(Superseded to 5025292SM)

$3.99

$

In Stock, Qty 20+

0

29

Snapper Pro 5025211

PIN, HAIR, .0585 X 1-1/8, 1/4 EYE, YZ
(Superseded to 5025211SM)

$3.99

$

In Stock, only 1 left!

0

30

Snapper Pro 5025452

BODY CLIP, 5/16-18 -1/4 MATERIAL
(Superseded to 5025452YP)

$5.49

$

Usually ships in 2-12 days

0

31

Snapper Pro 5023173

CLAMP, HOSE, 1.000 DIA.
(Superseded to 5023173SM)

$3.99

$

Usually ships in 2-12 days

0

32

Snapper Pro 5101768

SCOOP, HOOD, OUTFRONT MOWER
(Superseded to 5101768YP)

$142.99

$

Usually ships in 2-12 days

0

33

Snapper Pro 80003518

BOLT,1/4-20X0.750,GR5,STD NECK,SQ,ZC/CL
(Superseded to 703575)

$3.99

$

In Stock, only 1 left!

0

34

Snapper Pro 5407957D

PLATE, MOUNT, HOOD FASTENER - RED

Note: (EXPORT MODELS)

$

$

Currently unavailable

35

Snapper Pro 5025572

DZUS, 1/4 TURN FASTENER, D8X29MM

Note: (EXPORT MODELS)

$8.49

$

Usually ships in 2-12 days

0

36

Snapper Pro 5025573

DZUS, EJECTOR SPRING
(Superseded to 5025573FS)

Note: (EXPORT MODELS)

$2.99

$

Usually ships in 2-12 days

0

37

Snapper Pro 5025574

DZUS, CUPPED WASHER
(Superseded to 5025574FS)

Note: (EXPORT MODELS)

$3.99

$

Usually ships in 2-12 days

0

38

Snapper Pro 5025576

DZUS, RECEPTACLE, CLIP-ON, D8
(Superseded to 5025576FS)

Note: (EXPORT MODELS)

$6.99

$

Usually ships in 2-12 days

0

39

Snapper Pro 5025577

DZUS, RETAINER, PUSH-ON, SS
(Superseded to 5025577FS)

Note: (EXPORT MODELS)

$2.99

$

Usually ships in 2-12 days

0

40

Snapper Pro 5025271

NUT, #10-24 HEX NYLON LOCK
(Superseded to 5025271FS)

Note: (EXPORT MODELS)

$3.99

$

Usually ships in 2-12 days

0

41

Snapper Pro 5025179X6

SCREW, #10-24 X 3/4 ROUND PHILLIPS
(Superseded to 5025179X6SM)

Note: (EXPORT MODELS)

$3.99

$

In Stock, only 1 left!

0

42

Snapper Pro 5023499

WASHER, #10 SAE
(Superseded to 5023499SM)

Note: (EXPORT MODELS)

$3.49

$

Usually ships in 2-12 days

0

43

Snapper Pro 5408836A

MOUNT, MAXI FUSE

$

$

Currently unavailable
