S 175X (5900938) - Snapper Pro S175X Series 61" Zero-Turn Mower, 24hp Yanmar Fuel Tank & Mount Group Parts Diagram

S175X Series 61" Zero-Turn Mower, 24hp Yanmar

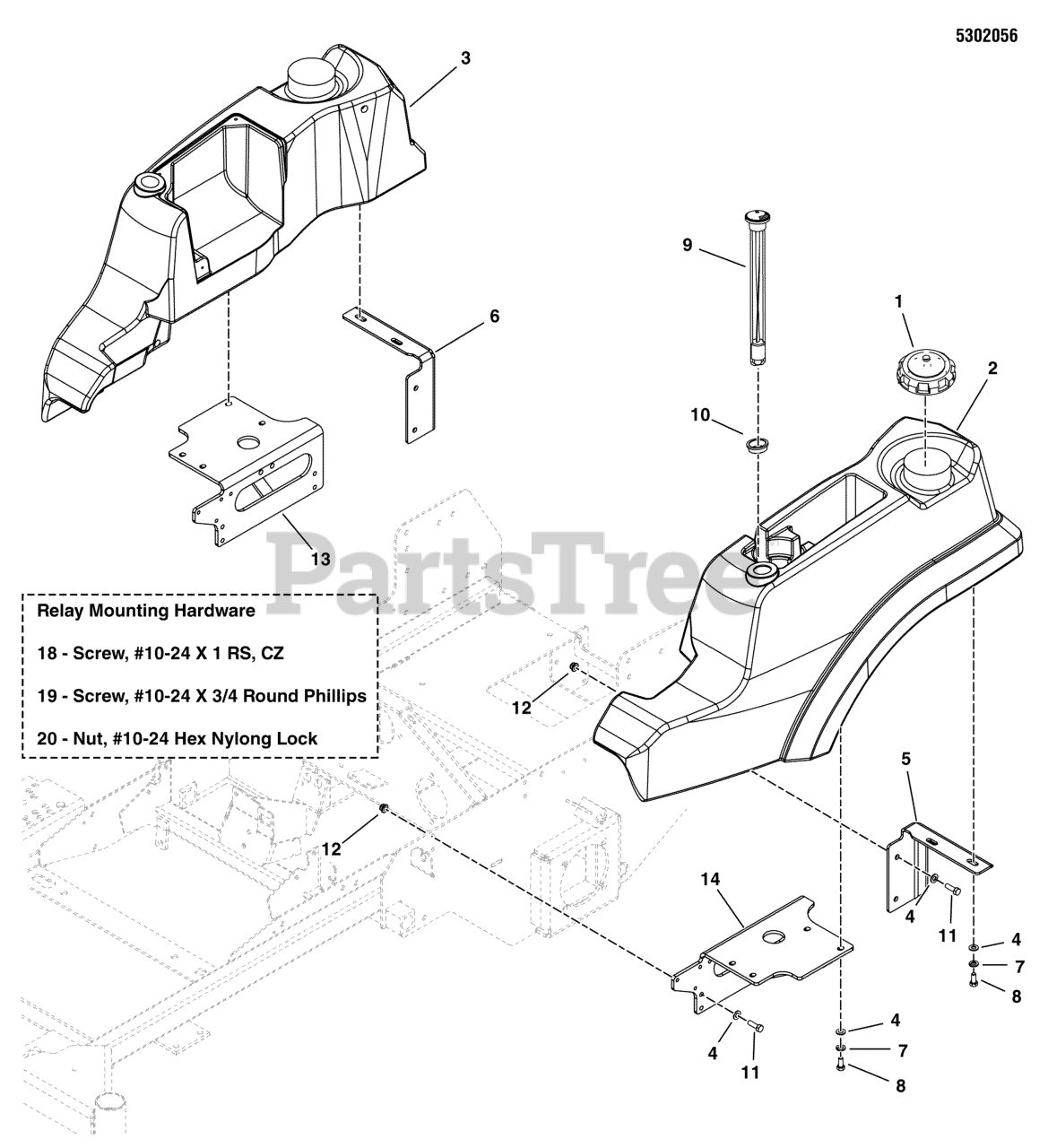

Fuel Tank & Mount Group Parts Diagram

  • Title
1

Snapper Pro 5104414

FUEL CAP, 3.5", NON VENTED, DIESEL (GRN)
(Superseded to 5104414FS)

$29.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5103957

TANK, FUEL, LH, S175X

$397.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5103958

TANK, FUEL, RH, S175X

$290.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

5

Snapper Pro 5406343D

WELD, TANK MOUNT, REAR, LH - RED

$

$

Currently unavailable

6

Snapper Pro 5406335D

WELD, TANK MOUNT, REAR, RH - RED

$

$

Currently unavailable

7

Snapper Pro 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

In Stock, only 2 left!

0

8

Snapper Pro 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 20+

0

9

Snapper Pro 5022917

GAUGE, FUEL, 12
(Superseded to 5022917FS)

$48.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5022917X1

GROMMET, FUEL GAUGE
(Superseded to 5022917X1SM)

$6.99

$

In Stock, only 2 left!

0

11

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 16

0

12

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

13

Snapper Pro 5406331D

WELD, MOUNT, TANK, RH - RED

$

$

Currently unavailable

14

Snapper Pro 5406329D

WELD, MOUNT, TANK, LH - RED

$

$

Currently unavailable

15

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

16

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

17

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

18

Snapper Pro 5025270

SCREW, #10-24 X 1 RS, CZ
(Superseded to 5025270SM)

$3.49

$

Usually ships in 2-12 days

0

19

Snapper Pro 5025179X6

SCREW, #10-24 X 3/4 ROUND PHILLIPS
(Superseded to 5025179X6SM)

$3.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 5025271

NUT, #10-24 HEX NYLON LOCK
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0
