S 175X (5900922) - Snapper Pro S175X Series 61" Walk-Behind Mower, 24hp Yanmar, Rear-Discharge 61" Mower Deck - Rollers & Casters Parts Diagram

S175X Series 61" Walk-Behind Mower, 24hp Yanmar, Rear-Discharge

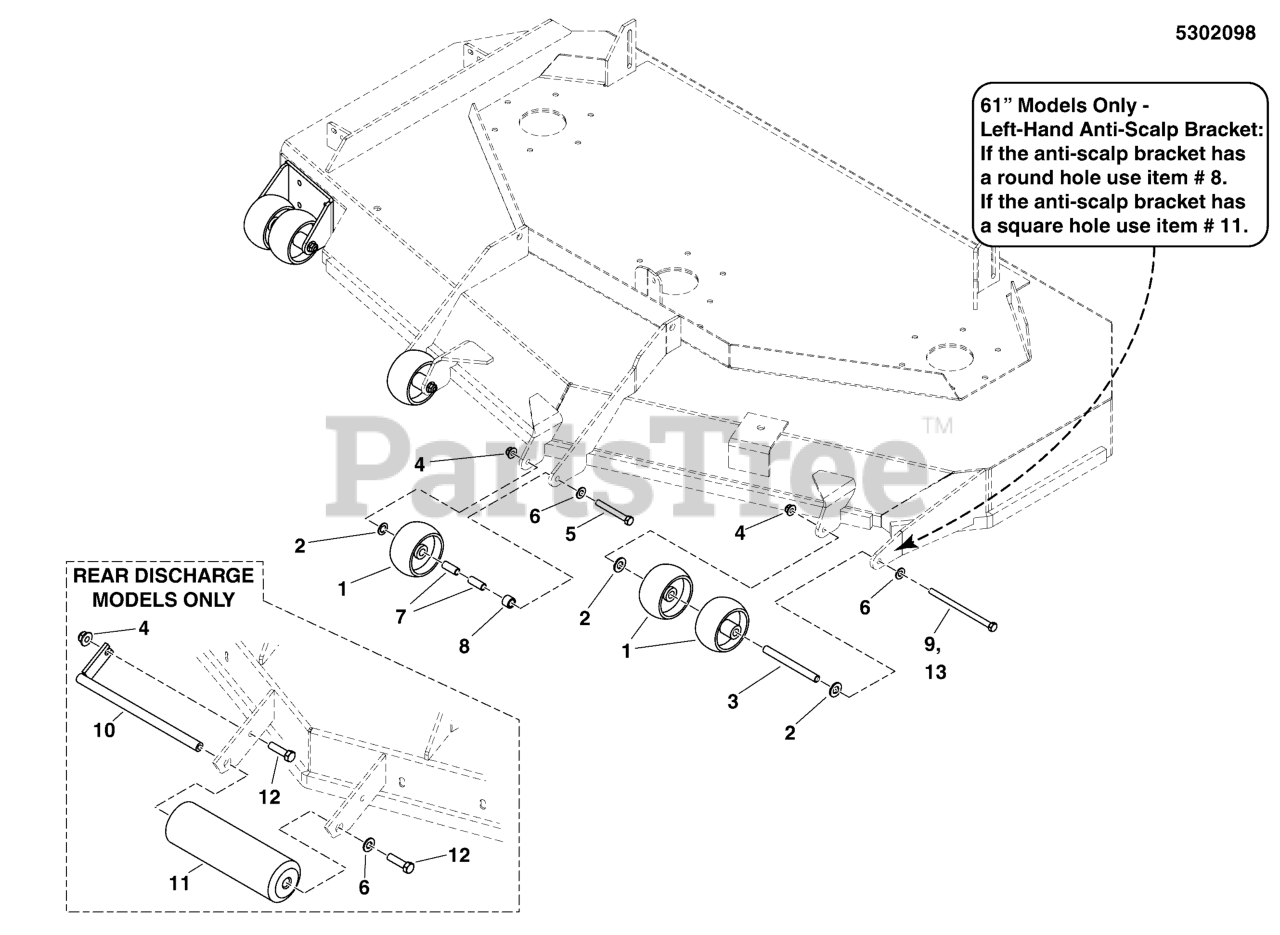

61" Mower Deck - Rollers & Casters Parts Diagram

  • Title

1

Snapper Pro 1714760

GAUGE WHEEL
(Superseded to 1714760SM)

$6.49

$

In Stock, Qty 20+

0

2

Snapper Pro 5025440

WASHER, 1/2" GD9 YZ
(Superseded to 5025440SM)

$4.49

$

In Stock, only 1 left!

0

3

Snapper Pro 5046586

SPACER, .38 X .50 X 5.06
(Superseded to 5046586SM)

$12.99

$

In Stock, Qty 20+

0

4

Snapper Pro 5025100

NUT, 3/8-16 HEX SIDE LOCK
(Superseded to 5025100SM)

$3.49

$

In Stock, Qty 20+

0

5

Snapper Pro 5025013X24

BOLT, 3/8-16 X 3" GD5 CZ
(Superseded to 5025013X24SM)

$3.99

$

In Stock, only 1 left!

0

6

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

7

Snapper Pro 5041931

SPACER, .38 X .50 X 1.25, CZ
(Superseded to 5041931SM)

$5.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 5047027

SPACER, .51 X .75 X .56
(Superseded to 5047027SM)

$5.49

$

In Stock, Qty 20+

0

9

Snapper Pro 5025013X48

BOLT, 3/8-16 X 6" GD5 CZ
(Superseded to 5025013X48SM)

$5.99

$

In Stock, Qty 20+

0

10

Snapper Pro 5041655A

USE 5105755 - WELD, BRKT,ROLLER PIN,BLK
(Superseded to 5105755)

Note: (REAR DISCHARGE MODELS ONLY)

$46.99

$

In Stock, only 2 left!

0

11

Snapper Pro 5020785

ROLLER, DECK
(Superseded to 5020785SM)

Note: (REAR DISCHARGE MODELS ONLY)

$29.99

$

In Stock, Qty 20+

0

12

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

Note: (REAR DISCHARGE MODELS ONLY)

$3.99

$

In Stock, Qty 6

0

13

Snapper Pro 5025146X48

BOLT, CARRIAGE, 3/8-16X6, GD5, YZ
(Superseded to 5025146X48YP)

$5.99

$

In Stock, Qty 11

0
