S 175X (5900922) - Snapper Pro S175X Series 61" Walk-Behind Mower, 24hp Yanmar, Rear-Discharge 61" Mower Deck - Housing, Covers, Spindles & Blades Rear Discharge Parts Diagram

S175X Series 61" Walk-Behind Mower, 24hp Yanmar, Rear-Discharge

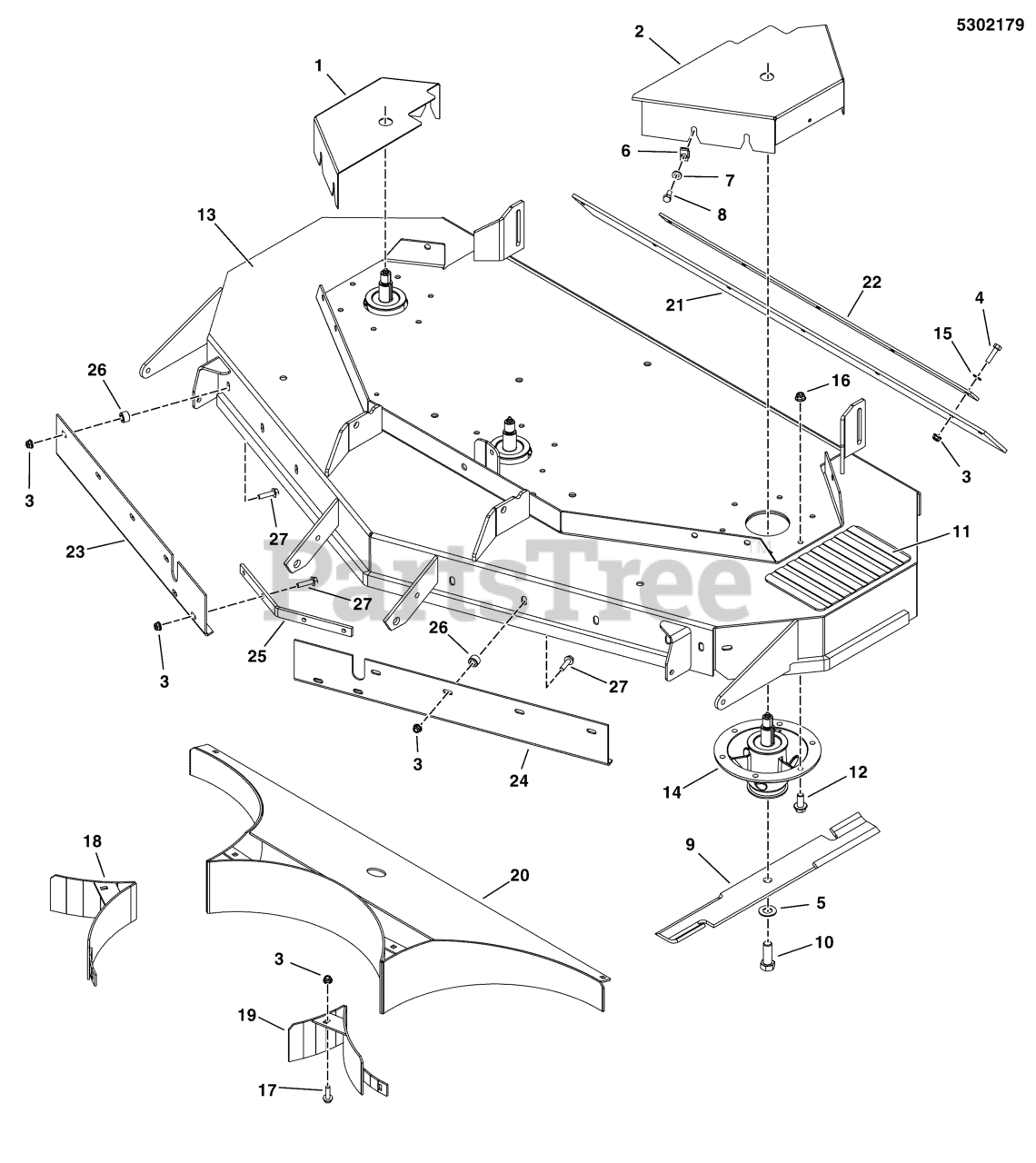

61" Mower Deck - Housing, Covers, Spindles & Blades Rear Discharge Parts Diagram

  • Title

1

Snapper Pro 5406909D

GUARD, 61", RH - RED

$

$

Currently unavailable

2

Snapper Pro 5405484D

GUARD, 61 - LH - RED
(Superseded to 5405484DYP)

$60.99

$

In Stock, only 1 left!

0

3

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

4

Snapper Pro 5025011X10

BOLT, 5/16-18 X 1-1/4 GD5 YZ
(Superseded to 5025055X10YP)

$3.49

$

In Stock, only 2 left!

0

5

Snapper Pro 5025477

WASHER, 5/8 GRADE 8, YZ
(Superseded to 5025477SM)

$3.99

$

In Stock, Qty 12

0

6

Snapper Pro 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

7

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

8

Snapper Pro 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

9b

Snapper Pro 5101755S

BLADE, 21" (SET OF 3)

Note: (S/N: 2015251379 & Above)

$

$

Not available

9a

Snapper Pro 5020842

BLADE, 21
(Superseded to 5020842ASM)

Note: (S/N: 2015251378 & Below)

$28.99

$

In Stock, only 3 left!

0

10

Snapper Pro 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

$3.49

$

Usually ships in 2-12 days

0

11

Snapper Pro 5101005

SAFETY WALK, 9.75 X 6.00
(Superseded to 5101005SM)

$15.99

$

In Stock, only 1 left!

0

12

Snapper Pro 5025390X8

BOLT, 3/8-16 X 1, FLANGE, GD 5, CZ
(Superseded to 5025390X8FS)

$3.49

$

Usually ships in 2-12 days

0

13

Snapper Pro 5600424

DECK SHELL W/ DECALS, S175X 61RD CE

$

$

Currently unavailable

14

Snapper Pro 5100993

SPINDLE ASSM, CAST IRON 8.0-6 BOLT
(Superseded to 5100993SM)

$219.99

$

In Stock, Qty 15

0

15

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

16

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

17

Snapper Pro 5025145X8

BOLT, 5/16-18 X 1, CARRIAGE
(Superseded to 5025145X8SM)

$3.99

$

In Stock, Qty 9

0

18

Snapper Pro 5406735A

WELD, FRONT BAFFLE, 61 RD, RH - BLK

$91.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 5406751A

WELD, FRONT BAFFLE, 61 RD, LH - BLK

$88.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 5406749D

WELD, REAR BAFFLE, 61 RD

$

$

Currently unavailable

21

Snapper Pro 5102640

FLAP, STRIPER, 61, RD

$74.99

$

Usually ships in 2-12 days

0

22

Snapper Pro 5406894D

PLATE, SUPPORT, 61

$

$

Currently unavailable

23

Snapper Pro 5061411D

BAFFLE, BLOWOUT, RH

$

$

Currently unavailable

24

Snapper Pro 5061412D

BAFFLE, BLOWOUT, LH

$

$

Currently unavailable

25

Snapper Pro 5061413A

BAFFLE, REINFORCEMENT - BLK

$27.99

$

Usually ships in 2-12 days

0

26

Snapper Pro 5047408

SPACER, .39 X .75 X .50, CZ

$

$

Currently unavailable

27

Snapper Pro 5023156

BOLT, 5/16-18 X 1 1/4 FLANGE
(Superseded to 5023156SM)

$3.99

$

In Stock, only 1 left!

0
